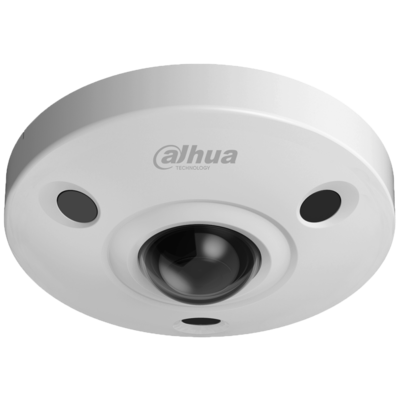

N68BR4


Features

  • 1/1.8-in. 6 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple-stream Encoding
  • H.265/H.264 Dual Codec
  • 6 MP at 30 fps Maximum Resolution
  • Multiple Dewarp Modes
  • Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Smart detection
  • Intelligent Video System Analytics
  • Maximum IR Distance up to 10 m (33 ft)
  • IP67 Ingress Protection, IK10 Vandal Resistance
  • Micro SD Memory and PoE

Firmware

Firmware Update Instructions

Firmware Update Download

Body Style with Compatible Accessories

Specifications

Camera
Image Sensor 1/1.8-in. 6 MP STARVIS™ CMOS
Total Sensor Pixels 3072(H) x 2048(V)
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s  to 1/100,000 s
Minimum Illumination Color: 0.002 lux at F2.0 (1/3 s, 30 IRE)
  Color: 0.02 lux at F2.0 (1/30 s, 30 IRE)
  0 lux at F2.0 with IR on
S/N Ratio More than 50 dB
IR Distance Up to 10 m (32.81 ft)
IR On/Off Control Auto, Manual
IR LEDs Three (3)
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 1.7 mm
Maximum Aperture F2.0
Angle of View Horizontal: 360°
Focus Control Fixed
DORI¹ Distance
Detect (8 ppf) 28 m (92 ft)
Observe (19 ppf) 11 m (36 ft)
Recognize (38 ppf) 6 m (20 ft)
Identify (76 ppf) 3 m (10 ft)
Video
Compression H.265, H.264
Streaming Capability Three (3) Streams
Resolution 6 MP (3072 x 2048), 4 MP (2048 x 2048), 3 MP (2048 x 1536), UXGA (1600 x 1200), 1.3 MP (1280 x 960), D1 (704 x 576), CIF (352×288)
Effective Maximum Resolution, based on Dewarping Mode
Dewarping Method Mount Location Resolution (H x V)
1 Panoramic Ceiling/Ground 4096 x 1024
Wall 2048 x 1024
2 Panoramic Ceiling/Ground 2048 x 2048
1 Original + 3 Regions All Locations 2048 x 2048
4 Regions All Locations 2048 x 2048
1 Region All Locations 1280 x 1024
Frame Rate
Main Stream 6 MP at 30 fps
Sub Stream 1 D1 at 30 fps
Sub Stream 2 1.3 MP at 30 fps
Bit Rate Control CBR, VBR
Bit Rate H.265: 3 Kbps to 9984 Kbps
  H.264: 8 Kbps to 16384 Kbps
Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, DWDR
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Advanced Features Smart IR, Defog
Digital Zoom 16x
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (100/1000 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast, Multicast
Maximum User Access 10 Users, 20 Users
Edge Storage NAS
  Local PC for instant recording
  Micro SD Card, maximum 128 GB
Web Viewer IE, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
Interface
Audio Interface Input: One (1) Channel
  Output: One (1) Channel
Alarm Input: Two (2) Channels (5 VDC, 5 mA)
  Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)
Electrical
Power Supply 12 VDC ±25% or PoE (802.3af, Class 0)
Power Consumption < 12 W
Environmental
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F),
  Less than 95% RH
Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F),
  Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions ø149.80 mm x 50.70 mm (ø5.90 in. x 2.0 in.)
Net Weight 0.58 kg (1.28 lb)
Gross Weight 1.0 k g (2.20 lb)
Intelligence
IVS triggers an alarm and takes a defined action for the following events:
Standard Features Tampering with the camera.
  Error writing to an onboard Micro SD card.
  Error sending or receiving data over the network.
  Unauthorized access to the camera.
Premium Features
Motion An object moves through any part of the scene.
Tripwire A target crosses a user-defined line.
Intrusion A target enters or exits a defined perimeter.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
Advanced Features
Heat Map Generates a visual representation of data.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
