DH-IPC-HDW23A0RN-ZS

float

float

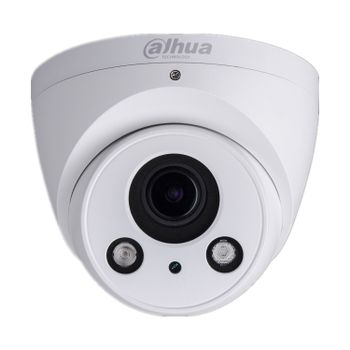

DH-IPC-HDW23A0RN-ZS DH-IPC-HDW23A0RN-ZS.jpg
Series: Lite
Image Sensor: 1/3” 3MP progressive scan CMOS
Resolution: 3MP (2048x1536)
H Field of View: 92°-28°
Min. Illumination: 0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
Day/Night: ICR
Max. IR Range: 195ft (60m)
WDR: DWDR
Compression: H.264H/MJPEG
FPS: 20fps@3MP; 30fps@1080p
Multi-Streaming: 2 Streams
IVS: -
ONVIF: 2.4
Audio In: -
Audio Out: -
Built In Microphone: -
Memory Slot: -
Alarm In: -
Alarm Out: -
IP Rating: 67
IK Rating: -
Working Temp: -30°C~+60°C, Less than 95%RH
Power: DC12V, PoE (802.3af), Max 4W
Firmware: URL

Features

  • 1/3” 3Megapixel progressive scan CMOS
  • H.264&MJPEG dual-stream encoding
  • 20fps@3M(2304×1296)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7mm~12mm motorized lens
  • Max. IR LEDs Length 60m
  • IP67, PoE

CAD Images

Compression

FOV

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 08/3/16
  • Support H.264+, Control4 access,
  • English, French, Spanish optional, English default,NTSC;

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA137PFA137
Accessories Combo 2 PFB203WPFB203W
Accessories Combo 3 PFA137PFA137 PFA150PFA150
Accessories Combo 4 PFB203WPFB203W PFA152PFA152
Accessories Combo 5 PFA137PFA137 PFA151PFA151

Reset Button

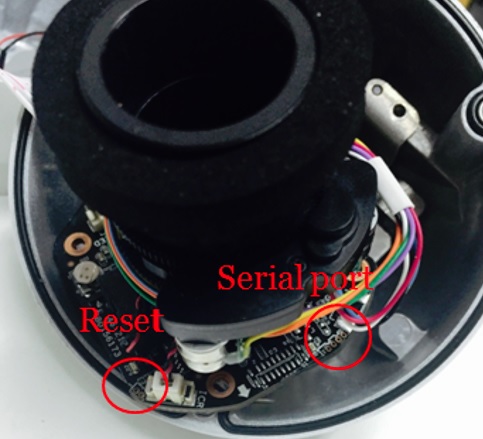

IPC HDW23A0RN ZS reset button.jpg

Specifications

Model DH-IPC-HDW23A0RN-ZS
Camera
Image Sensor 1/3” 3Megapixel progressive scan CMOS
Effective Pixels 2304(H) ´ 1296(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0. 1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 60m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm
Max Aperture F1.4
Focus Control Auto
Angle of View H: 85°~27°
Lens Type Motorized lens
Mount Type Board-in Type
Video
Compression H.264/ H.264H/ H.264B/ MJPEG
Resolution 3M(2304x1296)/1080P(1920x1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate Main Stream 3M(1~20fps),1080P/720P(1 ~ 30fps)
Sub Stream D1/CIF(1 ~ 30fps)
Bit Rate H.264: 16K ~ 10Mbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF,PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD,Max 128GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 7.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions Φ122mm x 102mm
Weight 0.55Kg
