DH-IPC-HFW21A0RN-ZS

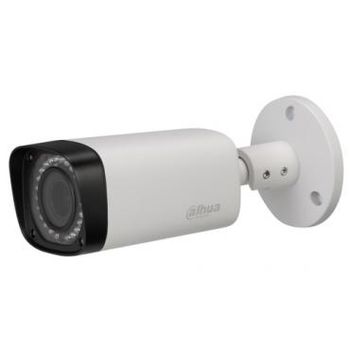

DH-IPC-HFW21A0RN-ZS HFW21A0RN.jpg
Series: Lite
Image Sensor: 1/3” 1.3MP progressive scan CMOS
Resolution: 1.3MP (1280x960)
H Field of View: 92°-28°
Min. Illumination: 0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
Day/Night: ICR
Max. IR Range: 98ft (30m)
WDR: DWDR
Compression: H.264H/MJPEG
FPS: 30fps@1.3MP
Multi-Streaming: 2 Streams
IVS: -
ONVIF: 2.4
Audio In: -
Audio Out: -
Built In Microphone: -
Memory Slot: -
Alarm In: -
Alarm Out: -
IP Rating: 67
IK Rating: 10
Working Temp: -30°C~+60°C, Less than 95%RH
Power: DC12V, PoE (802.3af), Max 4W
Firmware: URL

Features

  • 1/3" 1.3Megapixel CMOS
  • 25/30/50/60fps@720P
  • High speed, long distance real-time transmission
  • HD and SD switchable
  • OSD Menu, control over coaxial cable
  • DWDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
  • 2.7~12mm motorized lens
  • Max. IR LEDs length 30m, Smart IR
  • IP67, DC12V

Compression

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 08/3/16
  • Support H.264+, Control4 access,
  • English, French, Spanish optional, English default,NTSC;

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA122PFA122
Accessories Combo 2 PFA135PFA135
Accessories Combo 3 PFA122PFA122 PFA150PFA150
Accessories Combo 4 PFA135PFA135 PFA150PFA150
Accessories Combo 5 PFA122PFA122 PFA152PFA152
Accessories Combo 6 PFA122PFA122 PFA151PFA151
Accessories Combo 7 PFA135PFA135 PFA151PFA151


Product Diagram

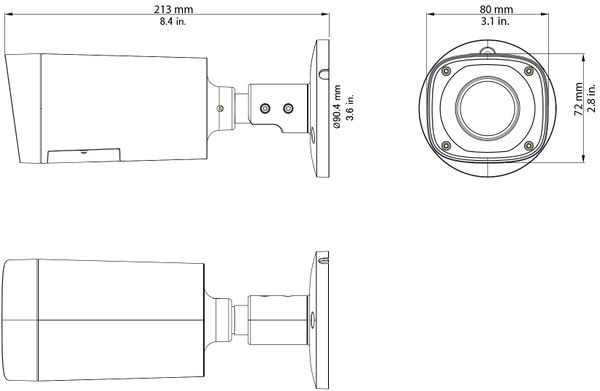

CAD IP Lite Bullet DH-IPC-HFW23A0RN-ZS.jpg

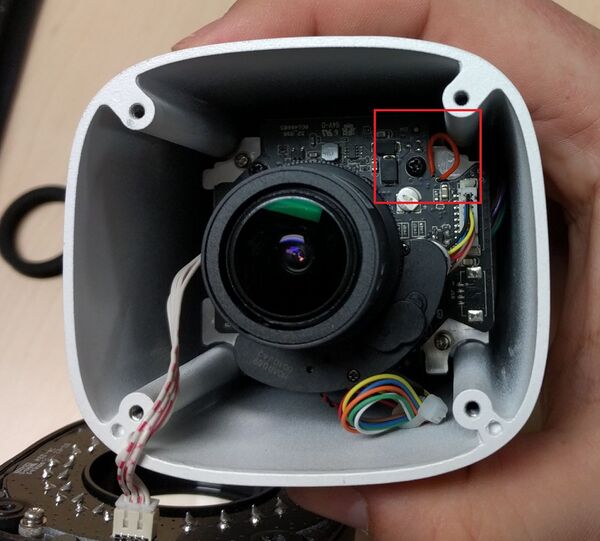

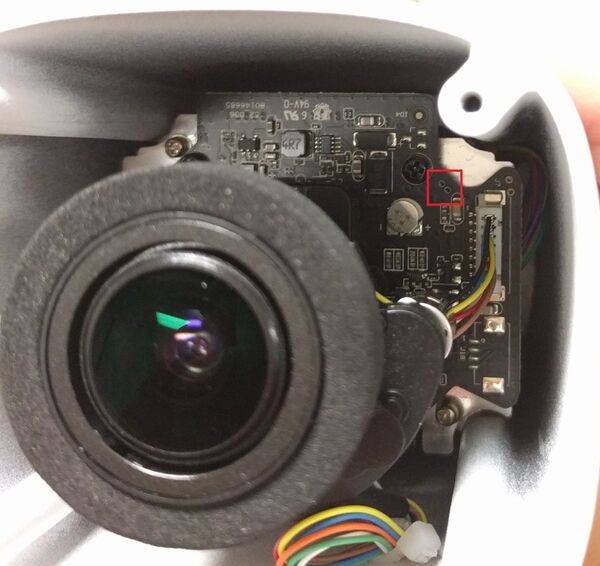

Reset Pinout

ipchfw23a0rnzsreset001.jpg ipchfw23a0rnzsreset002.jpg

Specifications

Model DH-IPC-HFW21A0RN-ZS
Camera
Image Sensor 1/3” 1.3Megapixelprogressive scan CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination 0. 01Lux/F1.4 (Color),0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm
Max Aperture F1.4
Focus Control Auto
Angle of View H: 92°~ 28°
Lens Type Motorized/ Fixed Iris
Mount Type Board-in Type
Video
Compression H.264/ H.264H/ MJPEG
Resolution 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream 1.3M/720P(1 ~ 30fps)
Sub Stream D1/CIF(1 ~ 30fps)
Bit Rate H.264H: 40~ 8192Kbps
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF,CGI,PSIA
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V,PoE (802.3af)
Power Consumption Max 8.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions 72mm×80mm×212.8mm
Weight 0.65kg
