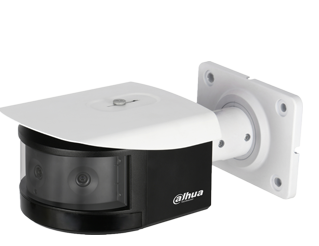

DH-IPC-PFW8601N-H-A180


Features

  • 3x2MP Sensors for a 180° Panoramic View
  • Starlight Ultra-low Light Technology
  • Dual Codec H.264 / H.265
  • True WDR
  • True Day/Night
  • Smart IR 30 m (98ft)
  • Outdoor Rated IP67
  • Vandal Resistant IK10
  • Intelligent Video System
  • Onboard Storage

Video Instructions


Compression


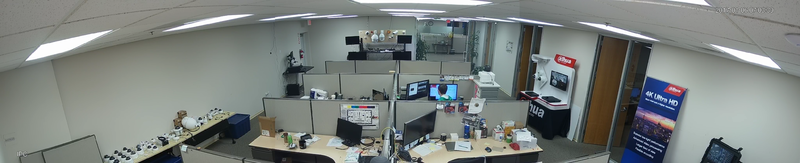

Example Images



Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions


Firmware Update Download

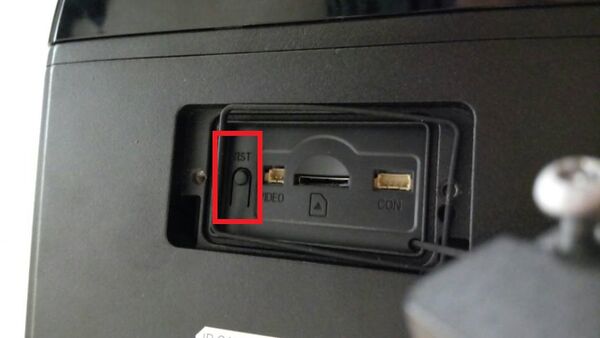

Reset Button



Specifications

Camera
Image Sensor Three (3), 1/2.8-in. 2 Megapixel Exmor R CMOS
Effective Pixels 4096 (H) x 832 (V)
RAM/ROM 512 MB / 128 MB
Scanning System Progressive
Minimum Illumination Color: 0.007 Lux at F1.8
IR: 0 Lux at F1.8 (with IR on)
S/N Ratio More than 50 dB
IR Distance Distance up to 30.0 m (98.43 ft)
IR On/Off Control Auto/ Manual
IR LEDs 8
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6 mm
Max. Aperture F1.8
Angle of View Horizontal: 180˚
Vertical: 44˚
Focus Control Fixed
Intelligent Functions
IVS Tripwire, Intrusion, Abandoned/Missing Object
Advanced Intelligent Functions Face Detection, People Counting, Heat Map, E-PTZ
Video
Compression H.264 / H.265
Streaming Capability 3 Streams
Resolution 4096 × 832, 3840 × 780, 2560 × 520, 1280 x 260, 1024 x 208
Frame Rate Main Stream: 4096 x 832 (1-25/30 fps)
Sub Stream: 1024 x 208 (1-25/30 fps)
Third Stream: 1280 x 260 (1-25/30 fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 8 Kbps - 16 Mbps
H.265: 4 Kbps - 10 Mbps
Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, WDR (120 dB)
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zones, Rectangular)
Region of Interest Off / On (4 Zones)
Smart IR Support
Digital Zoom 16x
Privacy Masking Off / On (4 Areas, Rectangular)
Audio Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (100/1000 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 20 Users
Edge Storage NAS, Local PC for instant recording, Mirco SD card, 128 GB
Web Viewer Internet Explorer, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Cerrtifications
Product Safety CE (EN 60950:2000), UL 60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
Interface
Audio Interface One (1) channel in, One (1) channel out
Alarm One (1) channel in, One (1) channel out
Electrical
Power Supply 24 VAC, PoE+ (802.3at, Class 4)
Power Consumption 24 W, maximum (with IR on)
Environmental
Operating Temperature -40° C to +60° C (-40° F to +140° F), less than 95% relative humidity
Storage Temperature -40° C to +60° C (-40° F to +140° F), less than 95% relative humidity
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 231.30 mm x 172.50 mm x 120.50 mm (11.74 in. x 6.79 in. x 4.74 in.)
Net Weight 2.60 kg (5.73 lbs)
Gross Weight 3.41 kg (7.52 lbs)
