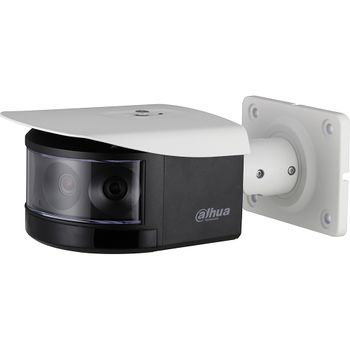

DH-IPC-PFW8800N-A180



float

Features

  • Four (4) 1/2.8-in. 2 MP Progressive Scan STARVIS™ CMOS Imagers
  • Triple-stream Encoding with Smart H.265+ Compression
  • Maximum Resolution: 4096 x 1800 at 25 fps
  • Supports 180° Panoramic View
  • Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Intelligent Video System
  • Maximum IR LED Distance 30 m (98 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • PoE+ Support

Firmware Update Instructions

Firmware Update Download

Wire Harness

Specifications

Technical Camera
  Image Sensor Four (4) 1/2.8-in. 2 MP STARVIS™ CMOS Sensors
  Effective Pixels 4096(H) x 1800(V)
  RAM/ROM 1024 MB / 128 MB
  Scanning System Progressive
  Electronic Shutter Speed Auto, Manual: 1/3 s to 1/100,000 s
  Minimum Illumination Color: 0.007 lux at F2.0 (1/3 s, 30 IRE)
    Color: 0.05 lux at F2.0 (1/30 s, 30 IRE)
    0 lux at F2.0 with IR on
  S/N Ratio More than 50 dB
  IR Distance Up to 30.0 m (98.43 ft)
  IR On/Off Control Auto, Manual
  IR LEDs Eight (8)
  Lens
  Lens Type Fixed
  Mount Type Board-in
  Focal Length 3.0 mm
  Max. Aperture F2.0
  Angle of View Horizontal: 180˚
  Vertical: 80˚
  Focus Control Fixed
  DORI Distance¹
  Detect (8 ppf) 41 m (135 ft)
  Observe (19 ppf) 16 m (53 ft)
  Recognize (38 ppf) 8 m (26 ft)
  Identify (76 ppf) 4 m (13 ft)
  Pan/Tilt/Rotation
  Range Pan: 0˚ to360˚
    Tilt: 0˚ to 90˚
    Rotation: 0˚ to 360˚
  Video
  Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  Streaming Capability Three (3) Streams
  Resolution 4096 x 1800, 3840 x 1680, 2880 x 1264,
    1920 x 832, 1280 x 560, 1024 x 452
  Frame Rate Main Stream: 4096 x 1800 at 25 fps
    Sub Stream 1: 1024 x 452 at 30 fps
    Sub Stream 2: 1920 x 832 at 30 fps
  Bit Rate Control CBR, VBR
  Bit Rate H.265: 9 Kbps to 9472 Kbps
    H.264: 24 Kbps to 15616 Kbps
  Day/Night Auto (ICR), Color, B/W
  BLC Mode BLC, HLC, DWDR
  White Balance Auto, Natural, Street Lamp, Outdoor, Manual
  Gain Control Auto, Manual
  Noise Reduction 3D DNR
  Motion Detection Off, On (4 Zone, Rectangle)
  Region of Interest Off, On (4 Zone)
  Smart IR Support
  Digital Zoom 16x
  Privacy Masking Off, On (4 Area, Rectangle)
  Audio
  Compression G.711a, G.711Mu, AAC, G.726
  Network
  Ethernet RJ-45 (100/1000 Base-T)
  Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
  Interoperability ONVIF, PSIA, CGI
  Streaming Method Unicast, Multicast
  Maximum User Access 10 Users / 20 Users
  Edge Storage NAS
    Local PC for instant recording
    Micro SD Card, maximum 128 GB
  Web Viewer IE, Firefox, Safari
  Management Software Smart PSS, DSS
  Mobile Operating System IOS, Android
  Certifications
  Safety EN 60950:2000
    UL60950-1
  Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
  Interface
  Video One (1) Port (use for adjustment only)
  Audio Input: One (1) Channel, RCA
    Output: One (1) Channel, RCA
  Alarm Input: Two (2) Channels (5 VDC, 5 mA)
    Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)
  Electrical
  Power Supply 24 VAC, PoE+ (802.3at Class 4)
  Power Consumption < 25.5 W
  Environmental
  Operating Conditions -40° C to +60° C (-40° F to +140° F)
    Less than 95% RH
  Storage Conditions -40° C to +60° C (-40° F to +140° F)
    Less than 95% RH
  Ingress Protection IP67
  Vandal Resistance IK10
  Construction
  Casing Metal
  Dimensions 298.30 mm x 172.50 mm x 120.50 mm
    (11.74 in. x 6.79 in. x 4.74 in.)
  Net Weight 2.70 kg (5.95 lb)
  Gross Weight 3.61 kg (7.96 lb)
  Intelligence
  IVS triggers an alarm and takes a defined action for the following events:
  Standard Features Tampering with the camera.
    Camera loses or changes focus drastically.
    Error writing to an onboard Micro SD card.
    Error sending or receiving data over the network.
    Unauthorized access to the camera.
  Premium Features
  Motion An object moves through any part of the scene.
  Tripwire A target crosses a user-defined line.
  Intrusion A target enters or exits a defined perimeter.
  Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
  Advanced Features
  Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
  People Counting Measure the number of customers, visitors or passengers in a surveillance scene.
  Heat Map Generates a visual representation of data.
  E-PTZ Scans a portion of the panoramic scene and zooms that scene for improved observation.
