DH-SD22A204TN-GNI

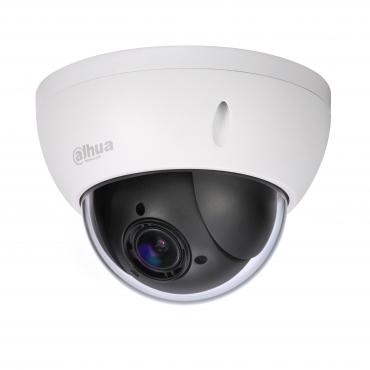

DH-SD22A204TN-GNI SD22A204TN.jpg
Series: Lite
Image Sensor: 1/2.7” 2MP CMOS
Lens: 2.7~11mm (4x Optical zoom)
Resolution: 1080P (1920 x 1080)
H Field of View: 112.5° ~ 39°
Min. Illumination: 0.05Lux/F1.6(Color), 0.005Lux/F1.6(B/W)
Max. IR Range: -
WDR: 120dB
Compression: H.264 / MJPEG
FPS: 30fps@1080P, 60fps@720P
Multi-Streaming: 3 Streams
Pan/Tilt/Zoom: 300 preset, Pan: 0° ~ 355°; Tilt: 0° ~ 90°
Preset Speed: Pan: 100° /s; Tilt: 60° /s
IVS: Tripwire,
Intrusion,
Abandoned Object Detection,
Missing Object Detection,
Face detection
ONVIF: 2.4
Audio In: -
Audio Out: -
Built In Microphone: -
Memory Slot: Micro SD, Max 128GB
Alarm In: -
Alarm Out: -
IP Rating: 66
IK Rating: 10
Working Temp: -30°C~+60°C
Power: DC12V, PoE (802.3af)
Firmware: URL

Features

  • 4x optical zoom
  • H.264 & MJPEG Triple-streams encoding
  • Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution
  • WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 100°/s pan speed
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, POE
  • Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection

Compression

FOV

Example Photos

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system: Click Here to Download

2. Apply this update to your system second: Click Here to Download



Firmware Changelog

  • Build Date: 01/28/16

Intelligent Features


Compatible Accessories

Accessories Combo 1

Accessories Combo 2

Accessories Combo 3

Accessories Combo 4

Reset Button

SD22204TN-GN reset button.jpg

Specifications

Model DH-SD22A204TN-GNI
Camera
Image Sensor 1/2.7” CMOS
Effective Pixels 1920(H) x 1080(V), 2Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio More than 50dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 2.7mm~11mm(4x Optical zoom)
Max Aperture F1.6~ F2.8
Focus Control Auto / Manual
Angle of View H: 93.5° ~ 30.24°
Close Focus Distance 100mm~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Preset  300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240)
Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 720P/ D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Intelligent Function
IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection,
Face Detection Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF ONVIF Profile S
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
General
Power Supply DC12V, POE
Power Consumption 10W
Working Environment -30ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66 & IK10
Dimensions Φ122 (mm) x 89 (mm)
Weight 0.6kg
