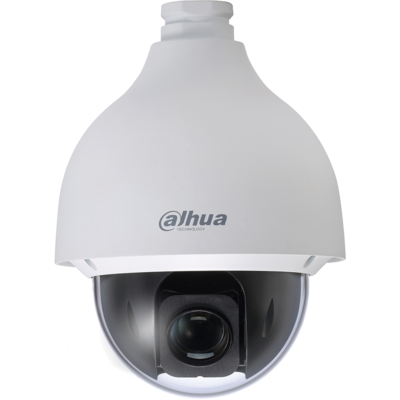

50230UNI-A



float


Features

  • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
  • Powerful 30x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 60 fps, 720p at 30/60 fps Maximum Resolution
  • Intelligent Video System (IVS) Analytics with Auto-tracking
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Designed for Extreme Temperature Environments
  • Five-year Warranty (applies to products sold through an authorized Dahua Dealer.)

Firmware

Firmware Update Instructions

Firmware Update Download

FOV

Wire Harness

Specifications

Camera
Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
Effective Pixels 1920(H) x 1080(V), 2 MP
RAM/ROM 512 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed 1/1 s to 1/300,000 s
Minimum Illumination Color: 0.005 lux at F1.6
  B/W: 0.0005 lux at F1.6
S/N Ratio More than 55 dB
Lens
Focal Length 4.5 mm to 135 mm
Max. Aperture F1.6 to F4.4
Angle of View Horizontal: 67.8° to 2.4°
Optical Zoom 30x
Focus Control Auto, Manual
Close Focus Distance 100 mm to 1000 mm
DORI Distance¹
Detect (8 ppf) 1862 m (6109 ft)
Observe (19 ppf) 744 m (2441 ft)
Recognize (38 ppf) 372 m (1220 ft)
Identify (76 ppf) 186 m (610 ft)
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
  Tilt:0° to 90°
  Auto Flip 180°
Manual Control Speed Pan: 0.1° to 350° /s
  Tilt: 0.1° to 250° /s
Preset Speed Pan: 500° /s
  Tilt: 500° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented Focal Length, Speed Adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
Protocol DH-SD
Video
Compression H.265, H.264, MJPEG
Streaming Capability Three (3) Streams
Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960),
  720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
Frame Rate Main Stream: 1080p or 720p at 60 fps; 1.3 MP at 30 fps
  Sub Stream 1: D1 or CIF at 30 fps
  Sub Stream 2: 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps
Bit Rate Control CBR, VBR
Bit Rate H.265/H.264: 448 K to 8192 Kbps
  MJPEG: 5120 K to 10240 Kbps
Day/Night Auto (ICR), Color, B/W
Backlight Compensation BLC, HLC, True WDR (120 dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction Ultra DNR (2D/3D)
Advanced Features Motion Detection, Region of Interest,
  Electronic Image Stabilization (EIS), Defog
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Audio
Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
  ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
  DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage Network Attached Storage (NAS)
  Local PC for instant recording
  Micro SD card, up to 128 GB
Web Viewer IE 10, Firefox, Safari
Management Software Smart PSS, DSS
Smart Phone IOS, Android, Windows
Certifications
CE EN 55032
  EN 55024
  EN 50130-4
UL UL60950-1 + CAN/CSA C22.2, No.60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
Interface
Video One (1) BNC
Audio Input: One (1) Channel
  Output: One (1) Channel
Alarm Input: Two (2) Channels
  Output: One (1) Channel
RS485 One (1) BNC
Electrical
Power Supply 24 VAC, 1.5 A (± 10%), PoE+ (802.3at)
Power Consumption 13 W, 23 W with heater on
Environmental
Operating Conditions -40 °C to 60° C (-40° F to 140° F), with built-in heater
  Less than 90% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 186.0 mm x 253.0 mm (7.32 in. x 9.96 in.)
Net Weight 2.50 kg (5.51 lb)
Gross Weight 4.50 kg (9.92 lb)
Intelligence
IVS triggers an alarm and takes a defined action for the following events:
Standard Features Tampering with the camera.
  Error writing to an onboard Micro SD card.
  Error sending or receiving data over the network.
  Unauthorized access to the camera.
Premium Features
Motion An object moves through any part of the scene.
Tripwire A target crosses a user-defined line.
Intrusion A target enters or exits a defined perimeter.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
Advanced Features
Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
