DH-SD59A230TN-HNI

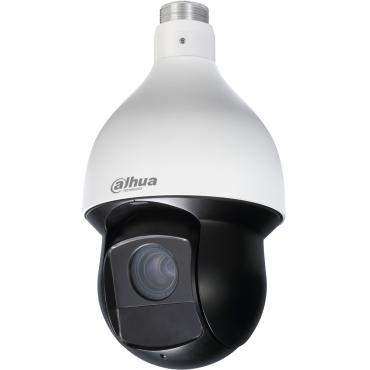

DH-SD59A230TN-HNI SD59A230TN.jpg
Series: Pro
Image Sensor: 1/2.8” 2MP Exmor CMOS
Lens: 4.5~135mm (30x Optical zoom)
Resolution: 1080P (1920 x 1080)
H Field of View: 67.8° ~ 2.77°
Min. Illumination: 0.005 Lux/F1.6 (Color),0 Lux/1.6 (IR on)
Max. IR Range: 110yd
WDR: DWDR
Compression: H.264 / MJPEG
FPS: 30fps@1080P, 60fps@720P
Multi-Streaming: 3 Streams
Pan/Tilt/Zoom: 300 Presets, Pan: 0° ~ 360° endless;
Tilt: -10°~ 90°, auto flip 180°
Preset Speed: Pan: 400° /s; Tilt: 300° /s
IVS: Tripwire,
Intrusion,
Abandoned Object Detection,
Missing Object Detection,
Face detection
ONVIF: 2.4
Audio In: 1
Audio Out: 1
Built In Microphone: -
Memory Slot: Micro SD, Max 128GB
Alarm In: 2
Alarm Out: 1
IP Rating: 67
IK Rating: -
Working Temp: -40ºC ~ +70ºC
Power: AC24V, Hi-PoE
Firmware: URL

Features

  • 30x optical zoom
  • Support Triple-streams encoding
  • Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 400°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66, POE+
  • IR Distance up to 100m
  • Tripwire, Intrusion, Abandon Object Detection, Missing Object Detection, Face Detection IVS features

Compression

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system: Click Here to Download

2. Apply this update to your system second: Click Here to Download

Firmware Changelog

  • Build Date: 01/27/16
  • English, French, Spanish optional,English default,NTSC

Intelligent Features


Compatible Accessories

Accessories Combo 1

Accessories Combo 2

Accessories Combo 3

Accessories Combo 4

Accessories Combo 5

Accessories Combo 6

Accessories Combo 7

Accessories Combo 8

Accessories Combo 9

Accessories Combo 10

Accessories Combo 11

Accessories Combo 12

Accessories Combo 13

Accessories Combo 14

Optional Accessories

Reset Button

SD59 reset button.jpg

Specifications

Model DH-SD59A230TN-HNI
Camera
Image Sensor 1/2.8” CMOS
Effective Pixels 1944(H) x 1092(V), 2Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/3 ~ 1/30,000s
Min. Illumination Color: 0.05Lux@F1.6;
B/W: 0.005Lux@F1.6
S/N Ratio More than 55dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.5mm~135mm
(30x Optical zoom)
Max Aperture F1.4 ~ F2.6
Focus Control Auto / Manual
Angle of View H: 54.1° ~ 3.2°
Close Focus Distance 100mm~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
IR Distance 100m
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF
(352×288/352×240)
Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 720P/ D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Audio
Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection
Face Detection Support
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
Alarm 2/1 channel In/Out
General
Power Supply AC24V, POE plus(802.3at)
Power Consumption 13W, 23W (IR on)
Working Environment -40ºC ~ 70ºC / Less than 90% RH
Ingress Protection IP66
Dimensions Φ186.0(mm) x 309(mm)
Weight 3.5kg
