DH-IPC-EB55A0N-I

DH-IPC-EB55A0N-I EB54A0N.jpg
Series: Pro
Image Sensor: 1/3" 5MP CMOS
Resolution: 5MP (2592x1944)
H Field of View: 185°
Min. Illumination: 0.01 Lux/F2.2 (Color), 0 Lux/F2.2 (IR on)
Day/Night: ICR
Max. IR Range: -
WDR: DWDR
Compression: H.264H/MJPEG/JPEG
FPS: 15fps@5MP, 30fps@UXGA
Multi-Streaming: 3 Streams
IVS: Heat Map
ONVIF: 2.4
Audio In: 1
Audio Out: 1
Built In Microphone: 1
Memory Slot: Micro SD-Max 64GB
Alarm In: 1
Alarm Out: 1
IP Rating: -
IK Rating: 10
Working Temp: -20°F to 140°F
Power: DC12V/ac24v, PoE (802.3af), Max 6W
Firmware: URL


Features

  • 1/3” 5Megapixel progressive scan CMOS
  • H.264& MJPEGdual-stream encoding
  • Max 12fps@5M(2560×1920), 30fps@UXGA
  • Day/Night(Electronic), 3DNR, AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 1.42mm fixed lens
  • Micro SD memory, IK10, PoE

Compression

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system: Click Here to Download

2. Apply this update to your system second: Click Here to Download

Firmware Changelog

  • Build Date: 03/09/16
  • English, French, Spanish optional,English default,NTSC

Intelligent Features

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA131PFA131
Accessories Combo 2 PFB200WPFB200W
Accessories Combo 3 PFB200WPFB200W PFA152PFA152

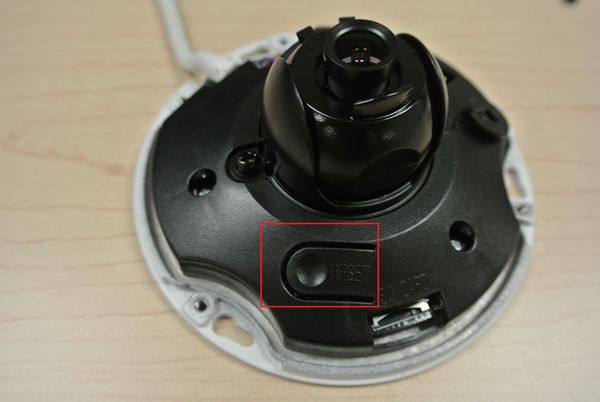

Reset Button

HDB4200C Reset Button.JPG

Specifications

Model DH-IPC-EB55A0N(-I)
Camera
Image Sensor 1/3” 5Megapixel progressive scan CMOS
Effective Pixels 2592(H)x1944(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/100000s
Min. Illumination 0.01lux/F2.6(color),0.001Lux@F2.6(B/W)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(Electronic)/Color/B/W
Backlight Compensation BLC/HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 1.42mm
Max Aperture F2.6
Focus Control Manual
Angle of View H:185°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/ MJPEG
Resolution 5M(2560´1920)/3M(2048×1520)/UXGA(1600×1200)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream 5M(1~12fps)/UXGA(1 ~ 30fps)
Sub Stream D1/CIF(1 ~ 30fps)
Bit Rate H.264: 20K ~ 8192Kbps
Audio
Compression G.711a/G.711u/PCM
Interface 1/1 channel In/Out(Built in Mic)
Smart Function (Only for “-I” model)
Intelligent function Heat map
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF,PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V,PoE
Power Consumption Max 6W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection N/A
Vandal Resistance IK10
Dimensions Φ110mm×54mm
Weight 0.25kg
