DH-IPC-HDBW44A1FN-AS-2.8MM, 3.6MM, 6MM

float

float

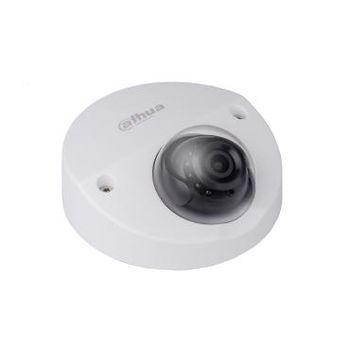

DH-IPC-HDBW44A1FN-AS-2.8MM, 3.6MM, 6MM HDBW44A1FN.jpg
Series: Pro
Image Sensor: 1/3” 4MP progressive scan CMOS
Resolution: 4MP (2688x1520)
H Field of View: 106°/84°/56°
Min. Illumination: 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
Day/Night: ICR
Max. IR Range: 66ft (20m)
WDR: 120dB
Compression: H.264H/MJPEG
FPS: 30fps@1080p; 20fps@4MP
Multi-Streaming: 3 Streams
IVS: -
ONVIF: 2.4
Audio In: 1
Audio Out: 1
Built In Microphone: 1
Memory Slot: Micro SD-Max 128GB
Alarm In: 1
Alarm Out: 1
IP Rating: 67
IK Rating: 10
Working Temp: -30°C~+60°C, Less than 95%RH
Power: DC12V, PoE (802.3af), Max 4W
Firmware: URL

Features

  • 1/3”4Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • Max 20fps@4M(2688×1520),25/30fps@3M(2304x1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • 1/1 Alarm in/out, 1/1 audio in/out(only for -AS)
  • Max. IR LEDs Length 20m
  • Micro SD memory (only for -AS), IP67, IK10, PoE

EOL: End of Life

EOL Date: 3/31/2017

Suggested Replacement

CAD Images

Compression

FOV

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 12/19/2016
  • Support H.264+
  • English, French, Spanish optional, English default,NTSC;

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA139PFA139
Accessories Combo 2 PFB204WPFB204W
Accessories Combo 3 PFB204WPFB204W PFA152PFA152

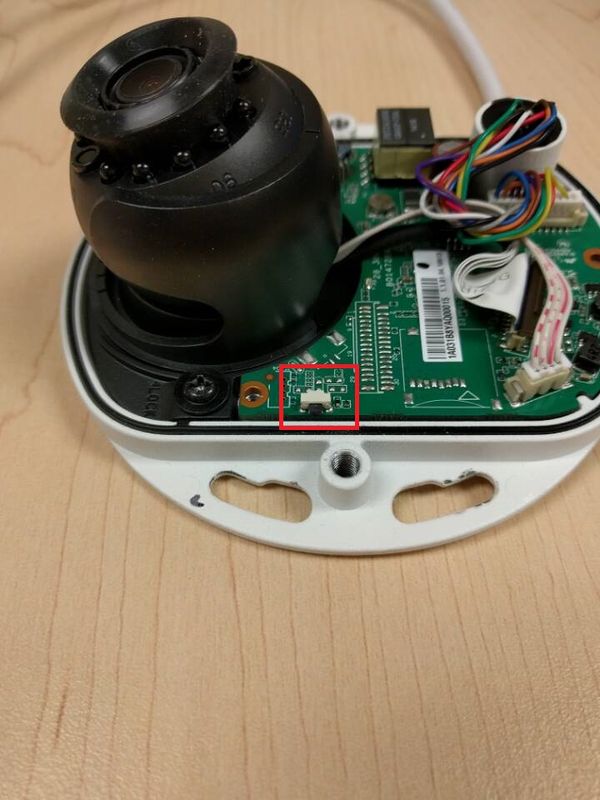

Reset Button

HDBW42 Reset Button.jpg

Specifications

Model DH-IPC-HDBW44A1FN-AS-2.8MM, 3.6MM, 6MM
Camera
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination

0.01lux/F2.0(color),0lux/F2.0 (IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features
Max. IR LEDs Length 20m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm,6mm optional)
Max Aperture F1.8(F2.0,F1.8)
Focus Control Manual
Angle of View H:84°(106°/56°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 4M(2688x1520)/4M(2560x1440)/3M(2304x1296)/1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
  Frame Rate Main Stream 4M(1~20fps)/3M(1~25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1-20fps)
Bit Rate H.264: 32K ~ 10Mbps
Corridor Mode Support
Audio
Compression G.711a/ G.711u/ AAC(only for -AS)
Interface 1/1 channel In/Out(only for -AS)
Smart Function(Optional)
  Smart detection Tripwire
Intrusion
Abandoned/Missing
Scene Change
Audio detect
Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF,PSIA,CGI
Max. User Access 20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory Slot Micro SD Max 128GB(only for -AS)
RS485 N/A
Alarm 1/1 channel In/Out(only for -AS)
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
