DH-IPC-HDBW52A1EN-ZI

DH-IPC-HDBW52A1EN-ZI HDBW52A1EN.jpg
Series: Pro
Image Sensor: 1/2.7” 2M progressive scan CMOS
Resolution: 2MP (1920x1080)
H Field of View: 99°-34°
Min. Illumination: 0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
Day/Night: ICR
Max. IR Range: 165ft (50m)
WDR: 120dB
Compression: H.264H/MJPEG/JPEG
FPS: 30fps@1080p
Multi-Streaming: 3 Streams
IVS: Tripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect
ONVIF: 2.4
Audio In: 1
Audio Out: 1
Built In Microphone: 1
Memory Slot: Micro SD-Max 128GB
Alarm In: 1
Alarm Out: 1
IP Rating: 67
IK Rating: 10
Working Temp: -30°C~+60°C, Less than 95%RH
Power: DC12V, PoE (802.3af)
Firmware: URL

Features

  • 1/2.7” 2Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 25/30fps@1080(1920×1080)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7mm ~12mm motorized lens
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Max. IR LEDs Length 50m
  • Micro SD memory, IP67, IK10, PoE

Compression

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 07/08/16
  • 1.Support H.264+; 2.English, French, Spanish optional,English default,NTSC

Intelligent Features

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA138PFA138
Accessories Combo 2 PFA101PFA101 PFB302SPFB302S
Accessories Combo 3 PFB201CPFB201C
Accessories Combo 4 PFA101PFA101 PFB300CPFB300C
Accessories Combo 5 PFA138PFA138 PFA150PFA150
Accessories Combo 6 PFA101PFA101 PFB302SPFB302S PFA150PFA150
Accessories Combo 7 PFA101PFA101 PFB300CPFB300C PFA150PFA150
Accessories Combo 8 PFA101PFA101 PFB302SPFB302S PFA152PFA152
Accessories Combo 9 PFA138PFA138 PFA151PFA151
Accessories Combo 10 PFA101PFA101 PFB302SPFB302S PFA151PFA151

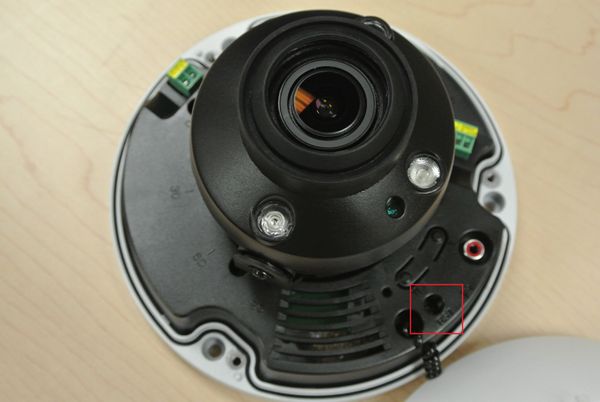

Reset Button

HDBW54A1EN-Z Reset Button.JPG

Specifications

Model DH-IPC-HDBW52A1EN-ZI
Camera
Image Sensor 1/2.7” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H) x 1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination

0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

Video Output

1 port

Camera Features
Max. IR LEDs Length 50m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC /WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm
Max Aperture F1.4
Focus Control Motorized
Angle of View H: 99°~34°
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in Type
Video
Compression H.264/H.264H/H.264B/MJPEG
Resolution 1080P(1920x1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
  Frame Rate Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1 ~ 13/4fps)
Bit Rate H.264: 32K ~ 10Mbps
Corridor Mode Support
Audio
Compression G.711a/ G.711u/ AAC
Interface 1/1 channel In/Out
Smart Function(Optional)
  Smart detection Tripwire
Intrusion
Abandoned/Missing
Scene Change
Audio detect
Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF ONVIF,PSIA,CGI
Max. User Access 20users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm 1/1 channel In/Out
PIR Sensor Range N/A
General
Power Supply DC12V(AC24V optional), PoE (802.3af)
Power Consumption Max 10W (with IR on, motorized lens working)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Dimensions Φ159mm×117.9mm
Weight 0.8Kg
