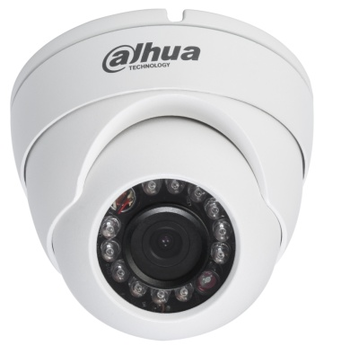

DH-IPC-HDW44A1MN


float

float

Features

  • Max 20fps@4MP (2688×1520) & 30fps@3MP (2304×1296)
  • True WDR (120dB)
  • True Day/Night
  • Fixed Lens Options 2.8mm, 3.6mm
  • Smart IR 30m (98ft)
  • Outdoor Rated IP67
  • Intelligent Video System

EOL: End of Life

EOL Date: 7/5/2017

Suggested Replacement

FOV

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 12/19/2016
  • 1.Support H.264+; 2.English, French, Spanish optional,English default,NTSC

Intelligent Features

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA121PFA121
Accessories Combo 2 PFB204WPFB204W
Accessories Combo 3 PFA13APFA13A
Accessories Combo 4 PFB204WPFB204W PFA152PFA152

Reset Button

IPC-HDW4221M reset button.JPG

Specifications

Camera
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm optional)
Max Aperture F2.0(F2.0/F2.0)
Focus Control Manual
Angle of View H: 84°/106°/56°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/H.264B/H.264H/ MJPEG
Resolution

4M(2688×1520)/4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/
720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate Main Stream 4M(1~20fps)/3M(1~30fps)
Sub Stream D1/CIF(1 ~ 30fps)
Third Stream 720P(1-20fps)
Bit Rate H.264: 32K ~ 10Mbps
Corridor Mode Support
Audio
Compression N/A
Interface N/A
Smart Function
Smart detection Tripwire
Intrusion
Abandoned/Missing
Scene Change
Audio detect
Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,

RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x

Compatibility ONVIF,PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption < 5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions Φ108mm×84mm
Weight 0.25Kg(0.38Kg with packaging)
