DH-IPC-HDW44A1MN-I-2.8MM, 3.6MM

DH-IPC-HDW44A1MN-I-2.8MM, 3.6MM DH-IPC-HDW44A1MN(-I).png
Series: Pro
Image Sensor: 1/3” 4MP progressive scan CMOS
Resolution: 4MP (2688x1520)
H Field of View: 110°/81°/55°
Min. Illumination: 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
Day/Night: ICR
Max. IR Range: 98.5ft (30m)
WDR: 120dB
Compression: H.264H/MJPEG
FPS: 30fps@3MP; 20fps@4MP
Multi-Streaming: 3 Streams
IVS: Tripwire
Intrusion
Scene change
Missing/Abandoned
Face detect
ONVIF: 2.4
Audio In: -
Audio Out: -
Built In Microphone: -
Memory Slot: Micro SD-Max 128GB
Alarm In: -
Alarm Out: -
IP Rating: 67
IK Rating: -
Working Temp: -30°C~+60°C, Less than 95%RH
Power: DC12V, PoE (802.3af), Max 4W
Firmware: URL

Features

  • 1/3” 4Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 20fps@4M(2688×1520),30fps@3M(2304×1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (2.8mm optional)
  • Max. IR LEDs Length 30m
  • IP67, PoE

Compression

Example Photos

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system: Click Here to Download

2. Apply this update to your system second: Click Here to Download

Firmware Changelog

  • Build Date: 07/22/16
  • 1.Support H.264+; 2.English, French, Spanish optional,English default,NTSC

Intelligent Features

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA121PFA121
Accessories Combo 2 PFB204WPFB204W
Accessories Combo 3 PFA13APFA13A
Accessories Combo 4 PFB204WPFB204W PFA152PFA152

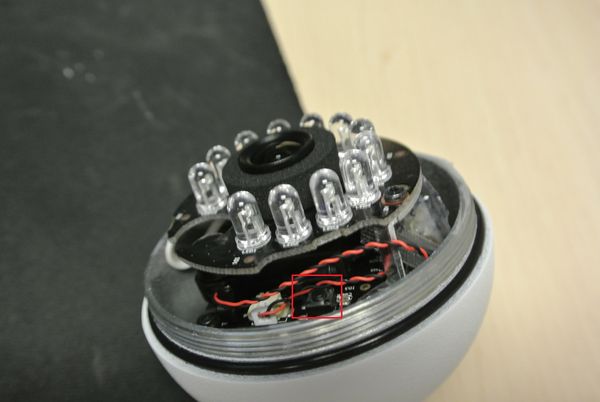

Reset Button

IPC-HDW4221M reset button.JPG

Specifications

Model DH-IPC-HDW44A1MN(-I)
Camera
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm optional)
Max Aperture F2.0(F2.0/F2.0)
Focus Control Manual
Angle of View H: 84°/106°/56°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/H.264B/H.264H/ MJPEG
Resolution 4M(2688×1520)/4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream 4M(1~20fps)/3M(1~30fps)
Sub Stream D1/CIF(1 ~ 30fps)
Third Stream 720P(1-20fps)
Bit Rate H.264: 32K ~ 10Mbps
Corridor Mode Support
Audio
Compression N/A
Interface N/A
'Smart Function '(Only for “-I” model)
  Smart detection Tripwire
Intrusion
Abandoned/Missing
Scene Change
Audio detect
Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Compatibility ONVIF,PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption < 5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions Φ108mm×84mm
Weight 0.25Kg(0.38Kg with packaging)
