N24BG52/N24BG53

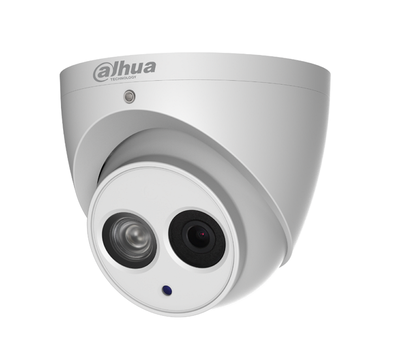

IPC HDW4421EM AS.png

float

float

Features

  • 1/2.8-in. 2 MP Progressive Scan Exmor CMOS
  • Triple-stream Encoding with Smart H.265+ Compression
  • 1080p (1920 × 1080) at 60 fps
  • Smart Detection
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • 2.5 mm or 3.6 mm Fixed Lens
  • Built-in Microphone
  • Maximum IR LED Length 50 m (164 ft)
  • Micro SD Memory, IP67, PoE

Compression

FOV

Firmware Update Instructions

Firmware Update Download

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA139PFA139
Accessories Combo 2 PFA139PFA139 PFA150PFA150
Accessories Combo 3 PFB204WPFB204W
Accessories Combo 4 PFB204WPFB204W PFA152PFA152
Accessories Combo 5 PFA121PFA121
Accessories Combo 6 PFA121PFA121 PFA151PFA151
Accessories Combo 7 PFA121PFA121 PFA150PFA150

Specifications

Camera
Image Sensor 1/2.8-in. 2 MP Progressive Scan Exmor CMOS
Effective Pixels 1920(H) x 1080(V)
RAM/ROM 256 MB / 32 MB
Scanning System Progressive
Minimum Illumination Color: 0.009 lux at F2.0
  0 lux at F2.0 with IR on
S/N Ratio More than 50 dB
IR Distance Distance up to 50.0 m (164.04 ft)
IR On/Off Control Auto/ Manual
IR LEDs One (1)
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length N24BG52: 2.8 mm
N24BG53: 3.6 mm
Max. Aperture F2.0
Angle of View Horizontal
  N24BG53: 87°
  N24BG52: 110°
  Vertical
  N24BG53: 48°
  N24BG52: 58°
Focus Control Fixed
Pan/Tilt/Rotation
Range Pan: 0˚ to 360˚
  Tilt: 0˚ to 78˚
  Rotation: 0˚ to 360˚
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Streaming Capability Three (3) Streams
Resolution 1080p (1920 x 1080)
  1.3 MP (1280 x 960)
  720p (1280 x 720)
  D1 (704 × 480)
  VGA (640 x 480)
  CIF (352 x 240)
Frame Rate Main Stream: 1080p or 720p at 60 fps
  Sub Stream 1: D1 at 60 fps
  Sub Stream 2: 1080p at 30 fps
Bit Rate Control CBR, VBR
Bit Rate H.265: 14 to 5632 Kbps
  H.264: 24 to 9472 Kbps
Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB)
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Smart IR Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Interface Built-in Microphone
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,
  FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,
  UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,
  IGMP, SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast, Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS
  Local PC for Instant Recording
  MicroSD Card, maximum 128 GB
Web Viewer IE, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility FCC Part 15 Subpart B
Electrical
Power Supply 12 VDC, PoE (802.3af, Class 0)
Power Consumption < 5 W
Environmental
Operating Conditions -30° C to +60° C (-22° F to +140° F),
  Less than 95% RH
Storage Conditions -30° C to +60° C (-22° F to +140° F),
  Less than 95% RH
Ingress Protection IP67
Construction
Casing Metal
Dimensions ø106.0 mm x 93.70 mm (ø4.17 in. x 3.69 in.)
Net Weight 0.47 kg (1.04 lb)
Gross Weight 0.65 kg (1.43 lb)
Intelligence
IVS triggers an alarm and takes a defined action for the following events:
Standard Features Tampering with the camera.
  Error writing to an onboard Micro SD card.
  Error sending or receiving data over the network.
  Unauthorized access to the camera.
Premium Features
Motion An object moves through any part of the scene.
Tripwire A target crosses a user-defined line.
Intrusion A target enters or exits a defined perimeter.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
Advanced Features
Facial Detection Detects and captures a snapshot of human face in a defined area within a scene.


PFB204W Wall mount
PFA139 Junction box
PFA152 Pole mount
PFA151 Corner mount
