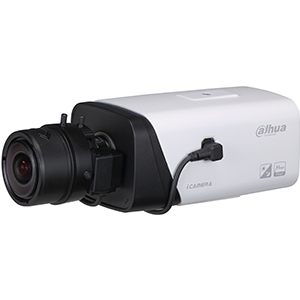

N45BA5


float

Features

  • 1/3-in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding with Smart H.265+ Compression
  • 4 MP (2688 × 1520) at 30 fps
  • Smart Detection Supported
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Intelligent Video System with Facial Detection
  • Alarm and Audio Inputs/Outputs
  • Auto Back Focus (ABF)
  • Micro SD Memory, PoE
  • 5-year Warranty

Compression

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 1/5/2017
  • Fixed a aperture switch issue
  • Support H.265+/H.265
  • 1. Optimize motion blur under low-light condition
  • 2. Fix blurred screen problem in WDR mode when smart codec on

Specifications

Camera
Image Sensor 1/3-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
Scanning System Progressive
Minimum Illumination Color: 0. 01 Lux at F1.2
  B/W: 0.001 Lux at F1.2
S/N Ratio More than 50 dB
Lens Mount Type C/CS
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Streaming Capability Three (3) Streams
Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296),
1080p (1920 x 1080), 1.3 MP (1280 x 960),
720p (1280 x 720), D1 (704 x 480),
VGA (640 x 480), CIF (352 x 240)
Frame Rate Main Stream: 4 MP at 30 fps
  Sub Stream 1: D1 at 30 fps
  Sub Stream 2: 720p at 30 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 24 Kbps to 10240 Kbps
H.265: 14 Kbps to 9984 Kbps
Day/Night Auto (ICR), Manual, B/W
BLC Mode BLC, HLC, WDR (120 dB)
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Digital Zoom 16x
Flip 0° / 90° / 180° / 270°
Mirror Off, On
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,
  FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,
  UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,
  IGMP, SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS
  Local PC for Instant Recording
  MicroSD Card, maximum 128 GB
Web Viewer IE, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility FCC Part 15 Subpart B
Interface
Video Interface One (1) Port
Audio Interface Input: One (1) Channel,
  with One (1) Built-in Microphone
  Output: One (1) Channel
RS485 One (1) Port
Alarm Input: Two (2) Channels
  Output: One (1) Channel
Electrical
Power Supply 12 VDC, 24 VAC, PoE (802.3af Class 0)
Power Consumption < 5 W
Environmental
Operating Conditions -30° C to +60° C (-22° F to +140° F),
  Less than 95% RH
Storage Conditions -30° C to +60° C (-22° F to +140° F),
  Less than 95% RH
Construction
Casing Metal
Dimensions 135.40 mm x 74.40 mm x 65.50 mm
  (5.33 in. x 2.93 in. x 2.58 in.)
Net Weight 0.66 kg (1.46 lb)
Gross Weight 0.77 kg (1.70 lb)
Intelligence
IVS triggers an alarm and takes a defined action for the following events:
Standard Features Tampering with the camera.
  Error writing to an onboard Micro SD card.
  Error sending or receiving data over the network.
  Unauthorized access to the camera.
Premium Features
Motion An object moves through any part of the scene.
Tripwire A target crosses a user-defined line.
Intrusion A target enters or exits a defined perimeter.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
Advanced Features
Facial Detection Detects and captures a snapshot of human face in a defined area within a scene.
