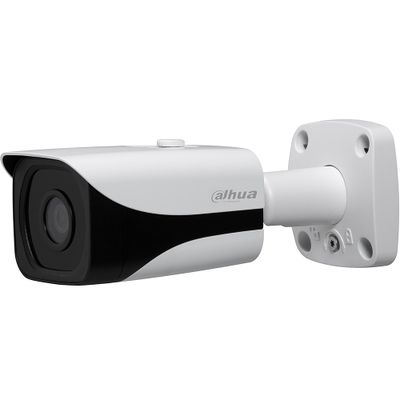

N64CB32/N64CB33



float

Features

  • 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple Stream Encoding
  • Smart H. 265+ and H.264 Dual Codecs
  • 6 MP at 20 fps or 4 MP at 30 fps, Maximum Resolution
  • 2.8 mm or 3.6 mm Fixed Lens Options
  • Enhanced Power and Data Transmission Distances with ePoE
  • True WDR (120 dB) and Day/Night (ICR)
  • Maximum IR LED Length 40 m (131 ft) with Smart IR
  • IP67 Ingress Protection
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Firmware

Firmware Update Instructions

Firmware Update Download


Specifications

Camera
Image Sensor 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS
Effective Pixels 3072(H) x 2048(V)
RAM/ROM 512 MB / 32 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s to 1/100000 s
Minimum Illumination Color: 0.04 lux at F1.6 (1/3 s,30 IRE)

Color: 0.4 lux at F1.6 (1/30 s, 30 IRE)

0 lux at F1.6 with IR on

S/N Ratio More than 50 dB
IR Distance Distance Distance up to 40.0 m (131.23 ft)
IR On/Off Control Auto, Manual
IR LEDs Two (2)
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length N64CB32 2.8 mm
N64CB33 3.6 mm
Maximum Aperture F1.6
Angle of View N64CB32 Horizontal: 98°

Vertical: 67°

N64CB33 Horizontal: 69°

Vertical: 48°

Focus Control Fixed
Close Focus

Distance

N64CB32 0.90 m (35.43 in.)
N64CB33 1.70 m (66.93 in.)
DORI¹ Distance
Lens Detect Observe Recognize Identify
2.8 mm 69 m (226 ft) 28 m (92 ft) 14 m (46 ft) 7 m (23 ft)
3.6 mm 89 m (292 ft) 36 m (118 ft) 18 m (59 ft) 9 m (30 ft)
Pan/Tilt/Rotation
Range Pan: 0˚ to 360˚

Tilt: 0˚ to 90˚

Rotation: 0˚ to 360˚˚

Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Streaming Capability Three (3) Streams
Resolution 6 MP (3072 x 2048), 3072 x 1728, 2592 x 1944

2688 x 1520, 2560 x 1440, 2304 x 1296,

1080p (1920 x 1080), SXGA (1280 x 1024),

1.3 MP (1280 x 960), 720p (1280 x 720),

D1 (704 x 480), CIF (352 x 240)

Frame Rate Main Stream: 6 MP at 20 fps or 4 MP at 30 fps

Sub Stream 1: D1 at 30 fps

Sub Stream 2: 1080p at 30 fps

Bit Rate Control CBR/VBR
Bit Rate H.264: 24 K to 10240 Kbps

H.265: 14 K to 9984 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, WDR (120 dB)
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangle)
Region of Interest Off, On (4 Zones)
Smart IR Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,

FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,

UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,

IGMP, SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast, Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Micro SD card, maximum 128 GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility

(EMC)

FCC CFR 47 FCC Part 15 Subpart B
Electrical
Power Supply 12 VDC ± 30%, 560 mA maximum; or

PoE (802.3af Class 0)

Power Consumption < 7.5 W
