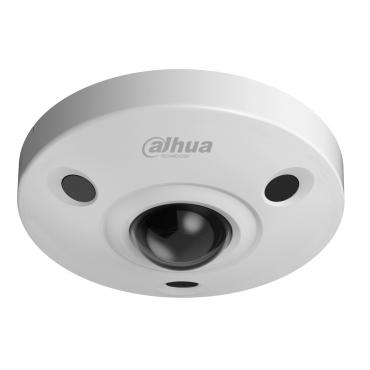

DH-IPC-EBW8600-IVC


Features

  • H.264 and MJPEG Dual Encoding
  • Max. 25/30 fps @ 6. MP (3072 x 2048)
  • Multiple Dewarp Modes
  • Digital WDR and Day/Night (ICR) Imager
  • Max.IR LED Length 10 m (33 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance

Compression

Specific Feature

  • ImmerVision Version

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 12/27/16

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA132PFA132
Accessories Combo 2 PFA100PFA100 PFB302SPFB302S
Accessories Combo 3 PFA100PFA100 PFB300CPFB300C
Accessories Combo 4 PFA100PFA100 PFB302SPFB302S PFA150PFA150
Accessories Combo 5 PFA100PFA100 PFB300CPFB300C PFA150PFA150
Accessories Combo 6 PFA132PFA132 PFA152PFA152
Accessories Combo 7 PFA100PFA100 PFB302SPFB302S PFA152PFA152
Accessories Combo 8 PFA100PFA100 PFB302SPFB302S PFA151PFA151

Reset Button

EBW8600N Reset Button.JPG

Troubleshooting

A dark uneven ring appears on a fish eye camera

Specifications

Camera
Image Sensor 1/1.8-in. Exmor R CMOS
Effective Pixels 3072(H) x 2048(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4) s to 1/100000 s
Minimum Illumination Color: 0.01 lux @ F2.8;
  B/W: 0 lux (IR on)
S/N Ratio More than 50 dB
IR Distance 10 m (33 ft)
IR On/Off Control Auto / Manual
Lens
Lens Type Fixed Lens
Mount Type Board-in
Focal Length 1.3 mm
Max Aperture F2.8
Angle of View 180°/360°
Focus Control Manual
Intelligence
Auto Tracking Single-scene, multiple-scene, panorama-scene
IVS (optional) Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving
Advanced Intelligent Functions Face Detection
Tracking Trigger Mode Manual / Auto (alarm triggered)
Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm
Video
Compression H.264H/H.264B/H.264/MJPEG
Streaming Capability 3 Streams
Resolution 6MP (3072 × 2048)
4 MP (2048 × 2048)
3 MP (2048 × 1536)
  UVGA (1600 × 1200)
1.3 MP (1280 x 960)
  D1 (704 × 576/704 x 480)
CIF (352 × 288/342 x 240)
Frame Rate Main Stream: 6 MP (1 to 25/30 fps)
  Sub Stream 1: D1/CIF (1 to 25/30 fps)
  Sub Stream 2: 1.3 MP/D1 (1 to 25/30 fps)
Bit Rate Control CBR / VBR
Bit Rate 8 to 12288 Kbps
De-warp Modes Original, Panoramic, Double panoramic, 1+3, E-PTZ
4 pictures
Day/Night Auto (ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto, Manual
Gain Control Auto / Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Audio
Compression G.711a, G.711Mu, G.726, AAC
Interface 1/1 channel In/Out, built-in mic
Network
Ethernet RJ-45 (10/1000 Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ARP
Interoperability ONVIF PSIA CGI
Max. User Access 20
Web Viewer IE10
Smart Phone Android, IOS
Certifications
Certifications FCC (SEFV1505157-A )
UL (E234884-A125-UL)
Interface
Memory Slot Micro SD, up to 64GB
Alarm 2/1 In/Out
Eelectrical
Power Supply DC12V, PoE (802.3af)
Power Consumption Max. 13 W
Environmental
Operating Conditions -30°C to +60°C (-22°F to +140°F),
  Less than 90% RH
Storage Conditions -30°C to +60°C (-22°F to +140°F),
  Less than 90% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Dimensions Φ150 mm x 50.7 mm (Φ 5.91 in. x 1.99 in.)
Net Weight 0.58 kg (1.28 lbs)
Gross Weight 0.86 kg (1.90 lbs)
