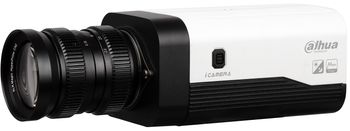

DH-IPC-HF8835FN



float


Features

  • Micro Four Thirds 8MP Progressive-scan CMOS Sensor
  • M43 Lens Interface
  • 4K (3840 × 2160) at 30 fps
  • Smart H.265+ and H.264 Dual Codec
  • Triple-stream Encoding
  • Starlight+ Technology for Ultra-low Light Sensitivity
  • Ultra Wide Dynamic Range (140 dB) and True Day/Night (ICR)
  • Intelligent Video System with Business Analytics
  • PoE Support
  • Five-year Warranty (for products sold through authorized Dahua Dealers)


Firmware Update Instructions

Firmware Update Download

Specifications

Camera
Image Sensor Micro Four Thirds

4/3-in. 8MP Progressive-scan CMOS

Effective Pixels 3840(H) x 2160(V)
RAM/ROM 2048 MB / 4096 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.0005 lux at F0.95 (1/3 s, 30 IRE)

Color: 0.003 lux at F0.95 (1/30 s, 30 IRE)

B/W: 0.0003 lux at F0.95 (1/3 s, 30 IRE)

B/W: 0.002 lux at F0.95 (1/30 s, 30 IRE)

S/N Ratio More than 50 dB
Lens
Lens Type External
Mount Type M43
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability Three (3) Streams
Resolution 4K (3840 x 2160), 6 MP (3072 x 2048),

5 MP (2560 x 1920), 3 MP (2048 x 1536),

3 MP (2304 x 1296), 1080p (1920 x 1080)

1.3 MP (1280 x 960), 720p (1280 x 720),

D1 (704 x 480), VGA (640 x 480), CIF (342 x 240)

Frame Rate Main Stream: 4K at 30 fps

Sub Stream 1: D1 at 30 fps

Sub Stream 2: 1080p at 30 fps

Bit Rate Control CBR/VBR
Bit Rate H.264: 32 to 16384 Kbps

H.265: 12 to 9984 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC , Ultra WDR (140 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Advanced Features Electronic Image Stabilization (EIS), Defog
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network Ethernet RJ-45 (100/1000 Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,

802.1x

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage Network Attached Storage (NAS)

Local PC for Instant Recording

Micro SD Card Slot, maximum 128 GB

Web Viewer IE, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B
Interface
Video One (1) BNC Port (1 Vp-p, 75 Ω)
Audio Input: Two Channels plus a Built-in Microphone

Output: One (1) Channel

RS485 One (1) Port
RS232 One (1) Serial Port
Alarm Input: Two (2) Channels (5 mA, 5 VDC)

Output: Two (2) Channels

(1 A, 30 VDC; 0.5 A, 50 VAC)

Electrical
Power Supply 12 VDC, 1 A; 24 VAC, 1 A; or PoE (802.3af Class 0)
Power Consumption < 10.5 W
Environmental
Operating Temperature –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Storage Temperature –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Construction
Casing Metal
Dimensions 167.80 mm x 86.80 mm x 74.0 mm

(6.61 in. x 3.42 in. x 2.91 in.)

Net Weight 0.81 kg (1.78 lb)
Gross Weight 0.97 kg (2.13 lb)
