DH-IPC-HDW8341XN-3D

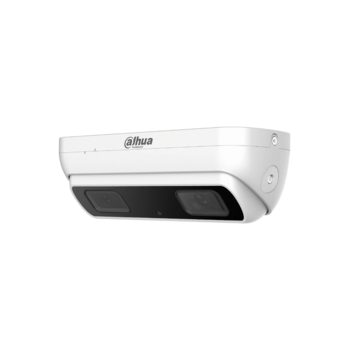

DH-IPC-HDW8341X-3D Image.png

float


float


Features

  • Two (2) 1/2.8-in. 3 MP Progressive-scan CMOS Sensors
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • 3 MP (2048 x 1536) at 25 fps; 2.8 mm Fixed Lens
  • Advanced, Accurate People Counting: Supports Line Crossing and Regional People Counting
  • Day/Night (ICR) IR Cut Filter
  • Built-in Microphone
  • Maximum IR Length 10 m (33 ft)
  • Intelligent Video System with Advanced Business Analytics
  • IP67 Ingress Protection
  • 5-year Warranty (for products sold through an authorized Dahua dealer)

Firmware

Firmware Update Instructions

Firmware Update Download

Reset Button and SD

DH-IPC-HDW8341XN-3D SD.jpg

Wire Harness

DH-IPC-HDW8341XN-3D Wire Harness.jpg DH-IPC-HDW8341XN-3D Wire Harness2.jpg


Specifications

Camera
Image Sensor Two (2) 1/2.8-in. 3 MP CMOS Sensors
Effective Pixels 2048 (H) x 1536 (V)
RAM/ROM 512 MB/4096 MB
Scanning System Progressive
Minimum Illumination Color: 0.009 lux at F1.8 (1/3 s,30 IRE)

Color: 0.08 lux at F1.8 (1/30 s, 30 IRE)

0 lux at F1.8 (IR on)

S/N Ratio More than 50 dB
IR Distance 10.0 m (32.81 ft)
IR On/Off Control Auto, Manual
IR LEDs One (1)
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm, each lens
Maximum Aperture F1.8
Angle of View Horizontal: 137°

Vertical: 114°

Focus Control Fixed
Close Focus Distance 0.6 m (1.97 ft)
Pan/Tilt/Rotation
Range Tilt: –10˚ to 70˚
DORI Distance¹
Lens Detect Observe Recognize Identify
2.8 mm 45 m (147 ft) 18 m (59 ft) 9 m (29 ft) 4 m (13 ft)
Detection Width
Installation Height 2.20 m 2.50 m 2.80 m 3.50 m
Detection Width 1.10 m 2.60 m 3.10 m 4.30 m
Video
Compression H.265, H.264H, MJPEG (Sub Stream only)
Smart Codec Smart H.265+, Smart H.264+
Streaming Capability Three (3) Streams
Resolution 3 MP (2048 x 1536), 1080p (1920 x 1080),

1.3 MP (1280 x 960), 720p (1280 x 720),

D1 (704 x 480), VGA (640 x 480),CIF (342 x 240)

Frame Rate Main Stream: 3 MP at 25 fps

Sub Stream 1: D1 at 30 fps

Sub Stream 2: 6 MP at 7 fps (for camera adjustment only)

Bit Rate Control CBR, VBR
Bit Rate H.264: 192 kbps to 10240 Kbps

H.265: 80 kbps to 6144 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, Digital WDR, SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off , On (4 Zones, Rectangular)
Region of Interest Off , On (4 Zones)
Advanced Features Smart IR

Defog

Digital Zoom 16x
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (100/1000 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP,

FTP, DHCP, DNS, DDNS, PPPoE, IPV4/V6, QoS, UPnP,

NTP, Bonjour, IEEE 802.1X, Multicast, ICMP, IGMP,

TLS

Interoperability ONVIF Profile S/G, API
Streaming Method Unicast, Multicast
Max. User Access 10 Users/20 Users
Edge Storage Network Attached Storage (NAS)

Local PC for Instant Recording

Micro SD Card, maximum 128 GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software SmartPSS, DSS, DMSS
Mobile Operating System IOS, Android
Certifications
Safety EN 60950:2000

UL 60950-1

Electromagnetic Compatibility

(EMC)

FCC Part 15 Subpart B
Interface
Video Output One (1) Port, BNC (for camera adjustment only)
Audio Input:

• Two (2) Channels, RCA

• One (1) Built-in Microphone

Output: One (1) Channel, RCA

Alarm Input: Two (2) Channels

Output: Two (2) Channels

Electrical
Power Supply 12 VDC, 1 A or PoE (802.3af, Class 0)
Power Consumption < 12 W
Environmental
Operating Conditions –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Storage Conditions –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Ingress Protection IP67
Construction
Casing Metal
Dimensions 204.0 mm x 78.0 mm x 62.0 mm

(8.03 in. x 3.07 in. x 2.44 in.)

Net Weight 0.80 kg (1.76 lb)
Gross Weight 1.09 kg (2.40 lb)
