DH-IPC-HF8242FN-FR

Coming soon

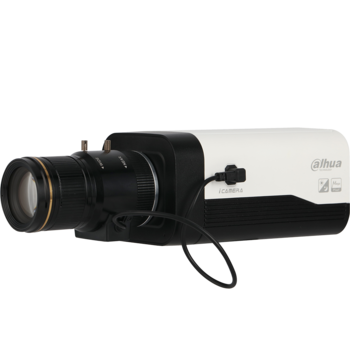

HF8242F FR Product Image.png

float


float


Features

  • 1/1.9-in. 2 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • 1080p at 60 fps
  • Advanced Facial Recognition with Extraction Display
  • Starlight Technology for Low-light Applications
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Built-in Microphone
  • Intelligent Video System with Advanced Business Analytics
  • Micro SD Memory, PoE
  • 5-year Warranty (for products sold through an authorized Dahua dealer)


Firmware

Firmware Update Instructions

Firmware Update Download

1. Update DH_IPC-HX8X4X-Warpway_EngSpnFrn_NP_Stream3_V2.622.0000000.10.R.20180921.bin

2. Then update firmware.bin

Specifications

Camera
Image Sensor 1/1.9-in. 2 MP CMOS
Effective Pixels 1920(H) x 1080(V)
RAM/ROM 2040 MB/4096 MB
Scanning System Progressive
Electronic Shutter Speed 1/3 s to 1/100,000 s, Auto and Manual
Minimum Illumination Color: 0.001 lux at F1.2 (1/3 s, 30 IRE)

Color: 0.01 lux at F1.2 (1/30 s, 30 IRE)

B/W: 0.0005 lux at F1.2 (1/3 s, 30 IRE)

B/W: 0.005 lux at F1.2 ( 1/30 s, 30 IRE)

S/N Ratio More than 50 dB
Lens Mount Type C/CS
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability Three (3) Streams
Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960),

720p (1280 x 720), D1 (704 x 480), VGA (640 x 480)

Frame Rate Main Stream: 1080p at 60 fps
Sub Stream 1: D1 at 60 fps
Sub Stream 2: 1080p at 60 fps
Bit Rate Control VBR
Bit Rate H.265: 14 Kbps to 6144 Kbps

H.264: 24 Kbps to 10240 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Privacy Masking Off, On (4 Area, Rectangle)
Advanced Features Electronic Image Stabilization (EIS)

Defog

Flip 0°, 90°, 180°, 270°
Mirror Off, On
Audio
Compression G.711a, G.711Mu, G.726, AAC
Network
Ethernet RJ45 (100/1000 Mbps Base-T)
Protocol HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP,

DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP,

NTP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Maximum User Access 10 Users /10 Users
Edge Storage Network Attached Storage (NAS)

Local PC for Instant Recording

MicroSD Card, maximum 128 GB

Web Viewer IE, Firefox, Safari
Management Software SmartPSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL 60950-1

EN 60950:2000

Electromagnetic

Compatibility (EMC)

FCC Part 15 Subpart B
Interface
Video Output One (1) BNC

(1.0 Vp-p, 75 Ω)

Audio Input:

• Two (2) Channels, 3.5 mm Jack

• One (1) Built-in Microphone

Output: One (1) Channel, 3.5 mm Jack

RS485 One (1) Port
Alarm Input: Two (2) Channels (5 mA, 5 VDC)

Output: Two (2) Channels (1 A, 30 VDC; 0.5 A, 50 VAC)

Electrical
Power Supply 12 VDC, 24 VAC, or PoE (802.3af Class 0)
Power Consumption < 10 W
