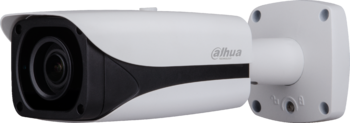

N28BB7Z



float


Features

  • 1/1.9-in. 2MP Progressive-scan CMOS Sensor
  • Triple Stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • Starlight Technology for Ultra-low Light Sensitivity
  • 1080p at 60 fps Maximum Resolution
  • 4.1 mm to 16.4 mm Motorized Optical Zoom Lens
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Distance 50 m (164 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • Five-year Warranty (for products sold through authorized Dahua Dealers)


Firmware Update Instructions

Firmware Update Download


Specifications

Camera
Image Sensor 1/1.9-in. 2 MP STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 MP
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.002 lux at F1.53 (1/3 s, 30 IRE)

Color: 0.01 lux at F1.53 (1/30 s, 30 IRE)

0 lux at F1.53 (with IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 50.0 m (164.04 ft)
IR On/Off Control Auto, Manual
IR LEDs Four (4)
Lens
Lens Type Motorized, Auto Iris (HALL)
Mount Type Board-in
Focal Length 4.1 mm to 16.4 mm
Max. Aperture F1.53
Angle of View Horizontal: 80° to 32°

Vertical: 47° to 18°

Optical Zoom 4x
Focus Control Motorized Auto-focus
Close Focus Distance 0.50 m (1.64 ft)
DORI Distance
Lens Detect

(8 ppf)

Observe

(19 ppf)

Recognize

(38 ppf)

Identify

(76 ppf)

Wide 57 m (187 ft) 23 m (75 ft) 11 m (36 ft) 6 m (20 ft)
Telephoto 137 m (449 ft) 55 m (180 ft) 27 m (89 ft) 14 m (49 ft)
Pan/Tilt/Rotation
Range Pan: 0˚ to 360˚;

Tilt: 0˚ to 90˚;

Rotation: 0˚ to 360˚

Video
Compression Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability Three (3) Streams
Resolution 1080p (1920 x 1080), SXGA (1280 x 1024),

1.3 MP (1280 x 960), 720p (1280 x 720),

D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)

Frame Rate Main Stream: 1080p at 60 fps

Sub Stream: D1 at 60 fps

Third Stream: 1080p at 60 fps

Bit Rate Control CBR/VBR
Bit Rate H.264: 24 Kbps to 10240 Kbps

H.265: 14 Kbps to 6144 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Advanced Features Electronic Image Stabilization (EIS), Smart IR, Defog
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (100/1000 Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,

802.1x

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast, Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS (Network Attached Storage)

Local PC for Instant Recording

Micro SD Card Slot, maximum 128 GB

Web Viewer IE, Chrome, Firefox, Safari

Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B
Interface
Video One (1) CVBS Output Port

(for installation adjustment only)

Audio Input: One (1) Channel

Output: One (1) Channel

Alarm Input: Two (2) Channels (5 mA, 5 VDC)

Output: One (1) Channel (1 A, 30 VDC; 0.5 A, 50 VAC)

Electrical
Power Supply 12 VDC or PoE+ (802.3at, Class 4)
Power Consumption <13 W
