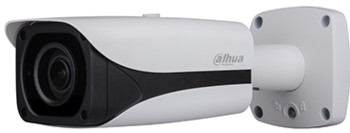

N68BB7Z


Features

  • 1/1.8-in. 6 MP Progressive Scan CMOS
  • Triple-stream Encoding with H.264/H.265 Encoding
  • 6 MP at 30 fps (3072 x 2048)
  • Digital WDR and Day/Night (ICR)
  • Multiple Network Monitoring: Web viewer, CMS (DSS/PSS) and DMSS
  • 4.1 mm to 16.4 mm Motorized Lens
  • Maximum IR LED Length 50 m (164 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System with Intelligent Business Analysis
  • Five-year Warranty

Compression

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA121PFA121
Accessories Combo 2 PFA121PFA121 PFA150PFA150
Accessories Combo 3 PFA121PFA121 PFA152PFA152
Accessories Combo 4 PFA121PFA121 PFA151PFA151

Specifications

Camera
Image Sensor 1/1.8-in. 6 MP CMOS
Effective Pixels 3072(H) x 2048(V)
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Minimum Illumination Color: 0.02 Lux at F1.53
  B/W: 0 Lux at F1.53 (IR on)
S/N Ratio More than 50 dB
IR Distance Distance up to 50.0 m (164.04 ft)
IR On/Off Control Auto, Manual
IR LEDs Four (4)
Lens
Lens Type Motorized /Auto Iris (HALL)
Mount Type Board-in
Focal Length 4.1 mm to 16.4 mm motorized
Max. Aperture F1.53
Angle of View Horizontal: 86° to 35°
  Vertical: 57° to 25°
Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 0.50 m (1.64 ft)
Pan/Tilt/Rotation
Range Pan: 0° to 360°
  Tilt:0° to 90°
  Rotation: 0° to 360°
Intelligence
IVS Tripwire, Intrusion, Abandoned/Missing Object
Advanced Intelligent Functions Face Detection, People Counting, Heat Map
Video
Compression H.265, H.264
Streaming Capability Three (3) Streams
Resolution 6 MP (3072 x 2048), 5 MP (2560 x 1920),
  3 MP (2048 x 1536), 3 MP(2304 x 1296),
  1080p (1920 x 1080), 1.3 MP (1280 x 960),
  720p (1280 x 720), D1 (704 x 480),
  VGA (640 x 480), CIF (342 x 240)
Frame Rate Main Stream: 6 MP at 30 fps
  Sub Stream 1: D1 at 30 fps
  Sub Stream 2: 1080p at 30 fps
Bit Rate Control CBR, VBR
Bit Rate H.264: 24 to  16384 Kbps
  H.265: 14 to 9984 Kbps
Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, DWDR, SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) Support
Smart IR Support
Defog Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off, On
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (100/1000 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP,
  DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP,
  Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS
  Local PC for instant recording
  Mirco SD card 128 GB
Web Viewer IE, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
Interface
Audio Interface In: One (1) Channel
  Out: One (1) Channel
Alarm In: Two (2) Channel
  Out: One (1) Channel
Electrical
Power Supply 12 VDC, PoE (802.3af, Class 4)
Power Consumption < 13 W
Environmental
Operating Conditions -40° C to +60° C (-40° F to +140° F),
  Less than 95% RH
Storage Conditions -40° C to +60° C (-40° F to +140° F),
  Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 273.20 mm x 95.0 mm x 96.40 mm
  (10.76 in. x 3.74 in. x 3.79 in.)
Net Weight 1.12 kg (2.47 lb)
Gross Weight 1.52 kg (3.35 lb)
