NK8BA4

float


float

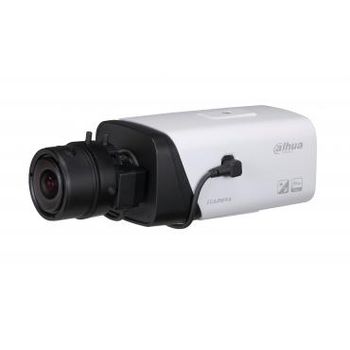

NK8BA4 DHIPCHF812A0EN.jpg
Series: Ultra
Image Sensor: 1/1.7” 12M Exmor R CMOS
Resolution: 4000x3000
H Field of View: -
Min. Illumination: 0.05Lux/F1.2(Color) & 0.005Lux/F1.2(B/W)
Day/Night: ICR
Max. IR Range: -
WDR: DWDR
Compression: H.264H/MJPEG/JPEG
FPS: 20fps@12MP; 30fps@4K
Multi-Streaming: 3 Streams
IVS: -
ONVIF: 2.4
Audio In: 1
Audio Out: 1
Built In Microphone: 1
Memory Slot: Micro SD-Max 128GB
Alarm In: 2
Alarm Out: 1
IP Rating: -
IK Rating: -
Working Temp: -20°F to 140°F
Power: DC12V/ac24v, PoE (802.3af), Max 8W
Firmware: URL

Features

  • 1.7-in. 12 MP Progressive Scan CMOS
  • Triple-stream Encoding with H.265 and H.264 Compression
  • 12 MP at 20 fps (4000 x 3000) and 4K at 30 fps (3840 x 2160)
  • Digital WDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Multiple Network Monitoring: Web Viewer, CMS (DSS/PSS) and DMSS
  • Auto Back Focus (ABF)
  • Micro SD Memory, PoE
  • Intelligent Video System with Intelligent Business Analysis
  • Five-year Warranty

Compression

Example Photos

Firmware

Firmware Update Instructions

Firmware Update Download

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA122PFA122 PFB110WPFB110W
Accessories Combo 2 PFB121WPFB121W PFA121PFA121
Accessories Combo 3 PFB110WPFB110W
Accessories Combo 4 PFB121WPFB121W
Accessories Combo 5 PFB110WPFB110W
Accessories Combo 6 PFB110WPFB110W PFA122PFA122 PFA150PFA150
Accessories Combo 7 PFB121WPFB121W PFA121PFA121 PFA150PFA150
Accessories Combo 8 PFB110WPFB110W PFA122PFA122 PFA151PFA151
Accessories Combo 9 PFB121WPFB121W PFA121PFA121 PFA151PFA151

Reset Button

HF81200EP Reset Button.JPG

Specifications

Category:IP CameraCategory:Spec Page

Camera
Image Sensor 1/1.7-in. 12 MP progressive scan CMOS
Effective Pixels 4000(H) x 3000(V)
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Minimum Illumination Color: 0.01 Lux at F1.2
  B/W: 0.001 Lux at F1.2
S/N Ratio More than 50 dB
Lens Mount C, CS
Video
Compression H.265, H.264
Streaming Capability Three (3) Streams
Resolution 12 MP (4000 x 3000), 4K (3840 x 2160),
  6 MP (3072 x 2048), 5 MP (2560 x 1920),
  3 MP (2048 x 1536), 3 MP (2304 x 1296),
  1080p (1920 x 1080), 1.3 MP (1280 x 960),
  720p (1280 x 720), D1 (704 x 480), VGA (640 x 480),
  CIF (342 x 240)
Frame Rate Main Stream: 12 MP at 20 fps, 4K at 30 fps
  Sub Stream: D1 at 30 fps
  Third Stream: 1080p at 30 fps
Bit Rate Control CBR, VBR
Bit Rate H.264: 24 to 16384 Kbps
  H.265: 14 to 9984 Kbps
Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, DWDR, SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Electronic Image Stabilization (EIS) Support
Defog Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (100/1000 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP;
  DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP;
  Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS
  Local PC for instant recording
  Mirco SD card, maximum 128 GB
Web Viewer IE , Safari
Management Software Smart PSS, DSS
Mobile Operating Systems IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
Interface
Video Interface One (1) port
Audio Interface Audio In: One (1) Channel
  Audio Out: One (1) Channel;
  One (1) Built-in Microphone
RS485 One (1) port
Alarm Alarm In: Two (2) Channels
  Alarm Out: One (1) Channel
Electrical
Power Supply 12 VDC, 24 VAC, PoE (802.3af, Class 0)
Power Consumption class="xl66" width="308"
