DH-SD22A204TN-GN-W

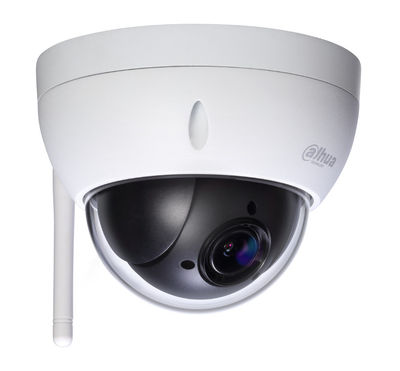

DH-SD22A204TN-GN-W DH-SD22A204TN-GN-W.jpg
Series: Wi-Fi
Image Sensor: 1/2.7” 2Mp CMOS
Lens: 2.7~11mm(4x Optical zoom)
Resolution: 3M(2304×1296)
H Field of View: 112.5° ~ 30°
Min. Illumination: 0.05Lux/F1.6(Color); 0.005Lux/F1.6(B/W)
Day/Night: ICR
Max. IR Range: 30m
WDR: 120dB
Compression: H.264/MJPEG
FPS: 20fps@3M, 30fps@1080P
Multi-Streaming: 2 Streams
Pan/Tilt/Zoom 300 Presets,Pan: 0° ~ 355°
Tilt: 0° ~ 90°
Rotation: 0°~355°
Preset Speed: Pan: 100° /s; Tilt: 60° /s
IVS: Tripwire, Intrusion

Abandoned/Missing
Face Detection

ONVIF: 2.4
Audio In: -
Audio Out: -
Memory Slot: 128GB
Alarm In: -
Alarm Out: -
Wi-Fi: Wi-Fi(IEEE802.11b/g/n)
50m(open field)
Wi-Fi Smart Config: Yes
IP Rating: 67
IK Rating: 10
Working Temp: -30°C~+60°C
Power: DC5V, Max 10W
Firmware: URL

Features

  • Max 60fps@720p and & 30fps@1080p
  • Powerful 4x Optical Zoom
  • True WDR
  • Intelligent Video System (optional)
  • Outdoor Rated IP66
  • Vandal Resistant IK10
  • WiFi

Compression

FOV

Example Photos

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system: Click Here to Download

Firmware Changelog

  • Build Date: 1/29/16
  • English, French, Spanish optional,English default
  • NTSC

Compatible Accessories

Accessories Combo 1

Accessories Combo 2

Accessories Combo 3

Accessories Combo 4

Specifications

Camera
Image Sensor 1/2.7" Exmor CMOS
Effective Pixels 1944 H x 1092 V
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Minimum Illumination Color: 0.05Lux@F1.6;
B/W: 0.005Lux@F1.6;
0Lux (IR on)
S/N Ratio More than 50dB
Lens
Lens Type Motorized/ Auto Iris
Mount Type Board-in
Focal Length 2.7mm~11mm (4x Optical zoom)
Max Aperture F1.6 ~ F2.8
Angle of View H: 112.5° ~ 39°
Focus Control Auto / Manual
Close Focus Distance 100mm~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 355° endless; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Presets 300 (DH-SD)
PTZ Mode 8 Tour, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
Intelligence
IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection
Video
Compression H.264 / MJPEG
Streaming Capability 3  Streams
Resolution 1080p (1920×1080) / 720p (1280×720) / D1 (704×576/704×480) / CIF (352×288/352×240)
  Main Stream 1080p / D1 (1 ~ 30fps), 720p (1~60fps), Sub Stream1  D1/CIF (1 ~ 30fps)
  Sub Stream2 720P/D1/CIF (1 ~ 30fps)
Bit Rate Control CBR / VBR
Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Day/Night Auto (ICR) / Color / B/W
BLC Mode BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Up to 24 areas
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi (IEEE802.11b/g/n) 50m (open field)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Interoperability ONVIF, PSIA, CGI
Streaming method Unicast / Multicast
Max. User Access 20
Edge Storage Micro SD (128GB) Memory Status Display (Normal / Error/ Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for Instant Recording, Micro SD, Max 128GB
Web Viewer IE10….
Management Software Smart PSS, DSS
Smart Phone Android, Ios
Certifications
Certifications FCC (SEFD1505003-A)
UL (E234884-A67-UL)

Electrical
Power Supply DC12V
Power Consumption Max. 10W
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
*Start up should be done at above -35°C (-31°F)
Storage Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP66, IK10
Construction
Casing Metal+Plastic
Dimensions Φ122 mm x 89 mm (Φ4.80" x 3.50")
Net Weight 0.5kg (1.10lbs)
Gross Weight 0.6kg (1.32lbs)
