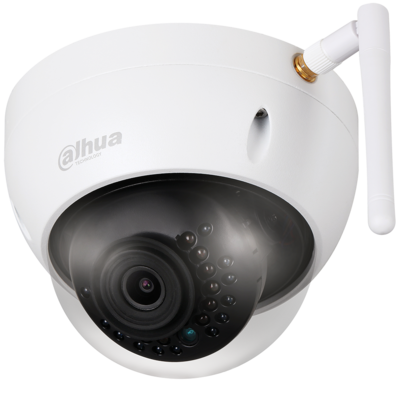

N41BL12-W


float



Features

  • 1/3-in. 4 MP Progressive-scan CMOS Sensor
  • 2.4 GHz WiFi (IEEE802.11a/b/g/n/ac)
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Dual-stream Encoding
  • 4 MP at 20 fps
  • 2.8 mm Fixed Lens
  • True Day/Night (ICR)
  • Maximum IR Distance 30 m (98 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Firmware

Firmware Update Instructions

Firmware Update Download

Specifications

Camera
Image Sensor 1/3-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688 (H) x 1520 (V)
RAM/ROM 512 MB / 32 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1 s to ~1/100,000 s
Minimum Illumination Color: 0.53 lux at F2.0 (1 s, 30 IRE)

0 Lux at F2.0 (IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 30 m (98.04 ft)
IR On/Off Control Auto, Manual
IR LEDs 24
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm
Maximum Aperture F2.0
Angle of View Horizontal: 106°

Vertical: 56°

Diagonal: 127°

Focus Control Fixed
DORI¹ Distance
Detect Observe Recognize Identify
63 m (207 ft) 25 m (82 ft) 13 m (43 ft) 6 m (20 ft)
Installation Angle
Range Pan: 0° to 355°

Tilt: 0° to 65°

Rotation: 0° to 355°

Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Streaming Capability Two (2) Streams
Resolution 4 MP (2560 x 1440), 3 MP (2304 x 1296), 1080p (1920 x 1080),

SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720),

VGA (640 x 480), QVGA (320 x 240)

Frame Rate Main Stream 4 MP at 20 fps, 3 MP at 30 fps, 1080p at 30 fps,

1.3 MP at 30 fps, or 720p at 30 fps

Sub Stream VGA or QVGA at 30 fps
Bit Rate Control CBR, VBR
Bit Rate H.265: 9 K to 8448 Kbps
Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, Digital WDR
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Smart IR Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Network
Ethernet RJ-45 (10/100 Base-T)
WiFi 2.4 GHz WiFi (IEEE802.11a/b/g/n/ac)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP,

DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP,

Bonjour, 802.1x, Multicast, ICMP, IGMP

Interoperability PSIA, CGI
Streaming Method Unicast, Multicast
Maximum User Access 10 Users / 20 Users
Edge Storage Network Attached Storage (NAS)

Local PC for Instant Recording,

Micro SD card Slot, maximum 128 GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL 60950
Electromagnetic Compatibility

(EMC)

FCC CFR 47 Part 15 Subpart B

2AATL-8112MET

Electrical
Power Supply 12 VDC, 1 A
Power Consumption < 6.5 W
