DHI-NVR52A08-8P-4KS2

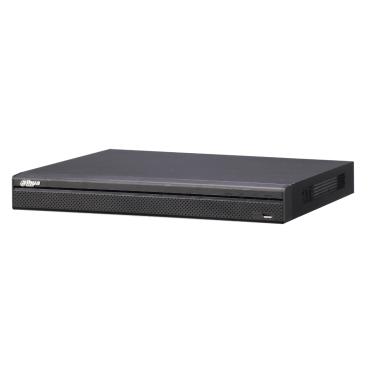

DHI-NVR52A08-8P-4KS2 NVR52A08.jpg
Series: Pro
Compression: H.264/MJPEG
Channels: 8
Input Bandwidth: 320Mbps
Record Bandwidth: 320Mbps
Max Decode: 4ch@4K, 8ch@1080P
Video Output: 1 HDMI, VGA
HDD: 2x6TB
RAID: -
eSATA: 1
Mini SAS: 0
Audio In: 1
Audio Out: 1
Alarm In: 16
Alarm Out: 6
Network: 1 Gigabit Ports
POE: 8
USB: 1 USB 3.0, 1 USB 2.0
Power: AC100V~240V, 50~60Hz,
Redundant<40W(No HDD)
IVS: Yes
Fisheye Dewarp: Yes
POS: Yes
Firmware: URL

Features

  • Up to 8/16/32 channel IPC input
  • H.265/H.264/MJPEG/MPEG4 codec decoding
  • Max 320Mbps incoming bandwidth
  • Up to 12Mp resolution preview&playback
  • Max 16ch@1080P H.265/H.264 decoding
  • HDMI/VGA simultaneous video output
  • 4/8/16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)
  • Support IPC UPnP, 8PoE ports for PoE model
  • Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)

Firmware

You can update your device with the NVR Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

1. Apply this update to your system first: Click Here To Download


Firmware Changelog

  • Build Date: 07/21/2016
  • English, French, Spanish optional, English default, NTSC

Intelligent Features

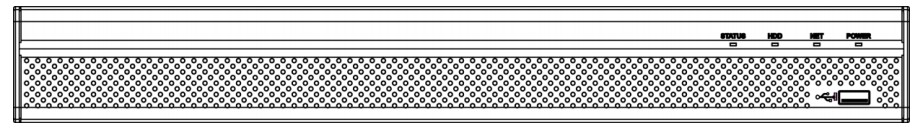

Front Panel

HCVR42XXA-S2/ HCVR4216AN-S2/ HCVR52XXA-S2/HCVR5216AN-S2/ HCVR720XA-S2 Series Front Panel

HCVR42XXA-S2HCVR4216AN-S2 HCVR52XXA-S2 Front Panel.jpg

Back Panel

NVR42-8P-4K Series

The NVR42-8P-4K series rear panel is shown as below.


Icon

Port Name

Function

Power socket

/

Input AC 220V.

Power switch

/

Power on/off button.

PoE  PORTS

PoE port

Built-in Switch,support PoE. The PoE PORTS can provide power to the network camera.

The 8 PoE ports series product can support 48V 120W.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

USB3.0 port

USB3.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

  • Bidirectional talk output.
  • Audio output on 1-window video monitor.
  • Audio output on 1-window video playback.

1~4

Alarm input port 1~4

  • They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).
  • When your alarm input device is using external power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

N1,N2

Alarm output port 1~2

  • 2 groups of alarm output ports.(group 1:port NO1~C1, group 2:port NO2~C2). Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.
  • NO:Normal open alarm output port.
  • C:Alarm output public end.

C1~C2

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

Specifications

Model DHI-NVR52A08-8P-4KS2
DHI-NVR52A08-8P-4KS2
DHI-NVR52A16-4KS2
DHI-NVR52A16-8P-4KS2
DHI-NVR52A32-4KS2
DHI-NVR52A32-8P-4KS2
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Video& Audio
IP Camera Input 8 channel 16 channel 32 channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
Interface 1 HDMI (up to 3840x2160), 1 VGA
Resolution 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9 1/4/8/9/16 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264/MJPEG/MPEG4
Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Record Rate 320Mbps
Bit Rate 16kbps~ 20Mbps for per channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 4 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1/4/8 1/4/8/16 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 8 ports (IEEE802.3af/at) for PoE model
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 2 SATA ports, up to 12TB
Auxiliary Interface
USB 2 ports (1 Rear USB3.0,1 Front USB2.0)
RS232 1 port, For PC communication&Keyboard
General
Power Supply Single, DC12V/4A for non-PoE model
Single, AC 100~240V, 50/60 Hz for PoE model
Power Consumption NVR: 9.5 W for non-PoE model(without HDD)
15.2W for PoE model(without HDD)
PoE: Max 25.5W for single port, 130W in total
Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension
(W×D×H)
1U, 375mm×282mm×56mm(non-PoE model)
375mm×327mm×53mm(PoE model)
Weight 1.6KG for non-PoE model(without HDD)
2.6KG for PoE model(without HDD)
