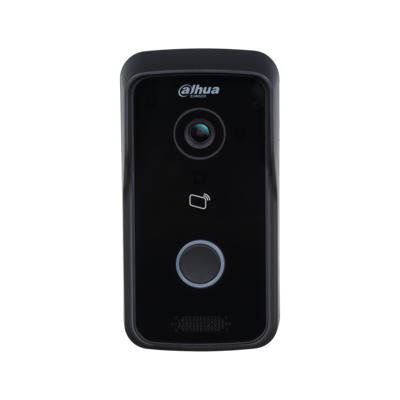

DHI-VTO2111D-WP



float


Features

  • 1/4-in. 1 MP CMOS Imager
  • Wide-angle Field of View
  • Night Vision
  • Voice Indication
  • Remote Intercom with Mobile Application
  • Surface-mounted
  • Default IP address 192.168.1.110

Firmware Update Instructions

Firmware Update Download

Configuration Limitations

  • 1 VTO maximum
  • 1 VTH in main mode maximum
  • 4 VTH in sub mode maximum

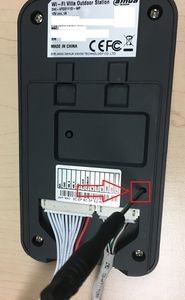

Reset Button


Specifications

System
Main Processor Embedded Micro Processor
Operating System Embedded Linux
Operation
Keypad Single Mechanical Button
Reader MIFARE Card
Detection Distance 1 m (39.37 in.)
Video
Video Compression H.264
Image Sensor 1/4-in. 1 MP CMOS Sensor
Lens 2.2 mm
Angle of View Horizontal: 105°
Vertical: 125°
Day/Night  ICR
Interface
Audio Input: Omnidirectional Microphone
  Output: Built-in Speaker
  Two-way Talk
Audio Compression G.711
Door Control Two (2) Channels:
  One (1) Relay Out for Main Lock
  One (1) Channel Extended by Access Control Module
Alarm Input Two (2) Channels:
  One (1) Channel, Unlock Button
  One (1) Channel, Feedback
RS485 One (1) Port
Tamper Switch One (1)
Memory Micro SD, 64 GB maximum
Network
WiFi IEEE 802.11b/g/n
Ethernet 10/100 Mbps, Self-adaptive
Network Protocol TCP/IP
Certifications
Safety EN 60950:2006+A2:2013
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B
  ANSI C63.4 - 2009
  EN 55022:2010, EN 55024:2010, EN 50130-4:2011,
  EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009
  EN 61000-3-3:208, IEC 61000-4-2:2008,
  IEC 61000-4-3:2010, IEC 61000-4-4:2012,
  IEC 61000-4-5:2005, IEC 61000-4-6:2008,
  IEC 61000-4-8:2009, IEC 61000-4-11:2004
Electrical
Power 12 VDC, PoE (802.3 af)
Power Consumption Standby: ≤ 1 W
  Operation: ≤ 7 W
Environmental
Operating Temperature -30° C to +60° C (-22° F to +140° F)
Operating Humidity 10% to 90%, Relative
Ingress Protection IP65
Construction
Material Plastic
Dimensions 135.0 mm x 70.40 mm x 34.40 mm
  (5.31 in. x 2.77 in. x 1.35 in.)
Net Weight 0.40 kg (0.88 lb)
Installation Surface- or Flush-mount
