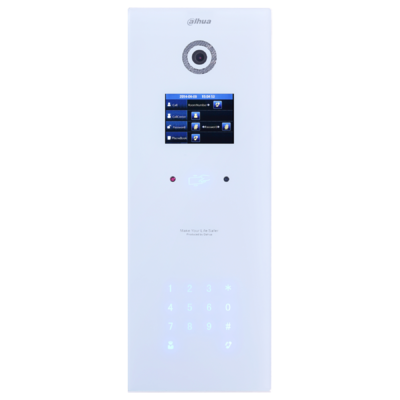

VTO1220BW


float

Features

  • HD CMOS camera
  • Tempered glass panel, IP65
  • Night vision & Voice indication
  • Local card openning
  • Video & Audio messaging
  • Flush mounted

Firmware Update Instructions

Firmware Update Download

Accessories

Configuration Limitations

  • 20 Apartment VTO maximum
  • 200 VTH maximum

VTH Setup Instructions

Specifications

Technical Specification

Model

VTO1220BW

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/3” 1.3MP CMOS

Lens

3.6mm

Angle of View

D:95° H:75°

Day/Night

Color Image

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Display

LCD Screen

3.5" TFT 320x240

Operation Mode

Keypad

Touch Button

Reader

Mifare Card

Approaching Induction

Body approaching

1m

Interface

Door Control

1

Alarm In

2(1ch unlock button, 1ch feedback)

RS485

1

Network

Ethernet

10M/100Mbps

Network Protocol

TCP/IP

General

Ingress Protection

IP65

Tamper Switch

1

Installation

Flush

Material

Tempered glass

Power

DC 12V

Power Consumption

Standby ≤1W, Work ≤10W

Working Temperature

﹣40°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

150.0mm×408.0mm×46.4mm

Weight

1.6Kg
