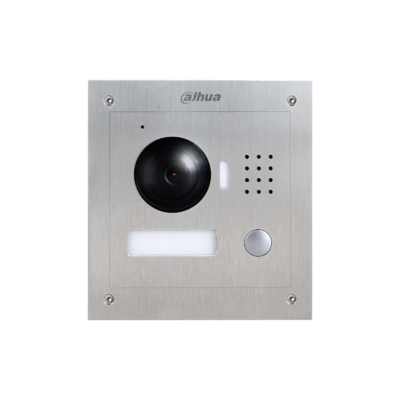

VTO2000A


float

Features

  • HD CMOS camera
  • Stainless steel panel, IP54,IK07
  • Night vision &Voice indication
  • Video & Audio messaging
  • Remote intercom with mobile APP
  • Surface mounted & Flush mounted

Firmware Update Instructions

Firmware Update Download

Configuration Limitations

  • 20 Villa VTO maximum
  • 5 VTH maximum
  • Push notifications only work if a VTH is added to this device

Password Reset

Important: Must be on version 2017-04-02 v3.100.0000.0.R

  • Press the tamper button five times, you'll hear the tamper siren and a quick beep afterward indicating that the reset was successful

VTO2000A Reset.jpg

Specifications

Technical Specification

Model

VTO2000A

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/3” 1.3MP CMOS

Lens

2.8mm

Angle of View

D:120° H:90°

Day/Night

Color Image

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Operation Mode

Keypad

Single Mechanical Button

Interface

Door Control

2(1 relay out for main lock, 1 extended by access control module)

Alarm In

2(1ch unlock button, 1ch feedback)

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Ingress Protection

IP54, IK07

Tamper Switch

1

Installation

Surface & Flush

Material

Stainless Steel

Power

DC 12V

Power Consumption

Standby ≤1W, Work ≤10W

Working Temperature

﹣40°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

129.9mm×32.2mm×140mm

Weight

0.8Kg
