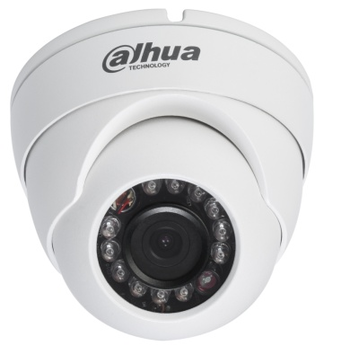

==DH-IPC-HDW44A1MN==
+
=DH-IPC-HDW44A1MN=
−
[[File:DH-IPC-HDW44A1MN(-I).png|right|400px]]
+
__NOTOC__
 +
{| class="wikitable" style="width: 100%;"
 +
|+DH-IPC-HDW44A1MN
 +
|-
 +
!|Specifications
 +
!|Manual
 +
!|Firmware
 +
|-
 +
|<!--{{Template:DH-IPC-HDW44A1MN_Specification_Template}}-->
 +
|<!--{{Template:IPCamera-Manual}}-->
 +
|<!--{{Template:DH_IPC-HX4X2X-Themis}}-->
 +
|-
 +
|}
 +

 +

 +
[[file:DH-IPC-HDW44A1MN(-I).png|right|350px]]
 +

 +
===EOL Date===
 +
*Upon stock liquidation
 +

 +


−
[[file:PDFDownloadBanner.jpg|float|link=https://dahuawiki.com/index.php?action=ajax&title=-&rs=SecureFileStore::getFile&f=/f/f6/IPCamManual3.0.pdf|600px]]


−
===Features===

−
* Max 20fps@4MP (2688×1520) & 30fps@3MP (2304×1296)

−
* True WDR (120dB)

−
* True Day/Night

−
* Fixed Lens Options 2.8mm, 3.6mm

−
* Smart IR 30m (98ft)

−
* Outdoor Rated IP67

−
* Intelligent Video System


−
===Firmware===

−
{{Template:IPCFirmwareToolkit}}

−
====Firmware Update Instructions====

−
*[[Firmware/Update_Firmware_via_USB|Instructions for Firmware Update via USB]]

−
*[[Firmware/Update_Firmware_via_ConfigTool|Instructions for Firmware Update via ConfigTool]]

−
*[[Firmware/Update_Firmware_via_Web_Browser|Instructions for Firmware Update via Internet Explorer]]


−
====Firmware Update Download====

−
<html><iframe src="https://docs.google.com/spreadsheets/d/1ag1rC1sdDUKLJj-6JtcBo8gzFaN6v7IeflXspE5s5ng/pubhtml?gid=286122348&range=E35&amp;single=true&amp;widget=false&amp;headers=false&amp;chrome=false"

−
width="200px"

−
height="50px"

−
frameBorder="0">

−
</iframe></html>


−
====Firmware Changelog====
+
===EOL: End of Life===
−
*Build Date: 12/19/2016
+
EOL Date: 7/5/2017
−
*1.Support H.264+; 2.English, French, Spanish optional,English default,NTSC


−
===Intelligent Features===
+
====Suggested Replacement====

<gallery>

<gallery>
−
File:IVSIconFaceRecognition.png|link=FacialRecognition|Face Recognition
+
File:HDW42A1.jpg|link=USA/IPCamera/Pro/DH_IPC_HDW44A1EN|[[USA/IPCamera/Pro/DH_IPC_HDW44A1EN|DH-IPC-HDW44A1EN]]
−
File:IVSIconTripwire.png|link=Tripwire|Tripwire

−
File:IVSIconIntrusion.png|link=IntrusionDetect|Intrusion

−
File:IVSIconMissingAbandonDetection.png|link=AbandonedMissing|Abandoned/Missing

−
file:IVSIconSceneChange.jpg|link=SceneChange|Scene Change


</gallery>

</gallery>

−
===Compatible Accessories===

−
{{Template:HDW4xxx_Accessories_Template}}


−
===Reset Button===
+
===FOV===
−
[[File:IPC-HDW4221M_reset_button.JPG|600px]]
+
<gallery mode=nolines widths=200px>
 +
File:4.0MP,1.3,2.8mm,51.1m.JPG|Camera Height: 10m <br /> Focal Length: 2.8mm<br /> Target Horizontal Dist: 51.1m
 +
File:4.0MP,1.3,3.6mm,66.2m.JPG|Camera Height: 10m <br /> Focal Length: 3.6mm<br /> Target Horizontal Dist: 66.2m
 +
</gallery>
 +


−
===Specifications===
+
====Firmware Update Instructions====
−
{| class="wikitable" border="0" width="965" cellspacing="1" cellpadding="0"
+
*[[Firmware/Update_Firmware_via_USB|Instructions for Firmware Update via USB]]
−
|-
+
*[[Firmware/Update_Firmware_via_ConfigTool|Instructions for Firmware Update via ConfigTool]]
−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Camera'''
+
*[[Firmware/Update_Firmware_via_Web_Browser|Instructions for Firmware Update via Internet Explorer]]
−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Image Sensor

−
| valign="top" bgcolor="#ffffff" width="393"|1/3” 4Megapixel progressive scan CMOS

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Effective Pixels

−
| valign="top" bgcolor="#ffffff" width="393"|2688(H)x1520(V)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Scanning System

−
| valign="top" bgcolor="#ffffff" width="393"|Progressive

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Electronic Shutter Speed

−
| valign="top" bgcolor="#ffffff" width="393"|Auto/Manual, 1/3(4)~1/100000s

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Min. Illumination

−
| bgcolor="#ffffff" width="393"|0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|S/N Ratio

−
| bgcolor="#ffffff" width="393"|More than 50dB

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Video Output

−
| bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Camera Features'''

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Max. IR LEDs Length

−
| valign="top" bgcolor="#ffffff" width="393"|30m

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Day/Night

−
| valign="top" bgcolor="#ffffff" width="393"|Auto(ICR)/Color/B/W

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Backlight Compensation

−
| valign="top" bgcolor="#ffffff" width="393"|BLC / HLC / WDR(120dB)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|White Balance

−
| valign="top" bgcolor="#ffffff" width="393"|Auto/Sunny/Night/Outdoor/Customized

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Gain Control

−
| valign="top" bgcolor="#ffffff" width="393"|Auto/Manual

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Noise Reduction

−
| valign="top" bgcolor="#ffffff" width="393"|3D

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Privacy Masking

−
| valign="top" bgcolor="#ffffff" width="393"|Up to 4 areas

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Lens'''

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Focal Length

−
| valign="top" bgcolor="#ffffff" width="393"|3.6mm (2.8mm optional)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Max Aperture

−
| valign="top" bgcolor="#ffffff" width="393"|F2.0(F2.0/F2.0)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Focus Control

−
| valign="top" bgcolor="#ffffff" width="393"|Manual

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Angle of View

−
| valign="top" bgcolor="#ffffff" width="393"|H: 84°/106°/56°

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Lens Type

−
| valign="top" bgcolor="#ffffff" width="393"|Fixed lens

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Mount Type

−
| valign="top" bgcolor="#ffffff" width="393"|Board-in Type

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Video'''

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Compression

−
| valign="top" bgcolor="#ffffff" width="393"|H.264/H.264B/H.264H/ MJPEG

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Resolution

−
| valign="top" bgcolor="#ffffff" width="393"|

−
4M(2688×1520)/4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/ <br />720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)


−
|-
+
===Compatible Accessories===
−
| rowspan="3" bgcolor="#ffffff" width="44"|Frame Rate
+
{{Template:HDW4xxx_Accessories_Template}}
−
| valign="top" bgcolor="#ffffff" width="47"|Main Stream

−
| valign="top" bgcolor="#ffffff" width="393"|4M(1~20fps)/3M(1~30fps)

−
|-

−
| valign="top" bgcolor="#ffffff" width="47"|Sub Stream

−
| valign="top" bgcolor="#ffffff" width="393"|D1/CIF(1 ~ 30fps)

−
|-

−
| bgcolor="#ffffff" width="47"|Third Stream

−
| valign="top" bgcolor="#ffffff" width="393"|720P(1-20fps)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Bit Rate

−
| valign="top" bgcolor="#ffffff" width="393"|H.264: 32K ~ 10Mbps

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Corridor Mode

−
| valign="top" bgcolor="#ffffff" width="393"|Support

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Audio'''

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Compression

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Interface

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Smart Function'''

−
|-

−
| colspan="2" rowspan="6" bgcolor="#ffffff"|Smart detection

−
| valign="top" bgcolor="#ffffff" width="393"|Tripwire

−
|-

−
| valign="top" bgcolor="#ffffff" width="393"|Intrusion

−
|-

−
| valign="top" bgcolor="#ffffff" width="393"|Abandoned/Missing

−
|-

−
| valign="top" bgcolor="#ffffff" width="393"|Scene Change

−
|-

−
| valign="top" bgcolor="#ffffff" width="393"|Audio detect

−
|-

−
| valign="top" bgcolor="#ffffff" width="393"|Face detect

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Network'''

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Ethernet

−
| valign="top" bgcolor="#ffffff" width="393"|RJ-45 (10/100Base-T)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Wi-Fi

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Protocol

−
| valign="top" bgcolor="#ffffff" width="393"|

−
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,


−
RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x


−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Compatibility

−
| valign="top" bgcolor="#ffffff" width="393"|ONVIF,PSIA,CGI

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Max. User Access

−
| valign="top" bgcolor="#ffffff" width="393"|20 users

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Smart Phone

−
| valign="top" bgcolor="#ffffff" width="393"|iPhone, iPad, Android, Windows Phone

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''Auxiliary Interface'''

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Memory Slot

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|RS485

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Alarm

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|PIR Sensor Range

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="3" valign="top" bgcolor="#f5f5f5"|'''General'''

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Power Supply

−
| valign="top" bgcolor="#ffffff" width="393"|DC12V, PoE (802.3af)

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Power Consumption

−
| valign="top" bgcolor="#ffffff" width="393"|< 5W

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Working Environment

−
| valign="top" bgcolor="#ffffff" width="393"|-30°C~+60°C, Less than 95% RH

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Ingress Protection

−
| valign="top" bgcolor="#ffffff" width="393"|IP67

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Vandal Resistance

−
| valign="top" bgcolor="#ffffff" width="393"|N/A

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Dimensions

−
| valign="top" bgcolor="#ffffff" width="393"|Φ108mm×84mm

−
|-

−
| colspan="2" valign="top" bgcolor="#ffffff"|Weight

−
| valign="top" bgcolor="#ffffff" width="393"|0.25Kg(0.38Kg with packaging)

−
|}



[[Category:IP Camera]]

[[Category:IP Camera]]

Latest revision as of 23:05, 20 June 2024

DH-IPC-HDW44A1MN

DH-IPC-HDW44A1MN
Specifications Manual Firmware



EOL Date

  • Upon stock liquidation




EOL: End of Life

EOL Date: 7/5/2017

Suggested Replacement


FOV

  • Camera Height: 10m
    Focal Length: 2.8mm
    Target Horizontal Dist: 51.1m

  • Camera Height: 10m
    Focal Length: 3.6mm
    Target Horizontal Dist: 66.2m


Firmware Update Instructions

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA121PFA121
Accessories Combo 2 PFB204WPFB204W
Accessories Combo 3 PFA13APFA13A
Accessories Combo 4 PFB204WPFB204W PFA152PFA152
