Access Control/How To Wire a Wiegand Reader

Wiegand Protocol

Description

Dahua access control device is designed to interface with third-party access control device using Wiegand protocol. The main objective is to connect devices to electronic entry systems via a specific protocol language.

Note: If you are not using Dahua Card/ Key Fob, It is important to check the Card/ Key Fob frequency prior to your installation. Card/ Key Fob MUST be in a supported frequency, which is 13.56Mhz.

This page will provide you instruction of how to setup Third-party Access Controller with Dahua Card Reader. For instruction of how to wire Third-party card reader to Dahua Access Controller, please click here.

Prerequisites

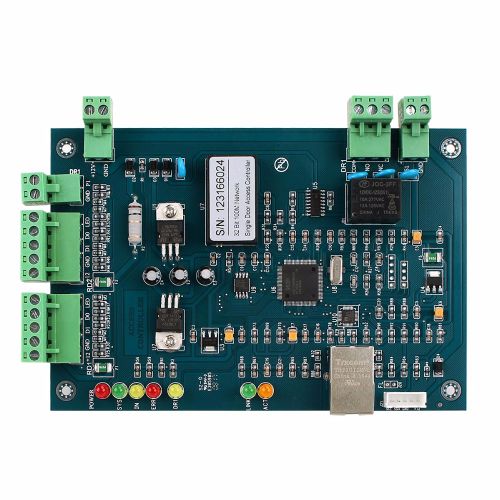

1. Thirdparty Access Door Controller


2. 12v DC Power Supply

3. LED light

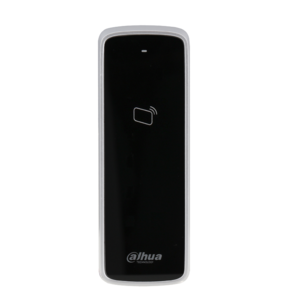

4. DHI-ASR1200 and DHI-ASR-1100

ASR1200D.png ASR1100B.png

Video Instruction

Step by Step instruction

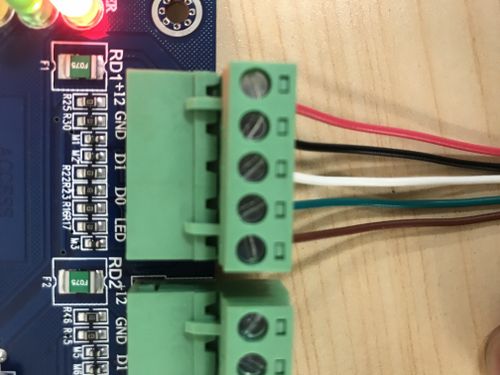

In this article, we are testing Third Party access controller with some of our card reader type. DHI-ASR1200 and DHI-ASR-1100. Below are the wiring diagram to connect the card reader using Wiegand Protocol:

Wire Color Port
Red 12v Power
Blue Case
Black GND
White D1
Green D0
Brown LED


The Operation of LED is controlled by the Access Controller, the LED operation may vary depending on the Access Controller software. The normal behavior, the LED on card reader will turn Green to indicate that card is read and privileged.


1. Wire the Access Controller to 12v DC power supply.

2. Route the interface cable from the reader to access controller device. Refer to the wire diagram above.


3. After wiring the reader and access controller, power up the access controller device.

4. Connect your access controller device to the network and access it from the computer in the local network. Follow the manufacture user guide to setup the controller, create user, assign permission, etc.

5. Once the access controller is configured properly, the reader is ready to be tested. Scan your card and you should hear the beeps. For this example, we wire a LED light indicator to connect to Alarm output interface from access controller. When the card is read and access is permitted, light turns Green.
