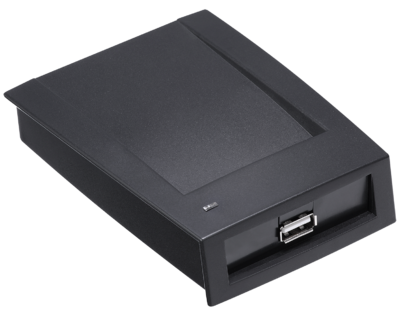

ASM100


Features

  • Default IC (MIFARE) Card
  • Plug-and-Play Technology
  • USB Power Supply and Communication
  • Audible Indicator

Specifications

System
Main Processor 32-bit
LCD Display Blue Backlight
Audible Indicator Buzzer
Reader
Format 13.56 MHz MIFARE
Distance > 3 cm (> 1.18 in.)
Interface
Communication USB
Certifications
Safety EN 60950:2006+A2:2013
  Conforms to UL Standards
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B
  EN 55032:2015
  EN 55024:2010+A1:2015
  EN 50130-4:2011+A1:2014
  EN 6100-3-2:2014
  EN 6100-3-3:2013
Electrical/Environmental
Power Supply 5 VDC, 100 mA
Operating Temperature -30° C to +60° C (-22° F to +140° F), ≤ 95% RH
Construction
Color Black
Dimensions 105.0 mm x 75.0 mm x 20.0 mm
  (4.13 in. x 2.95 in. x 0.79 in.)
Net Weight 0.18 kg (0.40 lb)
Accessory - IC Card
Model Number MF11CS50
Standard MIFARE S50, 13.56 MHz
Compatibility ISO/IEC 14443A
Range Approximately 10 cm (3.94 in.)
Dimensions 86.0 mm x 54.0 mm x 0.80 mm
  (3.39 in. x 2.13 in. x 0.03 in.)
Weight 0.006 kg (0.013 lb)
Manufacturer/Brand Dahua
