PFM820 Physical Setup

Description

These instructions will show you how to physically connect the PFM820 to an HD-CVI camera to either access the OSD or change the video output mode.

Prerequisites

  • HD-CVI Camera
  • PFM820
  • HD-CVI Camera Power Supply
  • BNC Cable
  • HD-CVI Recorder

Video Instructions

Step by Step Instructions

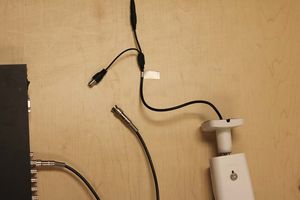

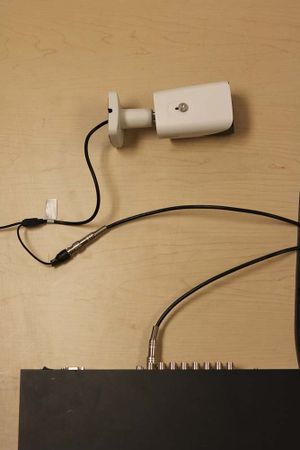

1. Locate the camera's BNC connection and disconnect the BNC cable.

PFM820 Physical Setup1.JPG => PFM820 Physical Setup3.JPG

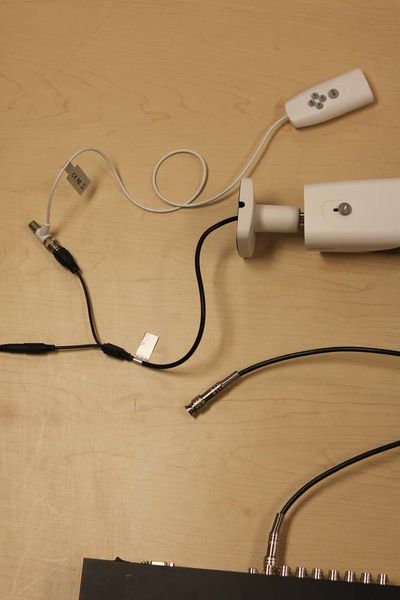

2. Attach the PFM820 to the cameras BNC connection.

PFM820 Physical Setup4.JPG

3. Attach the BNC cable from your recorder to the other end of the PFM820.

PFM820 Physical Setup6.JPG
