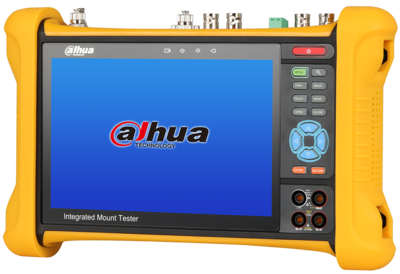

PFM906


UNDER CONSTRUCTION

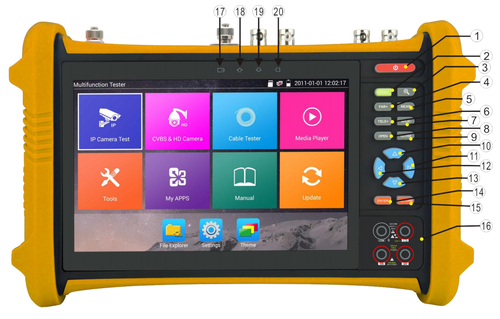

Front Panel

PFM906 Front Panel1.png

1. Tester

2. Adaptor DC12V 2A

3. Network cable tester

4. Polymer lithium ion battery (7.4V DC 5000mAh)

5. BNC cable

6. RS485 cable

7. SC,ST connector

8. Multi-meter test leads one pair of red and black

9. Output Power cable

10. Audio cable

11. TDR alligator clamp

12. Safety cord

13. Tool bag

14. Manual

(NOTICE:SD card is not default accessory, please purchase separately if necessary.)

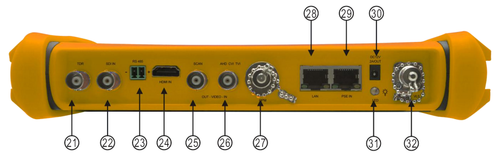

Top Interface

PFM906 Top Interface1.png

21. TDR cable test interface

22. SDI input (BNC interface)

23. RS485 Interface: RS485communication for the PTZ

24. HDMI IN

25. Video signal output(BNC interface)/ cable tracer interface

26. CVBS input /AHD /TVI/CVI Coaxial interface

27. Optical power meter interface

28. PoE power supply output or LAN test port (Use to test PoE or non-PoE IP camera)

29. PSE power sourcing equipment. Tests PoE voltage 30 DC 12V 2A power output , for provisional DC power supply

31. LED lamp

32. Visible red laser source emits Interface

33. Power

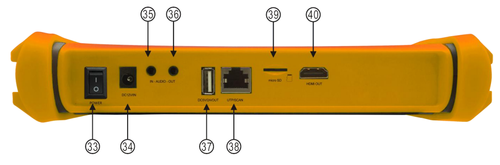

Bottom Interface

PFM906 Bottom Interface1.png

34. DC 12V 2A charging interface

35. Audio input

36. Audio output and earphone interface

37. USB 5V 2A power output (used only for power, not data)

38. UTP cable port: UTP cable tester port/ Cable tracer port

39. Micro SD card moveable 40 HDMI output interface

Instructions

Applications

Name Icon Description Instructions
CVI PFM906 CVI Icon.png Support 2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu. Instructions
AHD PFM906 AHD Icon.png Support 2560x1440P 15F/25F/30F,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu. Instructions
TVI PFM906 TVI Icon.png Support 2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu. Instructions
CVBS PFM906 CVBS Icon.png “TV out” testing app, it can send and receive color bar generator through the tester’s video out and video in” Instructions
SDI PFM906 SDI Icon.png HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS digital camera image test and video image zoom, record, snapshot, photo viewer and video playback. Instructions
Cable Tester PFM906 Cable Tester.png Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as display the serial number of the cable tester kit. Instructions
RJ45 TDR Test PFM906 RJ45 TDR Test Icon.png RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameters. Instructions
Cable Search PFM906 Cable Search Icon.png Cable identification by use of an audio signal. This function enables the blue cable tracer to find the connected cable from a bundle of cables with an audio tone Instructions
TDR PFM906 TDR Icon.png TDR cable test, test cable open circuit and short-circuit Instructions
Analog Video Generator PFM906 Analog Video Generator Icon.png Video generating, the PAL/NTSC multi-system color bar video generator and pure blue /black colorful imagines, by receiving the video color bar to test the video channel whether transmit normally. And judge whether the color is different, because of the transmission loss or interference, it suitable for video transmission of the field tests, such as optical video transmitter and receiver, video cable etc. The new function color bar can test the image whether shift. The color bar (red, green, blue, white, black) test the monitor whether have white or black dot etc. Instructions
Network Tool PFM906 Network Tool.png IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address Instructions
DMM PFM906 DMM Icon.png The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used for the DC and AC voltage measurement, AC and DC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking. It is easy operation and professionally accurate. Instructions
OPM PFM906 OPM Icon.png The Integrated Mount Tester adopts the most advanced handheld instrument specific integrated chip , achieve ultra-low power operation, with the 7 Retina High-definition screen display ,five wavelength calibration points 1625nm,1550nm ,1490nm , 1310nm , 1300nm , 850nm.Linear or nonlinear optical power display, it can measure the optical power value, and also be used for Relative measurement of optical fiber link loss. It is necessary tool for fibre-optic communication, cable television system and security system maintenance. Instructions
Data Monitor PFM906 Data Monitor Icon.png Captures and analyzes the command data from controlling device, also can send hexadecimal Instructions
VFL PFM906 VFL Icon.png Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, and Continuous light-emitting and 1Hz, 2Hz modulating light output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research. Instructions
Flashlight PFM906 Flashlight Icon.png Press the LED On/Off button to use the LED flashlight. Instructions
Rapid IP Discovery PFM906 Rapid IP Discovery Icon.png Rapid IP scan , auto scan whole network or other network device ‘s IP address Instructions
Rapid Video PFM906 Rapid Video Icon.png Rapid video, auto scan the IP camera address, via one key to view the image. Instructions
HIK PFM906 Hik Icon.png Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated Hikvision camera, also can display image from the Hikvision camera. Instructions
IP Discovery PFM906 IP Discovery.png IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address. Instructions
DH Test Tool PFM906 DH Test Tool Icon.png DH test tool app is design for Dahua Camera image test, modify IP, user name and password parameters etc. Instructions
ONVIF PFM906 ONVIF Icon.png ONVIF camera test, support 2592x1520. It is used unique hardware decoding, display image from the 4 MP camera via mainstream. You can select sub-stream to test higher resolution (such as 5MP…) camera Instructions
IPC Test PFM906 IPC Test Icon.png Using IP discovery app ,you don’t need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address , greatly improved engineering efficiency. Instructions
POE Power Output PFM906 POE Power Output Icon.png The PoE voltage test can test for PoE voltage when a POE switch is supplying POE power to an IP camera Instructions
POE & Power Info PFM906 POE and Power Info Icon.png Test the PoE voltage from a PoE switch. The unit will clearly display the voltage for each wire in an Ethernet cable Instructions

Specifications

Physical Port
Network Ports Three (3) 10/100 Mbps RJ45
  (LAN/PSE, PD, UTP/Scan)
BNC Port Two (2) Video In (SDI, HDCVI, TVI, AHD, CVBS)
  One (1) Video Out
Functional Ports One (1) Port for the following functions:
  TDR, OPM, VLS, RS485, DC12V In (charger), HDMI In, HDMI Out, Audio In, Audio Out, Micro SD
IP Camera Tests
IP Camera Type ONVIF (with PTZ control)
Dahua Test Tool Designed for Dahua camera image tests, modify camera and user parameters
IP Camera Test Supports rapid ONVIF,
  Auto-scan entire network segment
  Automatic login to display camera image
  Automatic network
  Display 4K images in main stream
  Full-screen preview and 5x digital zoom
  Snapshot, record, photo view and playback
  Analog Video Test
Format HDCVI, AHD, TVI, CVBS
HDCVI Camera One (1) Channel Video In, Maximum Resolution:
  1280 x 720p at 25 fps, 30 fps, 50 fps, 60 fps
  1920 x 1080p at 25 fps, 30 fps
  2560 x 1440p at 25 fps, 30 fps
TVI Camera One (1) Channel Video In, Maximum Resolution:
  1280 x 720p at 25 fps, 30 fps, 50 fps, 60 fps
  1920 x 1080p at 25 fps, 30 fps, 50 fps, 60 fps
  2048 x 1536 at 18 fps
AHD Camera One (1) Channel Video In, Maximum Resolution:
  1280 x 720p at 25 fps, 30 fps
  1920 x 1080p at 25 fps, 30 fps
  2560 x 1440p at 15 fps, 25 fps, 30 fps
CVBS Camera One (1) Channel In, One (1) Channel Out,
  Supports auto-adapting PAL/NTSC formats
Camera Test Real-time Video,
  Coaxial PTZ and RS485 Control
Audio Test Full-screen preview and 5x digital zoom
  Snapshot, record, photo view and playback
SDI Test
SDI Video One (1) Channel BNC In, Maximum Resolution:
  720p, 1080i, or 1080p at 60 fps
SDI Video Test HDMI Out port converts SDI to HDMI
  Output HD-SDI video to an HD TV monitor
  HDMI Display Resolution
HDMI In 720 x 480p, 720 x 576p, 1280 x 720p, 1024 x 768p, 1280 x 1024p, 1280 x 900p, 1440 x 900p
HDMI Out 1920 x 1080p
PTZ Control
Protocol Compatible with over 30 protocols, including
  Pelco D/P, Samsung, and Panasonic
Baud Rate 600 bps to 115,200 bps
Cable Tester
Network Cable TDR, Cable Search, UTP Cable Tester
Coaxial Cable TDR, Analog Video Generator
Optical Cable Visual Fault Locator
Tools
Network Tool IP Address Scan, Ping Test, Bandwidth Test,
  Port Flashing, DHCP Server
Digital Multi-meter (DMM) AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Data Hold, Relative Measurement, Continuity Testing
  Testing Speed: 3 per second
  Data Range: –6600 to +6600
Optical Power Meter Calibrated Wavelength:
  850, 1300, 1310, 1490, 1550, 1625
  Power Range:  –70 dBm to +10 dBm
Data Monitor Capture and analyze command data from controlling device via RS485 (hexadecimal also valid)
Flashlight On/Off LED Control
PoE and Power Measure PoE Switch Voltage, Display Pin Configuration
Audio Recorder Save Audio Message
Notepad Record Testing Results
Calculator Supplies On-screen Calculator
System Information
Screen 7-in. Capacitive Touch-screen with Retina Display,
  1920 x 1200 Resolution
Wi-Fi Built-in 2.4 Gbps Wi-Fi Module,
  Maximum Speed: 150 Mbps
  Receive a wireless network and view IP Cameras
LED Flashlight One (1) 35 lm LED light
Storage Capacity Built-in 8 GB, supports external 32 GB SD Card, max.
Language Support English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, and others
Automatic Power Off 1 to 30 minutes
Upgrade Supports local update via SD Card or via the Internet
Power
Charger 12 VDC, 2 A
Battery 7.4 V Lithium Polymer Battery, 5000 mAh, 37 Wh
Working Time 10 Hours, after 5 to 6 hours charging
PoE Power Out 48 VDC PoE+ , maximum
12 VDC Out 12 VDC, 2 A
USB5V Out 5 VDC, 2 A
Certifications
Certifications CE, FCC
Environmental
Working Temperature –10° C to +55° C (14° F to 131° F), 30% to 90% RH
Casing Plastic
Dimensions 270.0 mm x 160.0 mm x 46.0 mm
  (10.63 in. x 6.30 in. x 1.81 in.)
Net Weight 0.95 kg (2.09 lb)
Packaging Dimensions 313.0 mm x 286.0 mm x 96.0 mm
  (12.32 in. x 11.26 in. x 3.78 in.)
Gross Weight 2.1 kg (4.63 lb)
