How To Add A VTO and VTH to DSS Express

Description

This Step by Step guide will provide instruction to setup A VTO2111D-WP To A VTH5221D via a LAN connection and connect to DSS Express

Prerequisites

  • VTO2111D-WP - Initialized, Configured on the Network
  • VTH5221D - Initialized, Configured on the Network
  • DSS Express Server - Setup, Configured on the Network
  • DSS Express Client installed - How to Install DSS Express Client

Video Intercom Deployment Best Practices

Video intercom devices require exact network and programming information entered at each interface in order for the devices to function as expected.

Before attempting the guide on this page it is useful to collect all the information from each device - VTH, VTO, and DSS Express. This will be useful as a reference when entering the different device information at each device.

For example building a spreadsheet like this would be recommended:

Example Video Intercom Device Information

DSS Express (DSS4004-S2) Device

Device IP Address User Name Password Building Enable Unit Enable
DSS4004-S2 192.168.2.96 system DahuaWIN2017 Disabled Disabled

VTO Device

Local Setting
Device IP Address Device Type Villa Call No Building No. Unit No. VTO No. Call Centre Time
VTO2111d-WP 192.168.2.234 Villa Station 9901 0(Greyed Out) 0(Greyed Out) 8001 Unchecked
SIP Server
SIP Server Server Type SIP Server IP Port Username Password SIP Domain SIP Server Username SIP Server Password Alternate IP Addr Alternate Username Alternate Password Alternate VTS Address Alternate Server
Disabled Express/DSS 192.168.2.96 5080 (VTO Number) 123456 VDP system DahuaWIN2017 (Not Used) (Not Used) (Not Used) (Not Used) Unchecked

VTH Device

Local Setting
Device IP Address Room No.
VTH1510CH 192.168.2.167 9901#0
SIP Server
Server IP Network Port User Name Register Password Domain User Name Logon Password
192.168.2.96 5080 (VTH Building Number) 123456 (Always This Password) VDP system DahuaWIN2017 (DSS Express Server Password)

Video Instructions

Coming Soon

Step by Step Instructions

Below are several sets of instructions for setting up the VTH, VTO, and DSS Express Client


VTH

1. Long press (for about 5 seconds) the Settings icon until a window pops up asking for a password

DSS Express - Add VTO and VTH - VTH Setup 1.jpg

2. Enter the password (Default: 123456) and press OK

DSS Express - Add VTO and VTH - VTH Setup 2.jpg

3. The Advanced Settings will be displayed

Under the Network information, confirm the Network information of the VTH device

DSS Express - Add VTO and VTH - VTH Setup 3.jpg


4. Under VTH Config - The Room No. can be adjusted by pressing/tapping inside the field and a keyboard will be displayed

DSS Express - Add VTO and VTH - VTH Setup 4.jpg


5. Enter the correct Room No. , for this guide it will be 9901#0

DSS Express - Add VTO and VTH - VTH Setup 5.jpg

Then press OK

6. Under SIP Server, enter the information from the DSS Express Server, since it will be acting as the SIP server in this deployment.

All information must be entered on this screen

DSS Express - Add VTO and VTH - VTH Setup 6.jpg

  • Server IP: IP of DSS Express Server - in this example 192.168.2.96
  • Network Port: 5080
  • User Name: Leave at default
  • Register Pwd: Leave at default
  • Domain:VDP
  • User Name:username for DSS Express Server - in this example system
  • Login Pwd:password for user in DSS Express

7. Once the correct information for the DSS Express Server has been entered, toggle Enable Status to ON, then press OK

DSS Express - Add VTO and VTH - VTH Setup 7.jpg

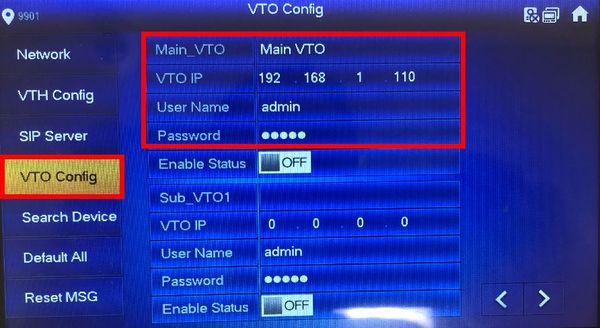

8. Under VTO Config, enter the information from the VTO device in the section labeled Main_VTO

DSS Express - Add VTO and VTH - VTH Setup 8.jpg

9. Once the information has been entered, switch Enable Status to ON

DSS Express - Add VTO and VTH - VTH Setup 9.jpg

10. After a few moments you will get confirmation the VTO information has been set correctly

DSS Express - Add VTO and VTH - VTH Setup 10.jpg

VTO

1. Log into the web interface of the VTO by typing its address in a browser and entering the username and password

DSS Express - Add VTO and VTH - 1.jpg

2. Once logged in select Network Setting

DSS Express - Add VTO and VTH - 2.jpg

3. Select SIP Server on the left

DSS Express - Add VTO and VTH - 3.jpg

4. All information must be entered on this page

DSS Express - Add VTO and VTH - 4.jpg

Uncheck Enable

Server Type: Express/DSS

IP Addr: IP Address of DSS Express Server

Port: 5080

leave Username/Password as default

SIP Domain: VDP

SIP Server Username: system

SIP Server Password: Password for user


DSS Express - Add VTO and VTH - 5.jpg

5. Click Save once all fields have been entered.

The unit will reboot after making those settings changes.

DSS Express - Add VTO and VTH - 5.jpg


DSS Express Client

The VTO and VTH device now need to be added to the DSS Express through the DSS Express Client

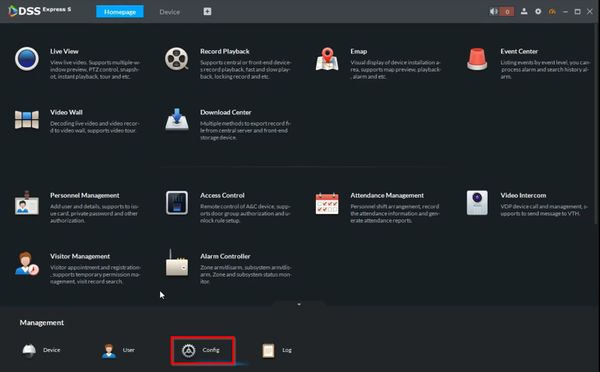

1. From the Homepage of DSS Express Client - Click Config

DSS Express - Add VTO and VTH - DSS Express Client 1.jpg

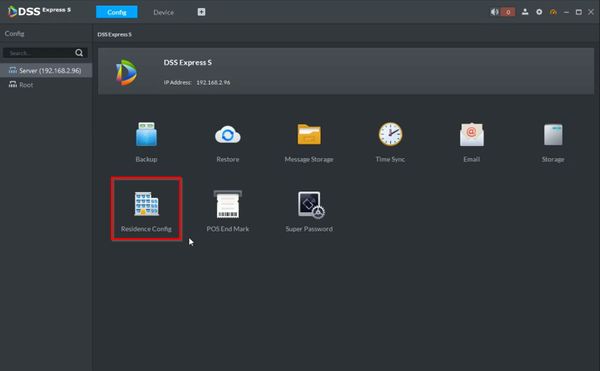

2. Click Residence Config

DSS Express - Add VTO and VTH - DSS Express Client 2.jpg

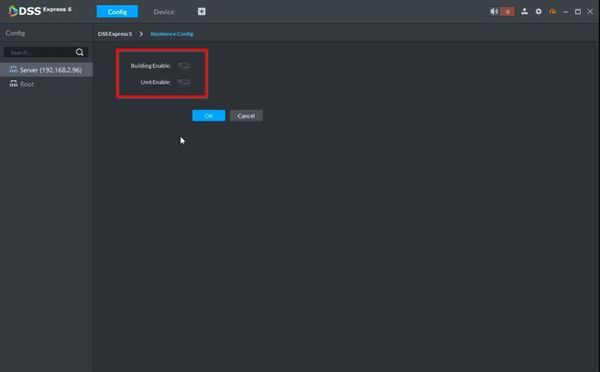

3. Make sure the settings - Build Enable and Unit Enable are not turned on

DSS Express - Add VTO and VTH - DSS Express Client 3.jpg

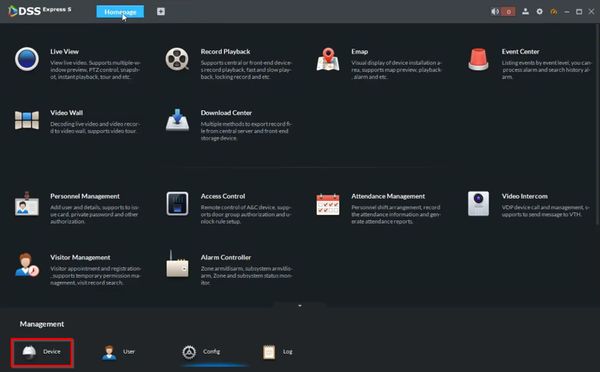

4. From the Homepage of DSS Express Client - Click Device

DSS Express - Add VTO and VTH - DSS Express Client 4.jpg

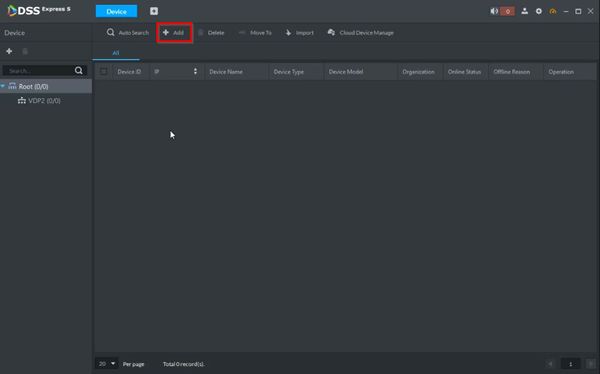

5. Click '+ Add'

DSS Express - Add VTO and VTH - DSS Express Client 5.jpg


6. The Add Device interface will appear. Enter all required information

DSS Express - Add VTO and VTH - DSS Express Client 6.jpg

  • Device Name:Name for the device in the software
  • Register Mode: IP Address
  • Device Category: Video Intercom
  • IP Address: IP Address of Device
  • Port: 37777
  • Organization
  • Username: Username of device
  • Password: Password

7. Click Add to finish adding the device

DSS Express - Add VTO and VTH - DSS Express Client 7.jpg

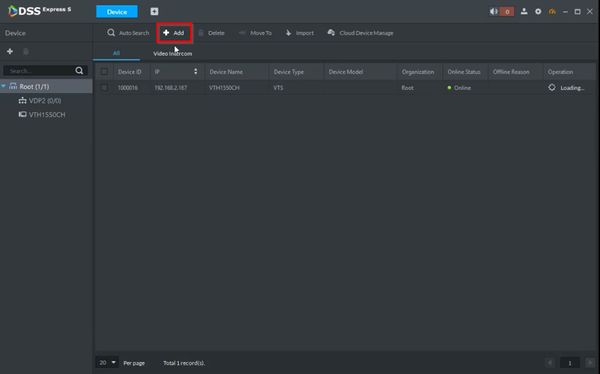

8. Repeat the process to add the VTH, by clicking '+ Add'


DSS Express - Add VTO and VTH - DSS Express Client 8.jpg


9. Enter all device information and click Add to finish adding the device

DSS Express - Add VTO and VTH - DSS Express Client 9.jpg

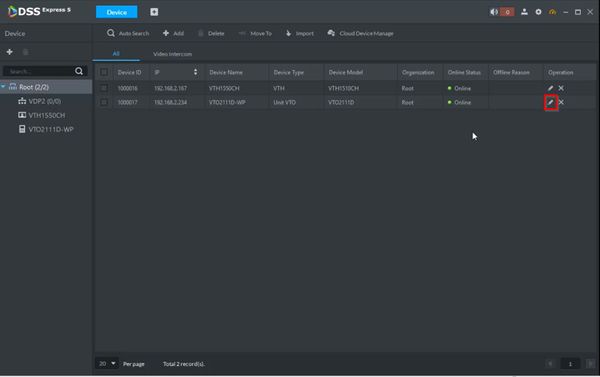

10. Once the devices have been added, click the Pencil icon under the Operation column to confirm the device details.

DSS Express - Add VTO and VTH - DSS Express Client 10.jpg

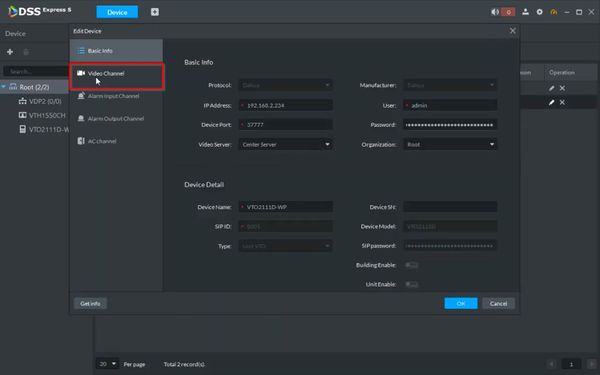

11. Click Video Channel

DSS Express - Add VTO and VTH - DSS Express Client 11.jpg


12. Click Get Info


DSS Express - Add VTO and VTH - DSS Express Client 12.jpg


13. Click AC Channel, then Get Info


DSS Express - Add VTO and VTH - DSS Express Client 13.jpg

Click OK

Once complete

Troubleshooting

  • If you are able to get only video and no door/lock control, or vice versa, try confirming the Device Information at the DSS Express Client:

DSS Express - Add VTO and VTH - Troubleshooting 1.jpg


DSS Express - Add VTO and VTH - Troubleshooting 2.jpg

VTO
  • If VTO and VTH won't communicate with each other after setting up, follow the below troubleshooting steps:

1. When the unit boots back up, log into the device again and go to Local Setting

DSS Express - Add VTO and VTH - 6-1.jpg

2. Change Villa Call No. to the Room No. the VTH was set to in the previous step (In this example from 9901 to 9901#0)

DSS Express - Add VTO and VTH - 6-2.jpg

3. Click Confirm to save changes

DSS Express - Add VTO and VTH - 6-3.jpg

4. Press the call button on VTO again and see if the VTH will receive the call. If the call goes through, follow the rest of the steps.

5. Log into the web interface of the VTO by typing its address in a browser and entering the username and password

DSS Express - Add VTO and VTH - 1.jpg

6. Click Local Setting

DSS Express - Add VTO and VTH - VTO2-2.jpg

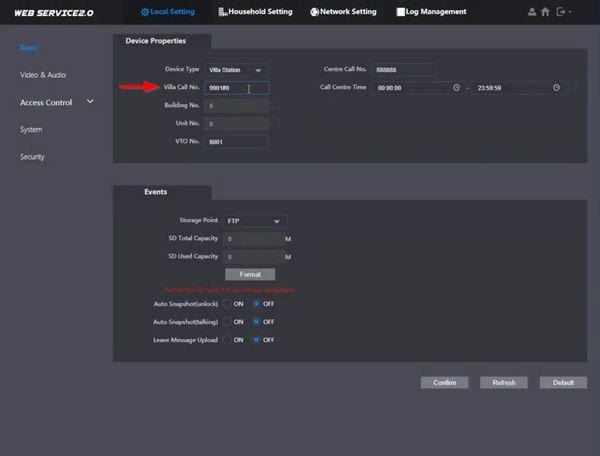

7. Change the Villa Call No. from 9901#0 -> 9901

DSS Express - Add VTO and VTH - VTO2-3.jpg

8. Click Confirm to save changes

DSS Express - Add VTO and VTH - VTO2-4.jpg
