DVR/Enable Popup Screen

How to enable pop-up screen from Alarm or Motion detection triggered.

Description

Follow these step-by-step instructions to full screen pop-up when Alarm or Motion detection triggered.

Prerequisites

  • HCVR, XVR, or NVR
  • HDCVI, analog, or IP cameras (optional)

Video Instructions

Coming soon.

Step-by-Step Instructions for XVR - Alarm Input

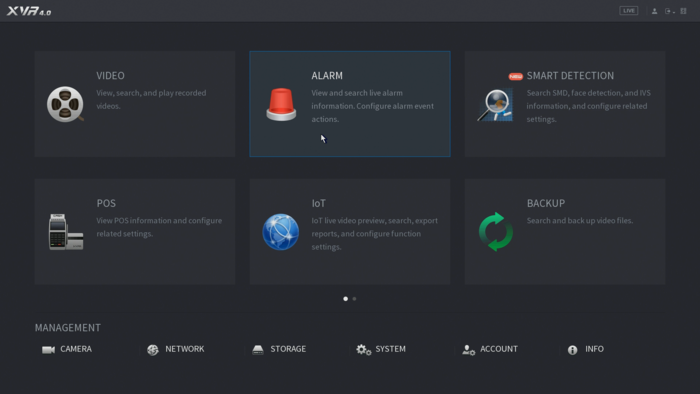

1. From the main menu, select Alarm.

AlarmInput 1.png

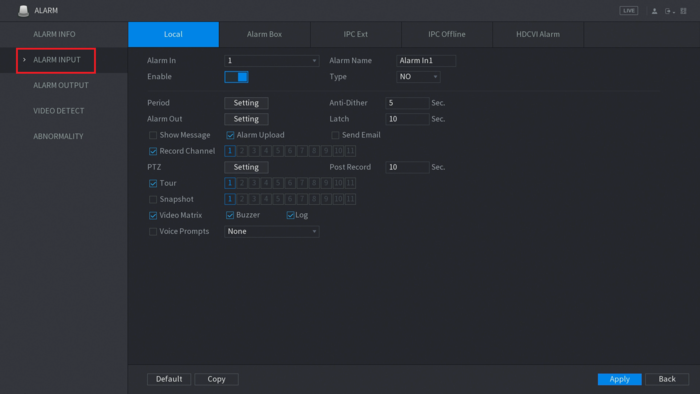

2. Select Alarm Input.

AlarmInput Popup 2.png

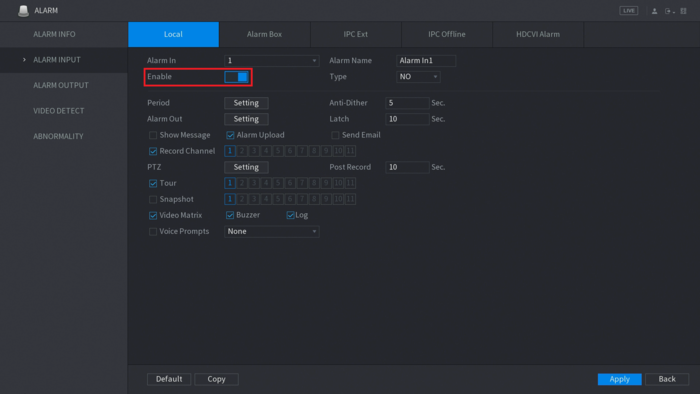

3. Click on Enable MD to enable motion detection

AlarmInput Popup 3.png

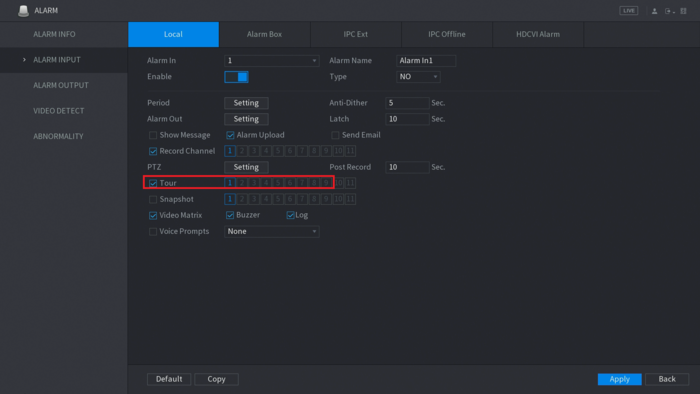

4. Click on Tour option and select the camera channel you like to see full-screen.

Note: You can select multiple channels which will dwelling throughout all channels in full-screen view.

AlarmInput Popup 4.png

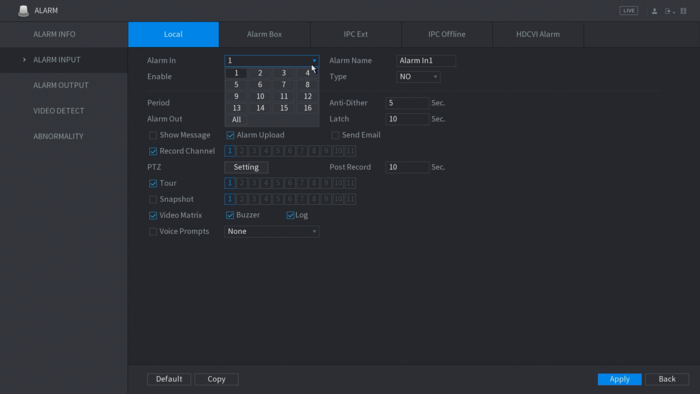

To select a different alarm input port, you can click on Alarm In. Alarm input number is labeled on the back of the recorder.

AlarmInput Popup 5.png


Step-by-Step Instructions for XVR - Motion Detection

1. From the main menu, select Alarm.

AlarmInput 1.png

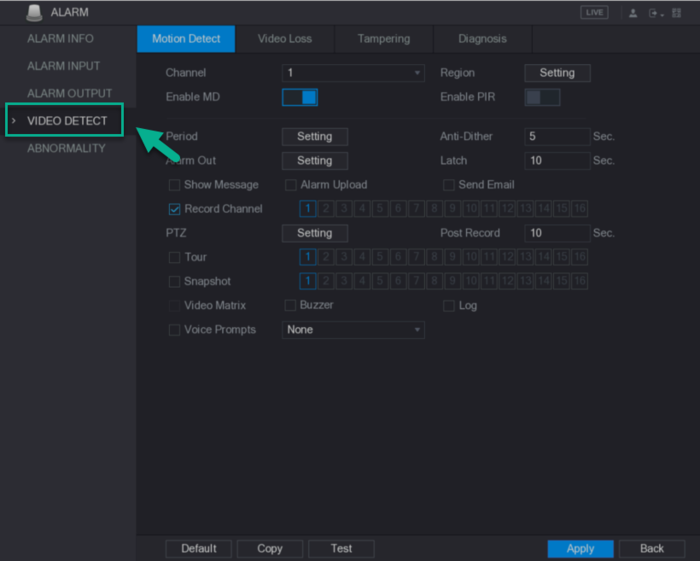

2. Select Video Detect.

Popup 2.png

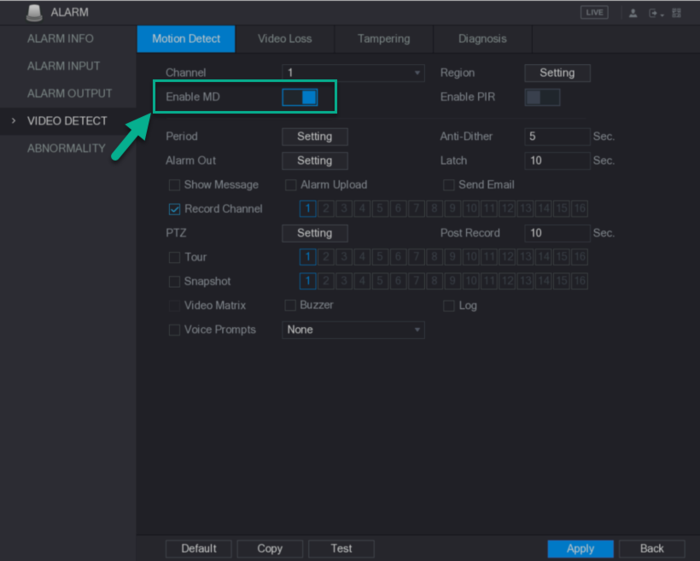

3. Click on Enable MD to enable motion detection

Popup 3.png

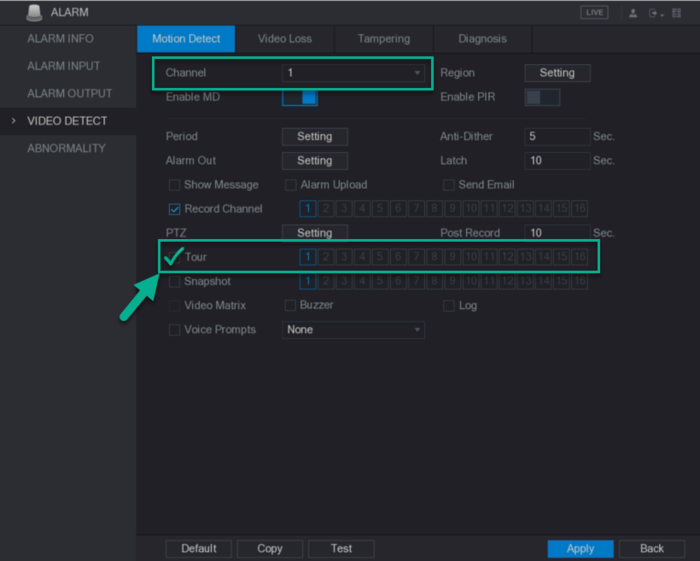

4. Click on Tour option and select the camera channel you like to see full-screen.

Note: You can select multiple channels which will dwelling throughout all channels in full-screen view.

Popup 4.png
