IPCFisheyeSetup

Fisheye Menus

Fisheye Menu Part 1


Parameter

Function

Zoom

Adjust the focal length of the lens by clicking or long pressing “+”“-”buttons.

Step length is used to adjust the length of one step with one click.

Focus

Adjust the sharpness of the lens by clicking or long pressing“+”、“-” buttons.

Step length is used to adjust the length of one step with one click.

Auto-focus

Click to adjust the image definition automatically.

Note:

Other lens operations are not allowed during the process of auto-focus.

Reset

Reset the lens to zero position to eliminate the accumulative error of lens.

 Note:

Please reset when the image adjustment is not clear or operating zoom focus many times.

Refresh

Synchronize the location of drag slider of lens and zoom focus after hardware zoom focusing.

Fisheye Menu Part 2


parameter

Note

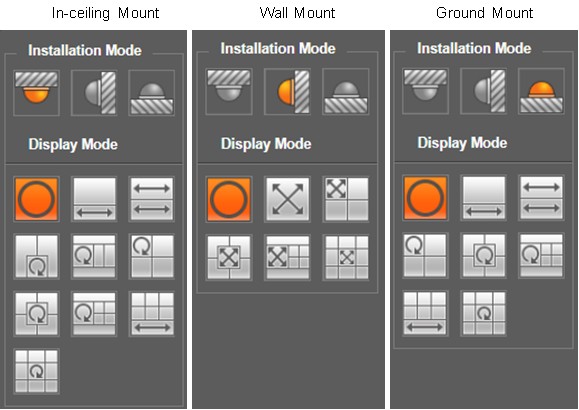

Installation Mode

Three modes which are ceiling mount, wall mount and ground mount.

Display Mode

It represents the display mode of the current image (default supports original image mode), the display modes may be different according to different installation modes. It is shown as follows:

  • Ceiling: 1P+1、2P、1+2、1+3、1+4、1P+6、1+8。
  • Wall: 1P、1P+3、1P+4、1P+8。
  • Ground: 1P+1、2P、1+3、1+4、1P+6、1+8。

Note:

The default displays original image mode when switching installation mode.

In-ceiling/Wall/Ground

Fisheyemenus1.pngOriginal

It means the original image without de-warpping

In-ceiling/Ground

Fisheyemenus2.png1P+1

360°expanded rectangular panorama + independent sub image, the sub image and the subbox in the expanded rectangular panorama support zoom and movement, for the expanded rectangular panorama also supports left and right starting point movement.

Fisheyemenus3.png2P

Two related 180° expanded rectangular pictures, two subwindows form 360° panorama anytime, which is also called “dual panorama”. Two expanded rectangular pictures both support left and right movement starting point, which are also linked by eachother.

Fisheyemenus4.png1+2

Original image + 2 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation (no such display mode for ground installation).

Fisheyemenus5.png1+3

Original image + 2 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation

Fisheyemenus6.png1+4

Original image + 4 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation

Fisheyemenus7.png1P+6

360°expanded rectangular panorama +6 independent sub image, both the sub image and the subbox in the expanded rectangular panorama support zoom and movement, for the expanded rectangular panorama also supports left and right starting point movement.

Fisheyemenus8.png1+8

Original image + 8 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation

Wall

Fisheyemenus9.png1P

From left to right 180° expanded rectangular panorama, which supports up and down movement and changes vertical angle of view.

Fisheyemenus10.png1P+3

180° expanded rectangular panorama+3 independent sub images, both the sub images and the sub box in the expanded rectangular panorama support zoom and movement, expanded rectangular panorama supports up and down movement and changes vertical angle of view.

Fisheyemenus11.png1P+4

180° expanded rectangular panorama+4 independent sub images, both the sub images and the sub box in the expanded rectangular panorama support zoom and movement, expanded rectangular panorama supports up and down movement and changes vertical angle of view.

Fisheyemenus12.png1P+8

180° expanded rectangular panorama+8 independent sub images, both the sub images and the sub box in the expanded rectangular panorama support zoom and movement, expanded rectangular panorama supports up and down movement and changes vertical angle of view.
