LincX2PRO/Setup Motion Detection

Description

This article will cover how to setup and configure the Motion Detection settings of a LincX2PRO device using the DMSS mobile app

Prerequisites

  • LincX2PRO device setup and added to the mobile app DMSS

Step by Step Instructions

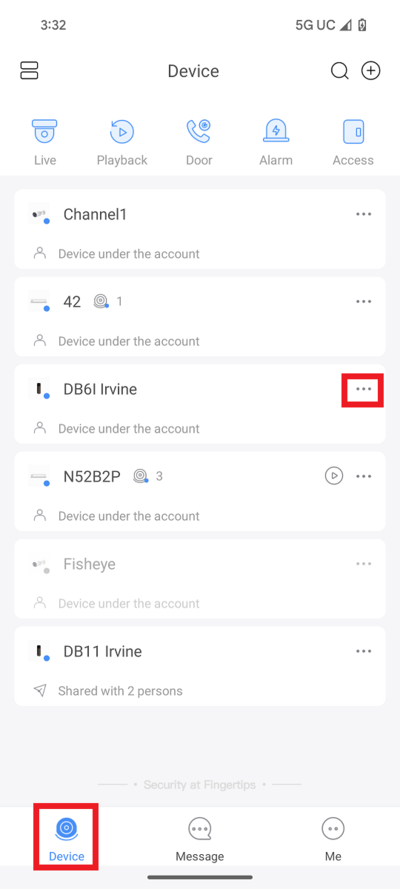

1. Open the DMSS mobile app.
Select Device at the bottom.
Tap on the three dots "..." to the right of the LincX2Pro device

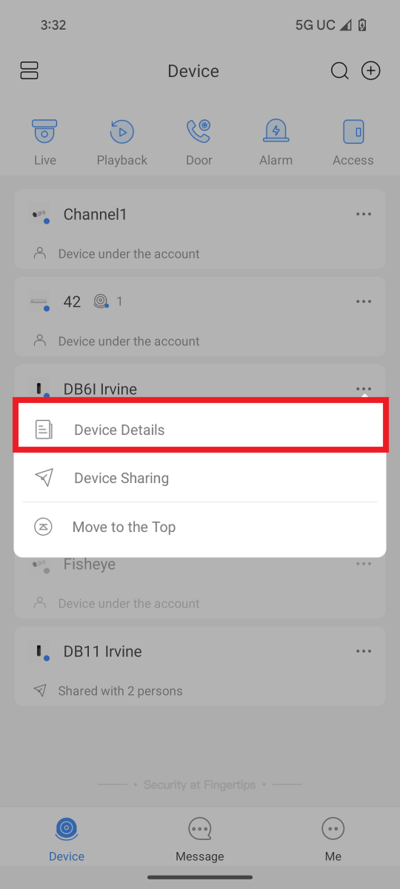

2. Select Device Details

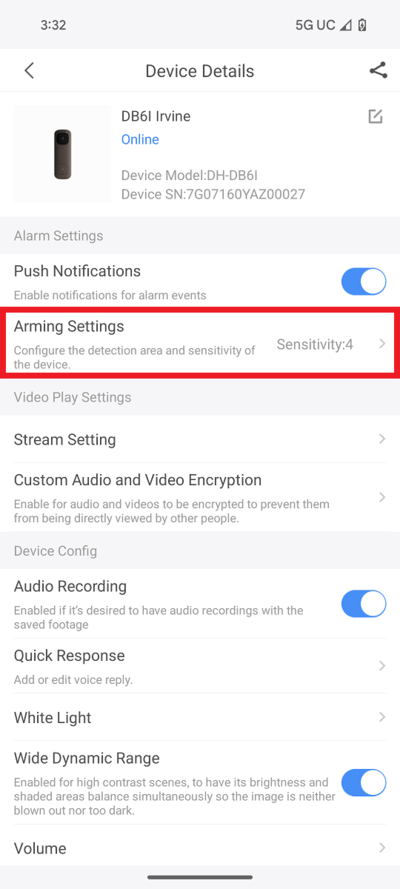

3. Select Arming Settings

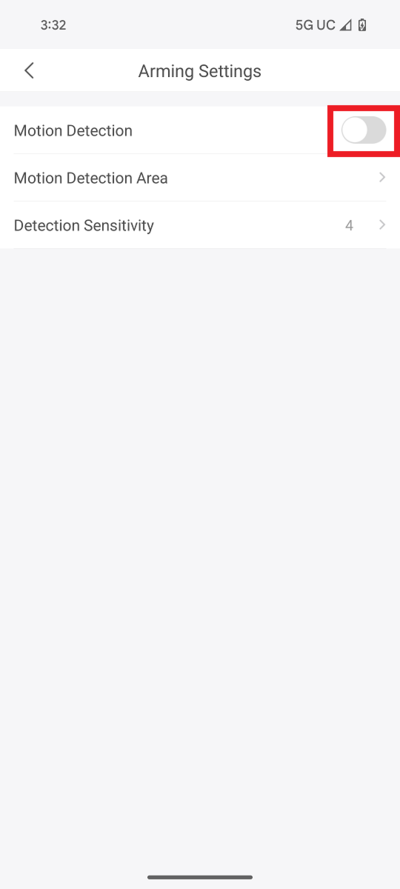

4. Tap on the slider next to Motion Detection to enable it

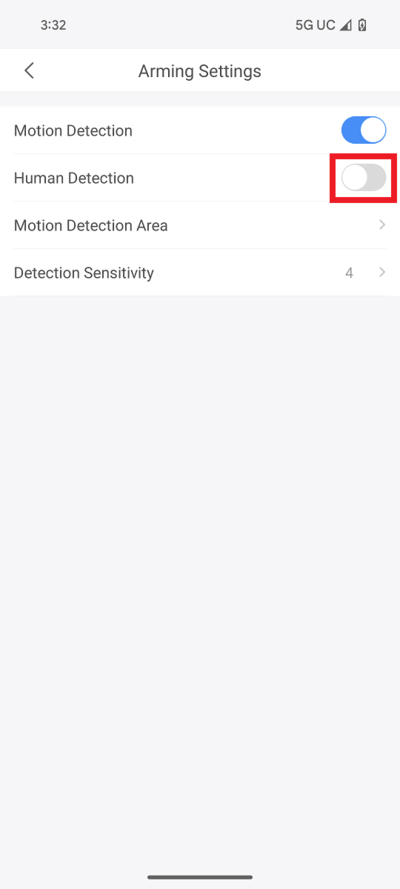

5. If you also want to detect Humans specifically, tap on the slider next to Human Detection to enable it

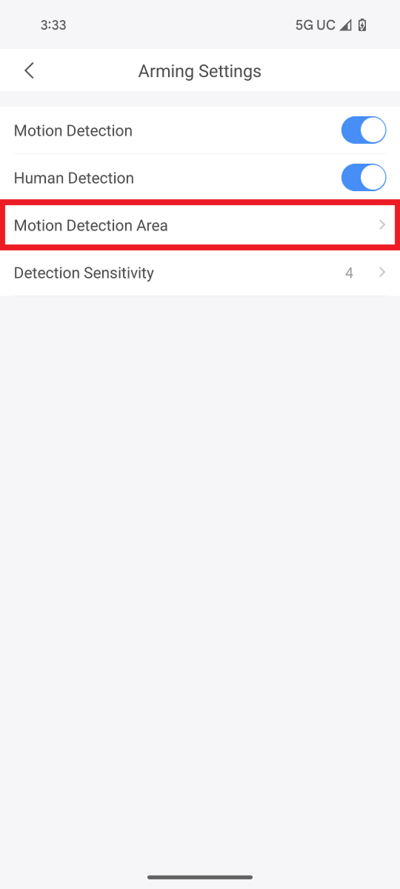

6. Tap on Motion Detection Area

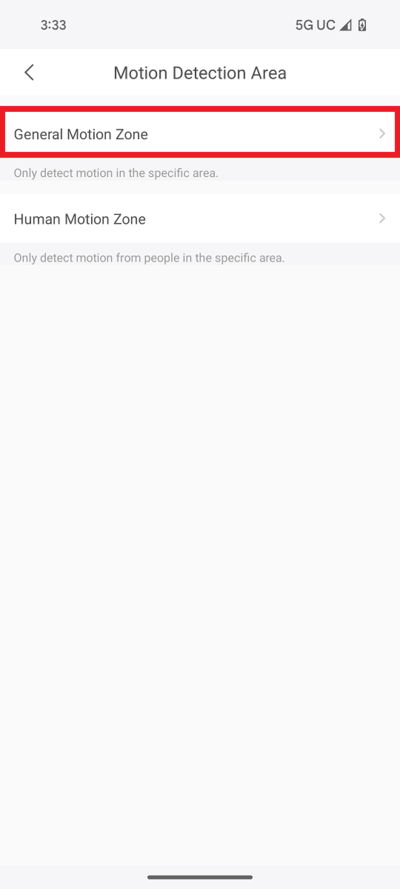

7. Tap on Genereal Motion Zone


8. Adjust the areas that the camera will look for motion by keeping areas in red highlighted for motion detection or clear to not detect for motion.
Tap on the broom icon on the left to clear everything highlighted on the screen.
Tap on the center icon to swap between areas that are highlighted and not highlighted.
Tap on the eraser icon on the right to switch between adding or removing highlighted areas.
When you are done, tap on the floppy disk save icon at the top right.
Then tap on the back arrow at the top left

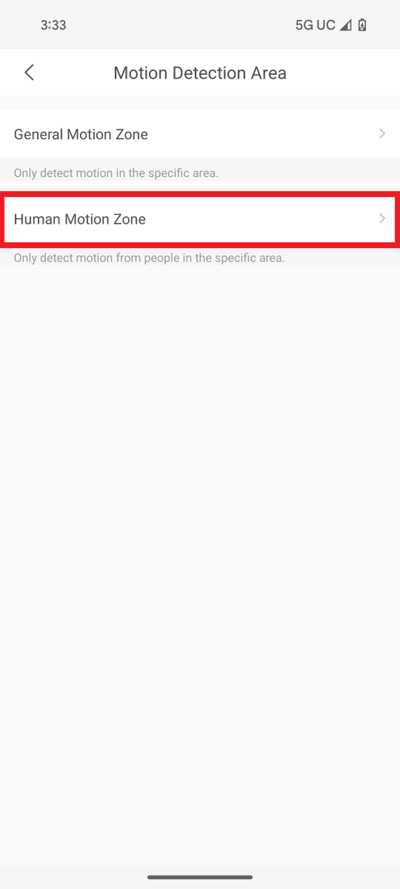

9. Tap on Human Motion Zone

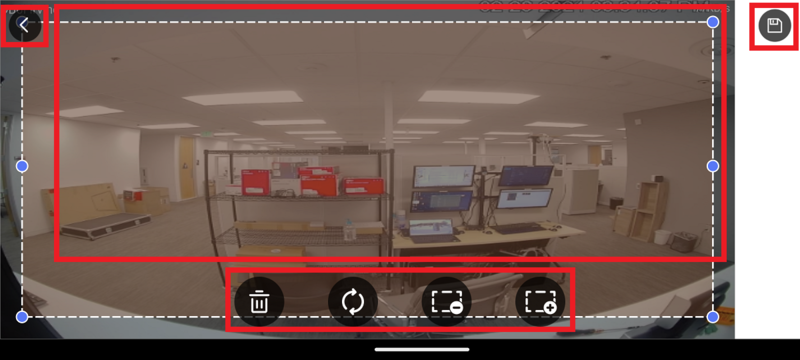

10. Adjust the areas the camera will look for human motion by moving around and resizing the box(es) on the screen.
To remove all detection boxes, tap on the trash can icon.
To rotate a selected box, tap on the circular arrows icon.
To remove a selected box, tap on the box with a minus icon.
To add an additional box, tap on the box with a plus icon.
When you are done, tap on the floppy disk save icon at the top right.
Then tap on the back arrow at the top left

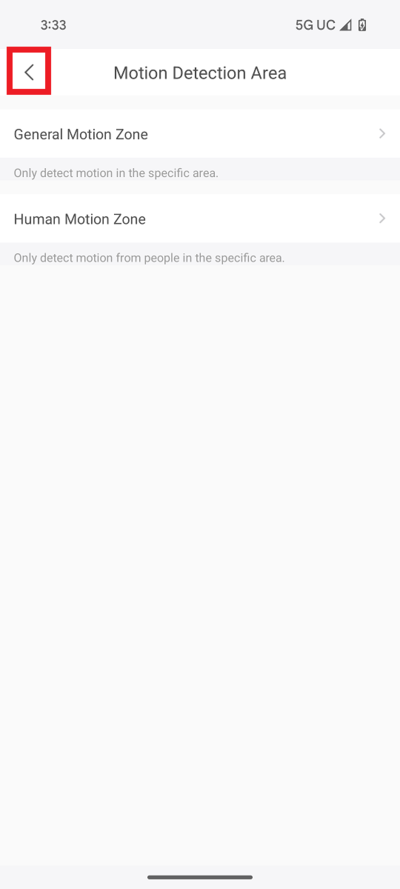

11. Tap on the back button at the top left

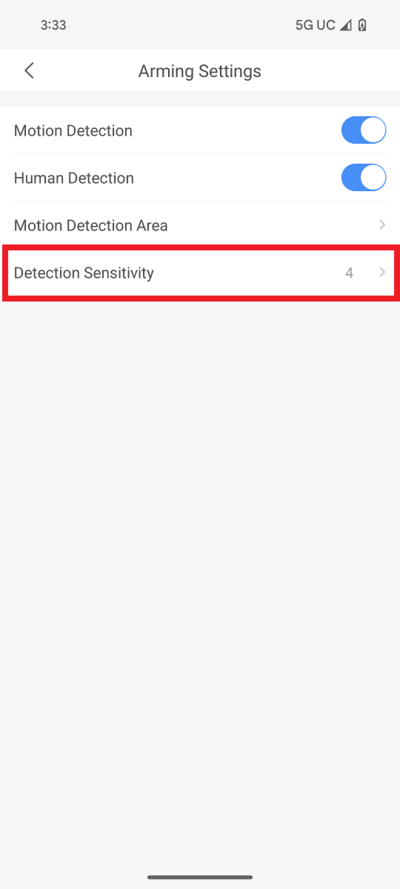

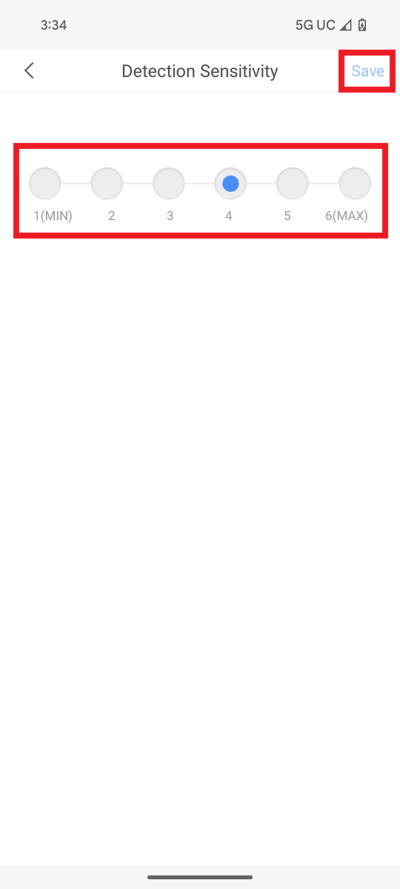

12. Tap on Detection Sensitivity


13. Tap on the number for the amount of sensitivity for Motion Detection.
Then tap on Save at the top
