NVR/Front Panel

Front Panel

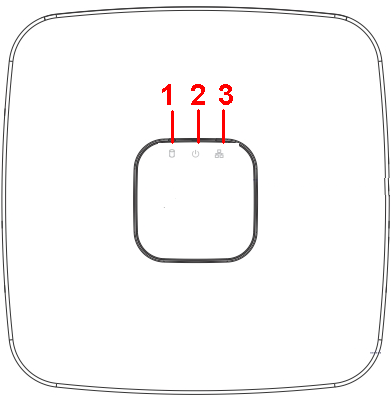

NVR11/11-P/41/41-P/41-W Series


SN

Name

Function

1

HDD status indictor light

The red light becomes on when HDD is abnormal.

2

Power indicator light

The red light becomes on when the power connection is OK.

3

Network status indicator light

The red light becomes on when the network connection is abnormal.

NVR11H/11H-P/41H/41H-P/41H-8P Series


Icon

Name

Function

NET

Network status indicator light

The red light becomes on when the network connection is abnormal.

PWR

Power indicator light

The red light becomes on when the power connection is OK.

HDD

HDD status indictor light

The red light becomes on when HDD is abnormal.

IR

Remote control receiver

It is to receive signal from the remote control.

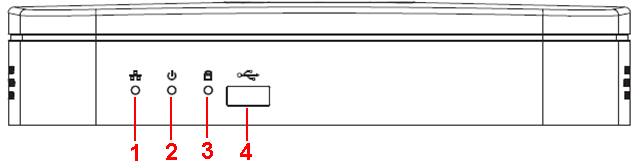

NVR41-8P Series


SN

Name

Function

1

Network status indicator light

The red light becomes on when the network connection is abnormal.

2

Power indicator light

The red light becomes on when the power connection is OK.

3

HDD status indictor light

The red light becomes on when HDD is abnormal.

4

USB

USB port

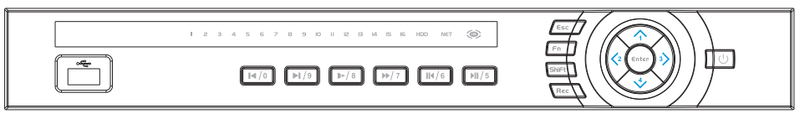

NVR42/42-P/42-8P/72/72-8P Series


Name

Icon

Function

Power button


Power button, press this button for three seconds to boot up or shut down NVR.


Shift

Shift

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Up/1

Down/4


Activate current control, modify setup, and then move up and down.



Increase/decrease numeral.


Assistant function such as PTZ menu.


In text mode, input number 1/4 (English character G/H/I)


Left/2

Right/3


Shift current activated control,

When playback, click these buttons to control playback bar.

In text mode, input number 2(English character A/B/C)

/3(English character D/E/F)

.

ESC

ESC

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER

Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys

or numeral keys to select the recording channel.

Slow play/8


Multiple slow play speeds or normal playback.

In text mode, input number 8 (English character T/U/V).

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.


Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.


In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Fast play/7


Various fast speeds and normal playback.

In text mode, input number 7 (English character P/Q/R/S).

Play previous/0


In playback mode, playback the previous video

In text mode, input number 0.

Reverse/Pause/6


In normal playback or pause mode, click this button to reverse

playback

In reverse playback, click this button to pause playback.

In text mode, input number 6 (English character M/N/O)

.

Play Next/9

„>

In playback mode, playback the next video

In menu setup, go to down ward of the dropdown list.

In text mode, input number 9 (English character W/X/Y/Z)

.

Play/Pause /5

„

In normal playback click this button to pause playback

In pause mode, click this button to resume playback.

In text mode, input number 5(English character J/K/L).

USB port

To connect USB storage device, USB mouse.

Network abnormal indicator light

Net

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD abnormal indicator light

HDD

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Record light

1-16

System is recording or not. It becomes on when system is recording.

IR Receiver

IR

It is to receive the signal from the remote control.


NVR42-4K/42-8P-4K/44-4K/48-4K Series

The NVR42-4K/42-8P-4K/44-4K series front panel is shown below:NVR424KFrontPanel.png

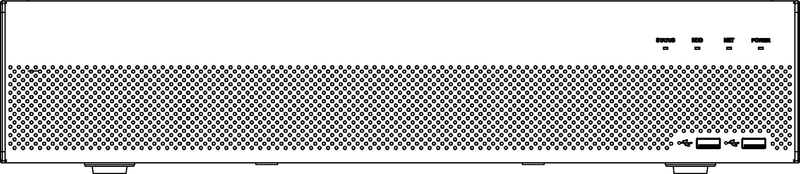

The NVR48-4K series front panel is shown below.

 NVR484KFront Panel.png

Icon

Name

Function

STATUS

Status indicator light

The blue light is on when the device is malfunction.

HDD

HDD status indicator

light

The blue light is on when the HDD is malfunction.

NET

Network status indicator light

The blue light is on when the network connection is abnormal.

POWER

Power status indicator light

The blue light is on when the power connection is OK.

USB2.0 port

Connect to peripheral USB 2.0 storage device, mouse, burner and etc.

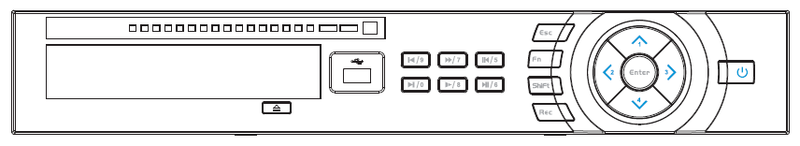

NVR44/44-8P/44-16P/74/74-8P/74-16P Series


Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.


Shift

Shift

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Up/1

Down/4

p、q

Activate current control, modify setup, and then move up and down.



Increase/decrease numeral.


Assistant function such as PTZ menu.


In text mode, input number 1/4 (English character G/H/I)


Left/2

Right/3

t    u

Shift current activated control,

When playback, click these buttons to control playback bar.

In text mode, input number 2(English character A/B/C)

/3(English character D/E/F)

.

ESC

ESC

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER

Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys

or numeral keys to select the recording channel.

Slow play/8

Multiple slow play speeds or normal playback.

In text mode, input number 8 (English character T/U/V).

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.


Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.


In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Fast play/7

8

Various fast speeds and normal playback.

In text mode, input number 7 (English character P/Q/R/S).

Play previous/0

t

In playback mode, playback the previous video

In text mode, input number 0.

Reverse/Pause/6


t

In normal playback or pause mode, click this button to reverse

playback

In reverse playback, click this button to pause playback.

In text mode, input number 6 (English character M/N/O)

.

Play Next/9

►│

In playback mode, playback the next video

In menu setup, go to down ward of the dropdown list.

In text mode, input number 9 (English character W/X/Y/Z)

.

Play/Pause /5

In normal playback click this button to pause playback

In pause mode, click this button to resume playback.

In text mode, input number 5(English character J/K/L).

USB port

To connect USB storage device, USB mouse.

Network abnormal indicator light

Net

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD abnormal indicator light

HDD

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Record light

1-16

System is recording or not. It becomes on when system is recording.

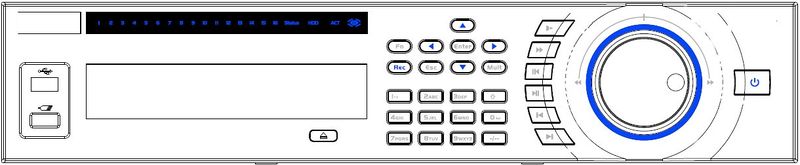

NVR48/48-16P/78/78-16P Series


Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

Number button

0-9

Input Arabic number

Switch channel


Input number more than 10

-/--

If you want to input a number more than 10, please click this button and then input.

Shift

£

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Enable or disable tour.

Up/

Down

p、q

Activate current control, modify setup, and then move up and down.


Increase/decrease numeral.


Assistant function such as PTZ menu.

Left/

Right

t    u

Shift current activated control, and then move left and right.

When playback, click these buttons to control playback bar.

ESC

ESC

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER

Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys

or numeral keys to select the recording channel.

Slow play

Multiple slow play speeds or normal playback.

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.


Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.


In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

In HDD management interface, you can click it to switch HDD record information and other information (Menu prompt)

Realize other special functions.

Fast play

8

Various fast speeds and normal playback.

Play previous



In playback mode, playback the previous video

Reverse/Pause

t

In normal playback or pause mode, click this button to reverse

playback

In reverse playback, click this button to pause playback.

Play Next

„>

In playback mode, playback the next video

In menu setup, go to down ward of the dropdown list.

Play/Pause

„;

In normal playback click this button to pause playback

In pause mode, click this button to resume playback.

Window switch

Mult

Click it to switch one-window/multiple-window.

Shuttle(outer ring)

In real-time monitor mode it works as left/right direction key.

Playback mode, counter clockwise to forward and clock wise to backward.

Jog(inner dial)

Up/down direction key.

Playback mode, turn the inner dial to realized frame by frame playback. (Only applies to some special versions.)


USB port

To connect USB storage device, USB mouse.

Remote control indicator light

ACT

Remote control indicator light

Status indicator light

Status

If there is Fn indicator light , current status indicator light  is null.

Power indicator light

PWR

Power indicator light

Channel indictor

light

1-32

For 4/8/16-channel series product.

The corresponding channel light becomes on when system is recording.

For 32/64-channel series product:

When the light flashes slowly, it means the corresponding channel of 1-16 channel is recording now (Such as channel 1).

When the light flashes fast, it means the corresponding channel of 17-32 channel is recording now (Such as channel 17)

When the light becomes on, It means the corresponding 2 channels are recoding now (Such as channel 1 and channel 17.).

The channel indictor light here does not show the status of the 33-64-channel.

IR Receiver

IR

It is to receive the signal from the remote control.

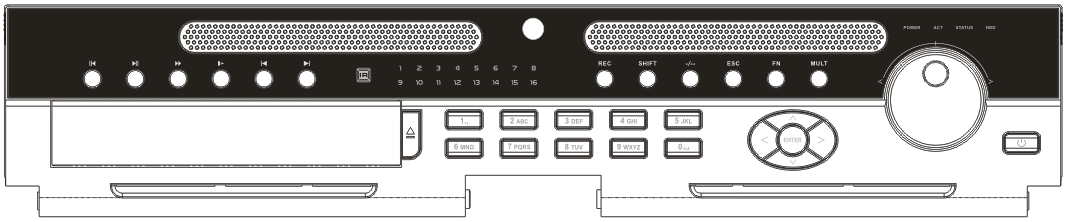

NVR78-RH Series


Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

Number button

0-9

Input Arabic number

Switch channel


Input number more than 10

-/--

If you want to input a number more than 10, please click this button and then input.

Shift

£

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Enable or disable tour.

Up/

Down

p、q

Activate current control, modify setup, and then move up and down.


Increase/decrease numeral.


Assistant function such as PTZ menu.

Left/

Right

t    u

Shift current activated control, and then move left and right.

When playback, click these buttons to control playback bar.

ESC

ESC

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER

Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys

or numeral keys to select the recording channel.

Slow play

Multiple slow play speeds or normal playback.

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.


Backspace function: in numeral control or text control, press it for 1.5 seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.


In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

In HDD management interface, you can click it to switch HDD record information and other information (Menu prompt)

Realize other special functions.

Fast play

8

Various fast speeds and normal playback.

Play previous

t

In playback mode, playback the previous video

Reverse/Pause



In normal playback or pause mode, click this button to reverse

playback

In reverse playback, click this button to pause playback.

Play Next

„>

In playback mode, playback the next video

In menu setup, go to down ward of the dropdown list.

Play/Pause

„

In normal playback click this button to pause playback

In pause mode, click this button to resume playback.

Window switch

Mult

Click it to switch one-window/multiple-window.

Shuttle(outer ring)

In real-time monitor mode it works as left/right direction key.

Playback mode, counter clockwise to forward and clock wise to backward.

Jog(inner dial)

Up/down direction key.

Playback mode, turn the inner dial to realized frame by frame playback. (Only applies to some special versions.)


USB port



To connect USB storage device, USB mouse.



Remote control receiver

IR

It is to receive signal from the remote control.

Remote control indicator light

ACT

Remote control indicator light

Status indicator light

Status

The light is on if device operates properly.

Power indicator light

POWER

Power indicator light

Record light


1-16


It becomes on when system is recording.



HDD abnormal status indictor light

HDD

It becomes on when there is no HDD, HDD error occurs,  or HDD is full.

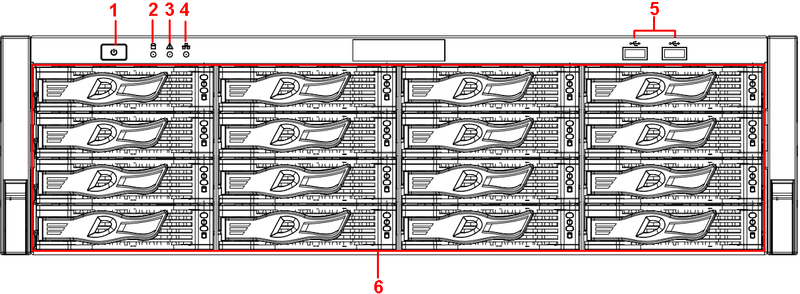

NVR70/70-R Series


SN

Name

Icon

Function

1

Power button

Press it once to turn on the device.

Press it for a long time to turn off the device (Usually we do not recommend).

Press power button for a long time or pull out the power cable may result in device auto restart.

2

System HDD Indicator light

The blue light flashes when system is reading or writing the system HDD.

In the system HDD, there are device important configuration file, factory default configuration file, device initial boot up data.

3

Alarm indicator light

The alarm indicator light  becomes on once an alarm occurred. It becomes on via the software detection. The alarm includes local alarm, no disk and etc.

4

Network indicator light

The network indicator light  is blue and it flashes when you connect the device to the network.

5

USB2.0 port

Connect to USB2.0 storage device, mouse, USB burner and etc.

6

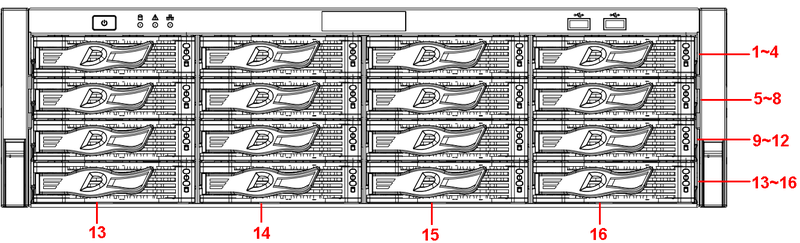

16 HDD slot

-

/

After you remove the front panel, you can see there are 16 HDDs. From the left to the right and from the top to the bottom, it ranges from 1~4, 5~8, 6~12, 13~16.


You can see there are two indicator lights on the HDD bracket.

  • The power indicator light is at the top. The light is yellow after you connected the device to the power.
  • The read-write indicator light is at the bottom. The blue light flashes when system is reading or writing the data.

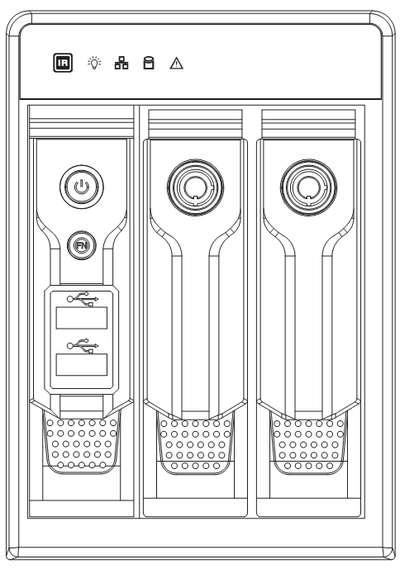

NVR42V-8P Series


Name

Icon

Function

Power button



Power button, press this button for three seconds to boot up or shut down NVR.

Assistant

Fn

  • One-window monitor mode, click this button to display assistant function: PTZ control and image color.
  • Backspace function: in numeral control or text control, press it for 1.5 seconds to delete the previous character before the cursor.
  • In motion detection setup, working with Fn and direction keys to realize setup.
  • In text mode, click it to switch between numeral, English character (small/capitalized) and etc.
  • In HDD management interface, you can click it to switch HDD record information and other information (Menu prompt)
  • Realize other special functions.

USB2.0 port

To connect USB2.0 storage device, USB2.0 mouse, burner and etc.

IR receive window

It is to receive the IR signal from the remote control.

Power indicator light

Power indicator light.

HDD abnormal indicator light

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Network abnormal indicator light

Network error occurs or there is no network connection, the light becomes red to alert you.

Alarm indicator light

The light becomes on when an alarm occurred.
