People Counting

Description

This article will show you how to use the People Counting feature

How To Setup People Counting - NewGUI - 12.jpg


Prerequisites

  • Supported device with People Counting feature

Video Instructions

Step by Step Instructions

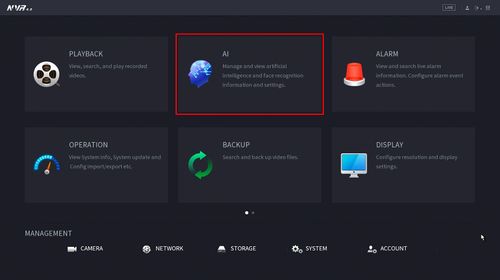

1. From the Main Menu click AI

How To Create Face Database - NewGUI - 1.jpg

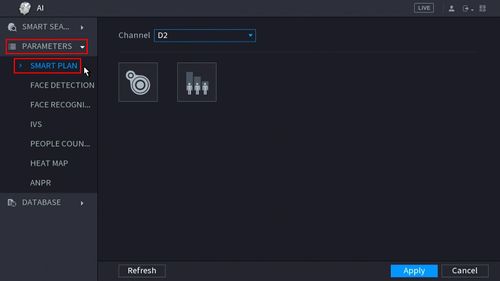

2. Click Parameters > Smart Plan

How To Setup People Counting - NewGUI - 1.jpg

3. Click the People Counting icon to enable.

How To Setup People Counting - NewGUI - 2.jpg

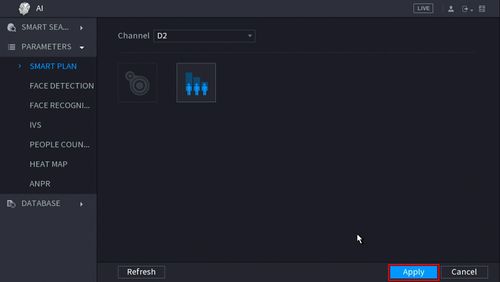

4. The icon will turn blue when selected.

Click Apply to save

How To Setup People Counting - NewGUI - 3.jpg


5. Click Parameters > People Counting

How To Setup People Counting - NewGUI - 4.jpg

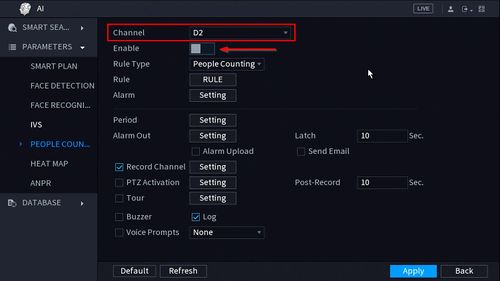

6. Use the drop-down box to select the channel.

Click the toggle button to enable

How To Setup People Counting - NewGUI - 5.jpg

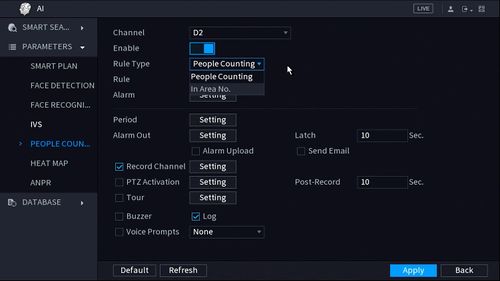

7. Use the drop-down box next to Rule Type to select from the People Counting feature options. There are two options:

  • People Counting
  • In Area No.

How To Setup People Counting - NewGUI - 6.jpg

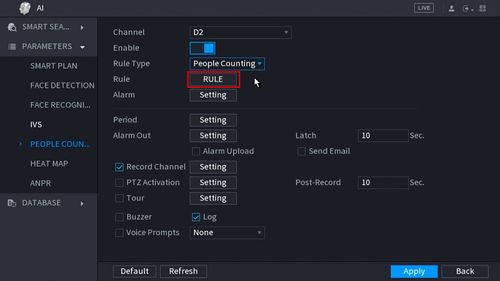

8. Click the RULE button to create the area and rule for the People Counting

How To Setup People Counting - NewGUI - 7.jpg

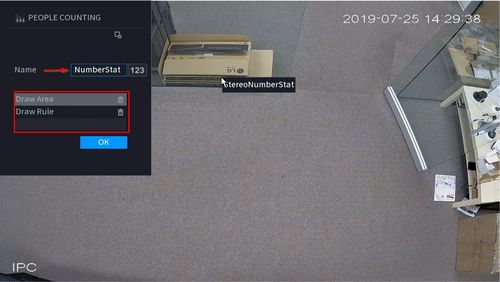

9. You can enter a name for the rule in the Name field

Click Draw Area or Draw Rule to create/edit the current rules.

Click the Trash icon.jpg icon to delete the rule.

How To Setup People Counting - NewGUI - 8.jpg

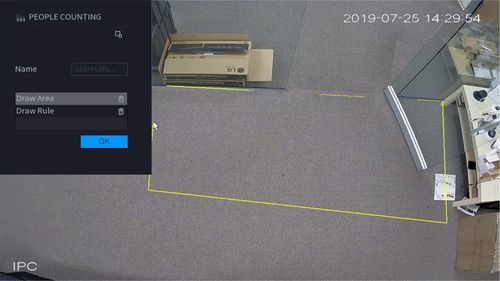

10. To create the detection area start by clicking 'Draw Area' then left click and drag in the video frame to draw the area.

How To Setup People Counting - NewGUI - 8-1.jpg


How To Setup People Counting - NewGUI - 8-2.jpg


Right click to complete the drawing

11. To create the detection line start by clicking 'Draw Rule' then left click and drag in the video frame to draw the line.


How To Setup People Counting - NewGUI - 8-4.jpg

The arrow in the line will denote which direction will count as a 'Enter' or 'Exit'

Draw the arrow from Left to Right

To create a Downward facing arrow

How To Setup People Counting - NewGUI - 8-5.jpg

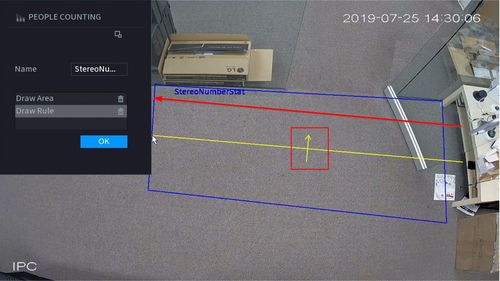

Draw the arrow from Right to Left

To create an upward facing arrow

How To Setup People Counting - NewGUI - 8-6.jpg

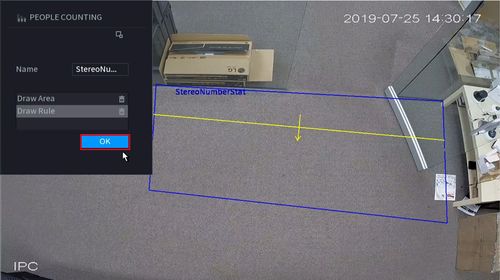

12. Click OK to save the Area and Rule Drawings

How To Setup People Counting - NewGUI - 8-7.jpg

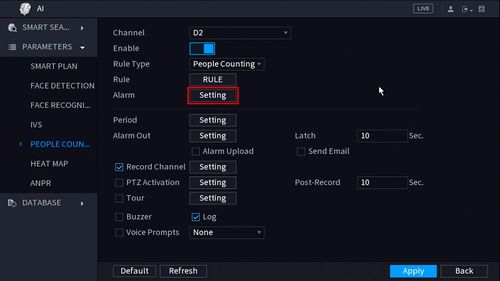

13. Click 'Setting' next to Alarm to configure additional settings for People Counting

How To Setup People Counting - NewGUI - 9.jpg

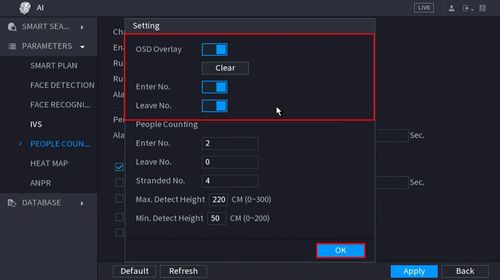

14. Use the top part of the menu to configure the settings for the On Screen Display Overlay for People Counting

How To Setup People Counting - NewGUI - 10.jpg

OSD Overlay: Toggle to enable or disable overlay. Press the 'Clear' button to clear the current People Counting values

Enter No.: Toggle to enable or disable the overlay for counting people who Enter

Leave No.: Toggle to enable or disable the overlay for counting people who Leave

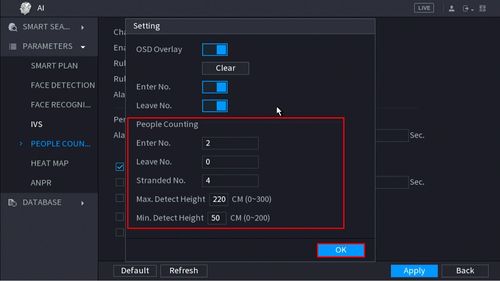

15. Use the lower part of the menu to configure the parameters for the People Counting alerts and installation configuration

How To Setup People Counting - NewGUI - 11.jpg


Enter No. - Alarm will trigger when this # of people are counted who Enter

Leave No. - Alarm will trigger when this # of people are counted who Leave

Stranded No.

Max Detect Height (in cm)

Min. Detect Height (in cm)

Click OK once all parameters have been set

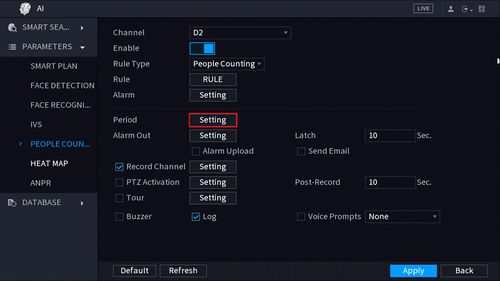

16. To create a schedule for People Counting click the 'Setting' button next to Period

How To Setup People Counting - NewGUI - 13.jpg

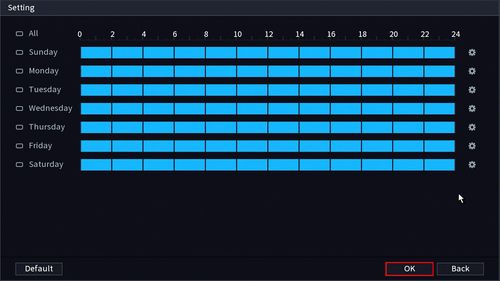

17. Use the interface to create a schedule for People Counting

How To Setup People Counting - NewGUI - 14.jpg

Click OK once the schedule has been completed

By default it will count 7 days a week, 24 hours a day

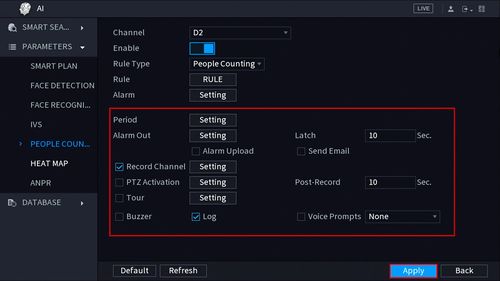

18. Configure the alarm output for when the People Counting alarms are met (Enter/Exit Number, Stranded)

How To Setup People Counting - NewGUI - 15.jpg

Click Apply once parameters have been set

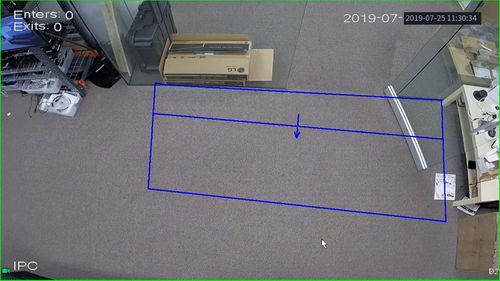

Completed People Counting setup with On Screen Display enabled at Live View

How To Setup People Counting - NewGUI - 12.jpg
