PTZ Pattern Setup

HDCVI Pattern Tutorial

Description

How To Dewarp set up a pattern for your PTZ

Step by step instructions From Web Browser

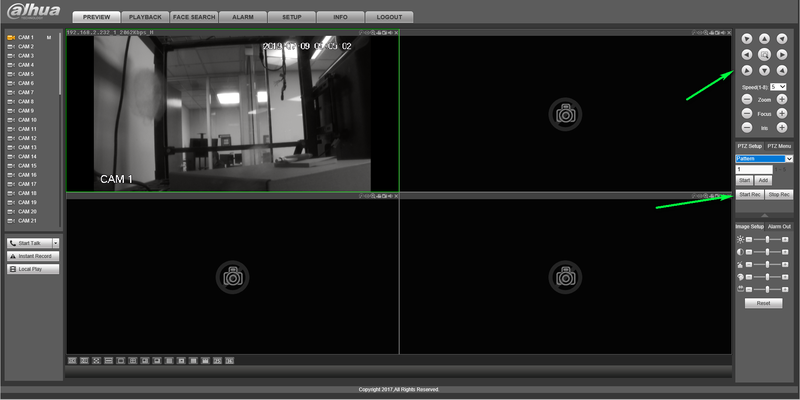

1.Log into your device from its IP address in your web browser

2.Select the down arrow to expand your PTZ Control Menu


3.Select Pattern from the drop down menu


4.Select Start Record


5.Using the Arrows on the PTZ menu Draw the pattern you wish your PTZ to follow

6.Select Stop Record

Your pattern should now be applied to the Pattern number selected.

Step By Step Instructions From local Monitor

1.Log into your DVR

2.Right click and select PTZ from the drop down menu


3.Click the arrow on the right hand side to expand the menu


4.Click Aux Config from the icon shown below

Selectmore.png 1

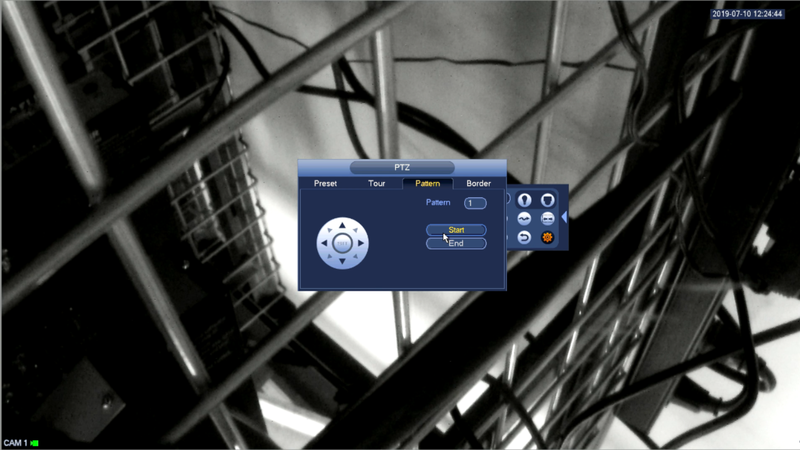

5.Select Pattern

6.Select start and use the arrows to create the desired pattern


7.Select End to complete your pattern
