SMD/Smart Motion Detection

SMD banner.jpg

SMD - Smart Motion Detection
Set Up Set Up SMD Privacy Mask (optional)
Playback
Setup SMD in the NVR interface

> How To Setup SMD
Add a privacy mask to obscure a portion of the video

> How to Setup SMD Privacy Mask
Playback SMD Events through the NVR

> How to Playback SMD Events

What is SMD?

Smart Motion Detection (SMD) uses an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected.

What are the benefits of SMD?

  • False Alarm Filter
  • Quick Target Search
  • Alarm Visualization
  • Real-time Alarm Push


SMD supported device

NOTE: SMD is not supported in SmartPSS

Recorder Model

XVR

SMD function performed by the recorder. You can install non-SMD CVI Camera with SMD-supported XVR model to get SMD function works.

NVR

Camera Model

Devices that Have SMD menu but not working

  • X58A5S
  • X72A2A
  • X72A3A


MD vs. SMD

Object Motion Detection Smart Motion Detection
Person Alarm Alarms when Human Detected Only*
Vehicle Alarm Alarms when Vehicle Detected Only*
Pets False Alarm No Alarm
Insects False Alarm No Alarm
Extreme Weather False Alarm No Alarm
Branches & Leaves False Alarm No Alarm
  • Object will be identified when appropriate object filter has been selected.

Quick Target Search

Extract and classify person and vehicles from massive video data, easy for end users to trace historical information and analyze. Person & Vehicle optional for playback to achieve quick target search, saving event retrieval time.

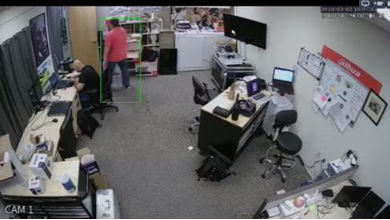

SMD Realtime Tracking

SMD Example1.png

  • SMD rule preview enables user to see the alarm more clearly
  • Real-time tracking box of SMD provides more accurate tracking effect

DMSS Alarm Push

SMD Example2.png

Newly added alarm target classification on DMSS, which shows it clearly that if there was person or vehicle trigger the MD alarm.

Video Instructions

How To: SMD Setup

How To: SMD Playback

How To: SMD Privacy Mask Setup

SMD Setup Instructions

Icon for type SystemUI New.pngSystemUI New

Prerequisites

  • Dahua device that supports SMD

Video Instructions

Step by Step Instructions

1. From Live View

Right click select Main Menu

SMD - SystemUI New - 1.jpg

2. Click Storage

SMD - SystemUI New - 2.jpg

3. Confirm the recorder is set to motion detection recording

Click Schedule

Review the on screen schedule, make sure motion detection (MD) is enabled

SMD - SystemUI New - 3.jpg

4. Click Record

Confirm the record settings are enabled for the desired streams

SMD - SystemUI New - 4.jpg

Right click to return to the Main Menu

5. Click Alarm

SMD - SystemUI New - 5.jpg

6. Click Video Detection

SMD - SystemUI New - 6.jpg

7. Motion Detect

Use the dropdown to select the channel

Click to toggle and enable the Motion detection for this channel

SMD - SystemUI New - 6-1.jpg

8. Click Apply to save

SMD - SystemUI New - 7.jpg

Right click to return to the Main Menu

9. Click AI

SMD - SystemUI New - 8.jpg

10. Click Parameters > SMD

SMD - SystemUI New - 9.jpg

11. Use the dropdown box to select the channel

Click to toggle and enable the SMD for this channel

SMD - SystemUI New - 10.jpg

12. Use the additional options to configure the parameters of SMD:

  • Sensitivity
  • Effective Target - Human, Vehicle, or Both

SMD - SystemUI New - 11.jpg

13. Click Apply to save

SMD - SystemUI New - 12.jpg

Icon for type WebUI Old.pngWebUI Old

Prerequisites

  • Dahua device that supports SMD

Video Instructions

Step by Step Instructions

1. Enter the username and password for the device

Click Login

SMD - WebUI Old - 1.jpg

2. Click Setting

SMD - WebUI Old - 2.jpg

3. Click Event > Video Detection

SMD - WebUI Old - 2-1.jpg

4. Check the box to enable the motion detection

Configure any additional motion detection parameters

SMD - WebUI Old - 2-2.jpg

5. Click Save

SMD - WebUI Old - 2-3.jpg

6. Click Event > Smart Motion Detection

SMD - WebUI Old - 3.jpg

7. Check the box to enable the Smart Motion Detection

SMD - WebUI Old - 4.jpg

8. Use the additional options to configure the parameters of SMD:

  • Effective Target - Human, Vehicle, or Both
  • Sensitivity

SMD - WebUI Old - 5.jpg

9. Click Save

SMD - WebUI Old - 6.jpg

Icon for type WebUI New.pngWebUI New

Prerequisites

  • Dahua device that supports SMD

Video Instructions

Step by Step Instructions

1. Enter the username and password for the device

Click Login

SMD - WebUI New - 1.jpg

2. Click Alarm

SMD - WebUI New - 2.jpg

3. Click Video Detection

SMD - WebUI New - 3.jpg

4. Use the dropdown box to select the channel

Check the box to enable the motion detection

SMD - WebUI New - 4.jpg

Configure any additional motion detection parameters

Click OK to save

SMD - WebUI New - 5.jpg

5. Click Management in the top left corner of the screen

Select Storage

SMD - WebUI New - 6.jpg

6. Click Record

Confirm the record settings are enabled for the desired streams

SMD - WebUI New - 7.jpg

7. Click Schedule

Review the on screen schedule, make sure motion detection (MD) is enabled

SMD - WebUI New - 8.jpg

8. Return to the menu by clicking the X next to the Storage tab at the top of the screen

SMD - WebUI New - 9.jpg

9. Click AI

SMD - WebUI New - 10.jpg

10. Click Parameters > SMD

SMD - WebUI New - 11.jpg

11. Use the dropdown box to select the channel

Check the box to enable SMD

SMD - WebUI New - 12.jpg

12. Use the additional options to configure the parameters of SMD:

  • Sensitivity
  • Effective Target - Human, Vehicle, or Both

SMD - WebUI New - 13.jpg

13. Click OK to save

SMD - WebUI New - 14.jpg
