Description

This guide will show how to setup the Abandoned Object / Missing feature at the WebUI with NewGUI

Abandoned object/missing function is used to detect if there are people, vehicle and objects abandoned or missing in some areas in the monitoring scene; it can trigger an alarm when the target object stays or is missing for a time which exceeds the desired time.

Prerequisites

Video Instructions

Step By Step Instructions

Abandoned

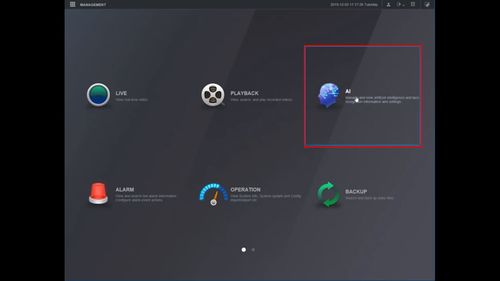

1. From the Main Menu

Click AI

Abandoned Missing - WebUI New - 1.jpg

2. Click Parameters

Abandoned Missing - WebUI New - 2.jpg

3. Click Smart Plan

Abandoned Missing - WebUI New - 3.jpg

4. Use the dropdown box to select the channel

Click the IVS icon (Lightbulb) to enable the Smart Plan

Abandoned Missing - WebUI New - 4.jpg

5. Click OK to save

Abandoned Missing - WebUI New - 5.jpg

6. Click IVS

Abandoned Missing - WebUI New - 6.jpg

7. Click the + to create a new IVS rule

Abandoned Missing - WebUI New - 7.jpg

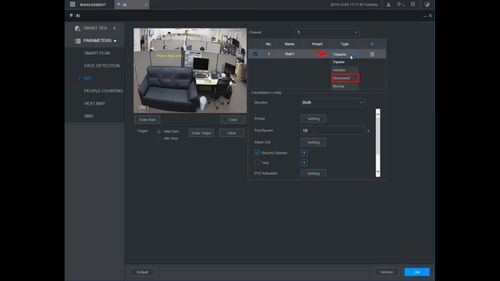

8. Use the dropdown box to change rule Type to Abandoned

Abandoned Missing - WebUI New - 8.jpg

9. Click Draw Rule to create the detection area

Abandoned Missing - WebUI New - 9.jpg

10. Left click inside the window to begin drawing the detection zone

Abandoned Missing - WebUI New - 10.jpg

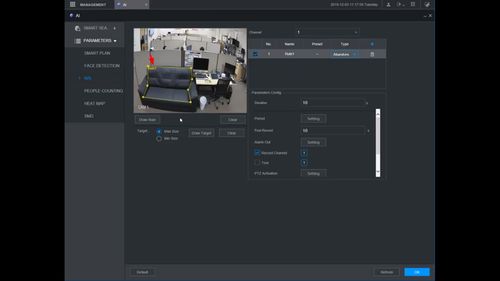

11. Right click to finish drawing the zone

The Rule name will confirm the rule has been created

Abandoned Missing - WebUI New - 11.jpg

12. Use the Target interface to adjust the Max/Min size for object detection

Abandoned Missing - WebUI New - 12.jpg

13. Click OK to save all settings

Abandoned Missing - WebUI New - 13.jpg

Missing

1. From the Main Menu

Click AI

Abandoned Missing - WebUI New - 1.jpg

2. Click Parameters

Abandoned Missing - WebUI New - 2.jpg

3. Click Smart Plan

Abandoned Missing - WebUI New - 3.jpg

4. Use the dropdown box to select the channel

Click the IVS icon (Lightbulb) to enable the Smart Plan

Abandoned Missing - WebUI New - 4.jpg

5. Click OK to save

Abandoned Missing - WebUI New - 5.jpg

6. Click IVS

Abandoned Missing - WebUI New - 6.jpg

7. Click the + to create a new IVS rule

Abandoned Missing - WebUI New - 7.jpg

8. Use the dropdown box to change rule Type to Missing

Abandoned Missing - WebUI New - 14.jpg

9. Click Draw Rule to create the detection area

Abandoned Missing - WebUI New - 15.jpg

10. Left click inside the window to begin drawing the detection zone

Abandoned Missing - WebUI New - 16.jpg

11. Right click to finish drawing the zone

The Rule name will confirm the rule has been created

Abandoned Missing - WebUI New - 17.jpg

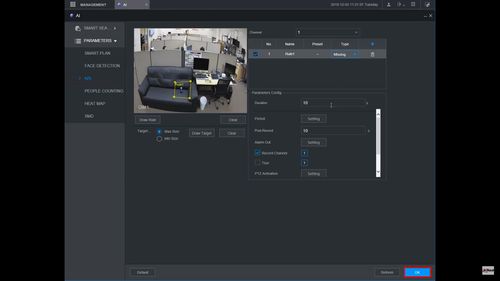

12. Click OK to save all settings

Abandoned Missing - WebUI New - 18.jpg
