How to Configure the Blackbody

Description

This article will go over how to configure the Blackbody.

Prerequisites

  • DH-TPC-BF3221-T or DH-TPC-BF5421-T Thermal Hybrid Network Camera
  • JQ-D70Z Blackbody

Video Instructions

Step by Step Instructions

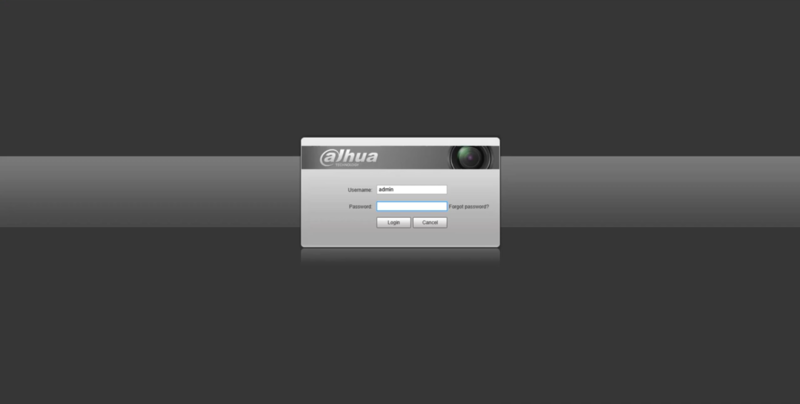

1. Login to the Thermal Camera

Configure Blackbody-1.png

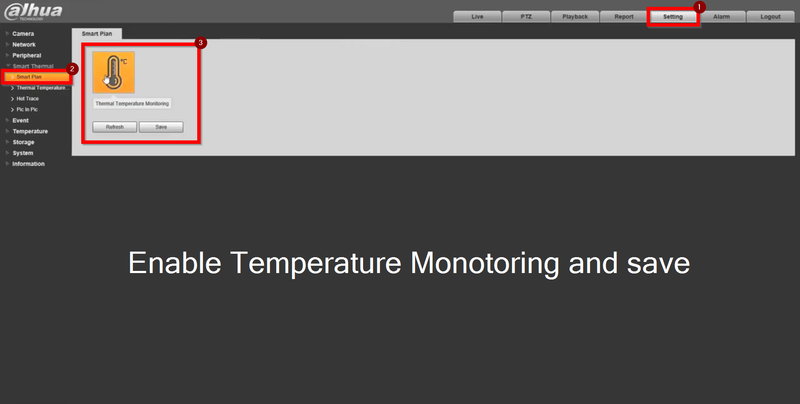

2. Go to Smart Thermal> Smart Plan> and enable Thermal Temperature Monitor. Save

Configure Blackbody-2.png

3. On the left menu tab go to Thermal Temperature>Blackbody Parameter and enable.

- Leave the black box permanently at 35°C (95°F)
- Draw the area around the inner plate of the Blackbody box for accurate readings

Thermal Monitoring Setup-4.png

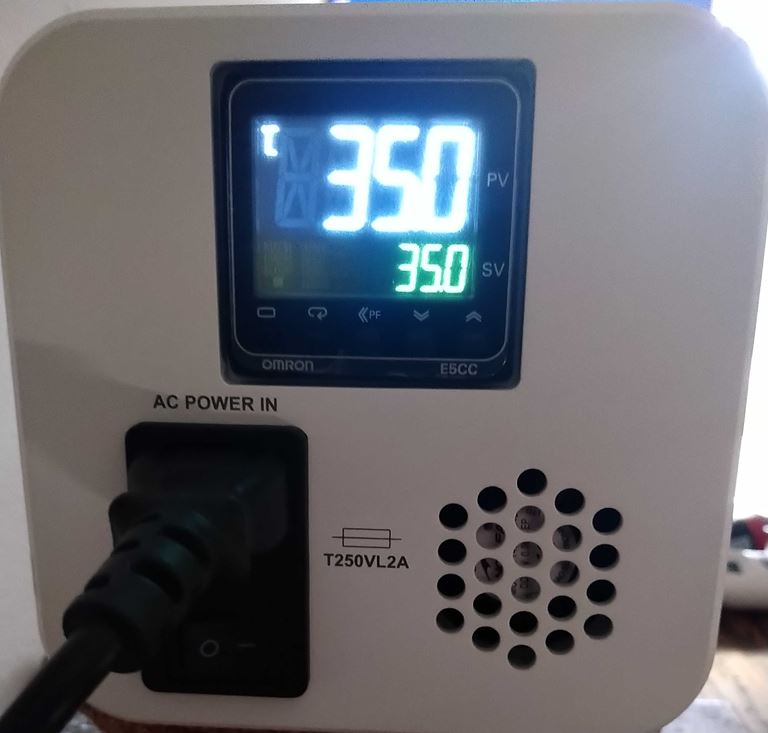

Make sure the Blackbody box is set to 35°C (95°F) to reflect the settings in the camera

Configure Blackbody-4.JPG
