Thermal/Configure Temperature Global Setup

Configure Temperature Global Setup

Description

Configure temperature measuring settings for a Dahua Thermal Camera using Temperature Global Setup

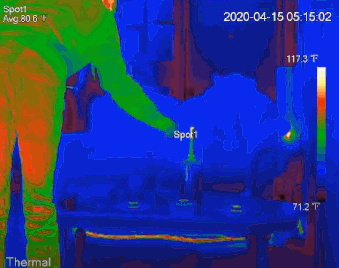

Thermal spot torch.gif

Prerequisites

  • Dahua device with Temperature function - DH-TPC-BF5400 used for guide

Video Instructions

Step by Step Instructions

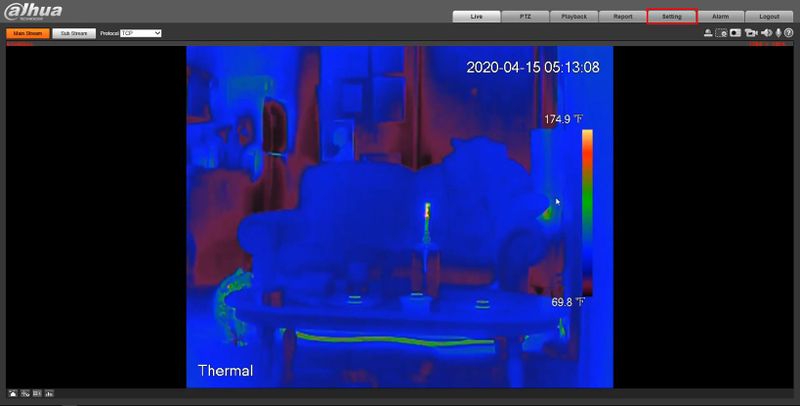

1. Enter the IP of the device into a browser (default 192.168.1.108)

At the Web Login

Enter the Username and Password

Click Login

Configure Temperature Global Setup - WebUI - 1.jpg

2. Click Temperature > Global Setup

Configure Temperature Global Setup - WebUI - 2.jpg

3. Check the box to enable Temperature Switch - to enable temperature testing rules and display them on the surveillance images

Configure Temperature Global Setup - WebUI - 3.jpg

4. Configure the global temperature setup parameters as desired. A description of each setting is below

Configure Temperature Global Setup - WebUI - 4.jpg

Global Temperature Setup Parameters (Click to expand)

Parameter Description
Temperature Switch Select the check box to enable this function
Temperature Unit Choose from Celsius (°C) and Fahrenheit (°F)
Relative Humidity Relative humidity of environment. Ranges from 0RH - 100%RH
Atmospheric Temperature Temperature of the environment. Ranges from -50 °C to 327.7 °C
Target Radiation Coefficient Set Radiation coefficient of targets that are shot by this Device.

Ranges from 0.5 - 1.

Target Distance Distance from the camera to targets that are shot.

Ranges from 0m - 10000m

Target Reflection Temperature Temperature of targets that are shot by this Device. Ranges from -50 °C to 327.7 °C

5. Configure the advanced global temperature setup parameters as desired. A description of each setting is below

Configure Temperature Global Setup - WebUI - 5.jpg

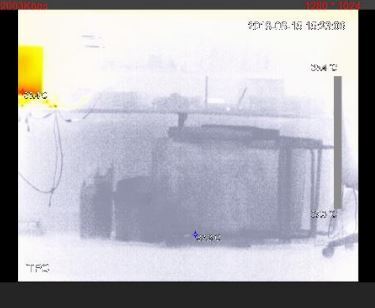

Isotherm: Used to highlight an object in images of high brightness. Isotherm is based on median temperature, with highest temperature and lowest temperature as its range. The part of an object whose temperature is higher than floor temperature will be represented in a bright color and the part of an object whose temperature is lower than floor temperature will be represented in a black/white color.

Isotherm example.jpg


Advanced Global Temperature Setup Parameters (Click to expand)

Parameter Description
Isotherm Toggle On to enable this function.
Min Limit Temperature When gain mode is under low-temperature mode, value ranges from -40 °C to 160 °C

When gain mode is under high-temperature mode, value ranges from -40 °C to 600 °C

Medium Temperature When gain mode is under low-temperature mode, value ranges from -40 °C to 160 °C

When gain mode is under low-temperature mode, value ranges from -40 °C to 600 °C

Max Limit Temperature When gain mode is under low-temperature mode, value ranges from -40 °C to 160 °C

When gain mode is under low-temperature mode, value ranges from -40 °C to 600 °C

Saturation Temperature When gain mode is under low-temperature mode, value ranges from -40 °C to 160 °C

When gain mode is under low-temperature mode, value ranges from -40 °C to 600 °C

Color Code Toggle On to enable color mode

A color code will be represented on the right side of surveillance images

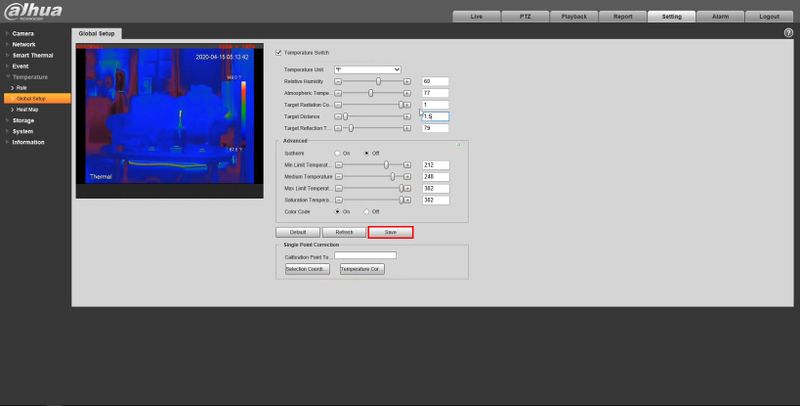

6. Click Save

Configure Temperature Global Setup - WebUI - 6.jpg
