Adjust Temp Monitoring Distance

Description

These instructions will show how to adjust the Temperature Monitoring Distance for DHI-ASI7213X-T1 through the WebUI

Prerequisites

Video Instructions

Step by Step Instructions

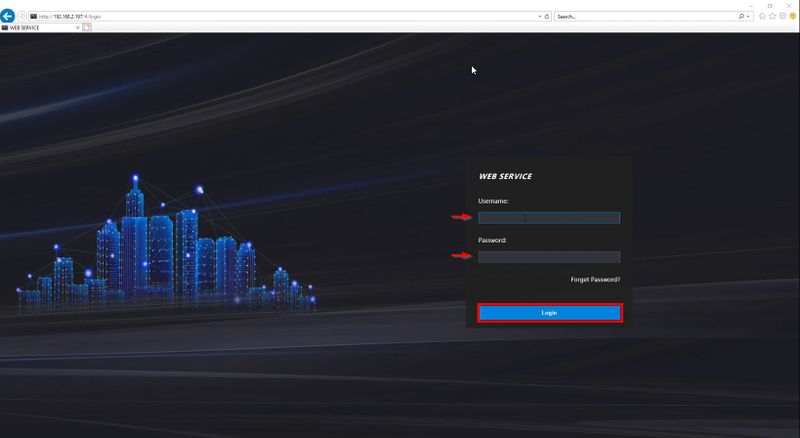

1. Enter the IP Address of the device into Internet Explorer

Enter the username/password

Click Login

Dahua Thermal Solution DHI ASI7213X T1 WebUI Set Temp Monitoring Distance - 1 .jpg

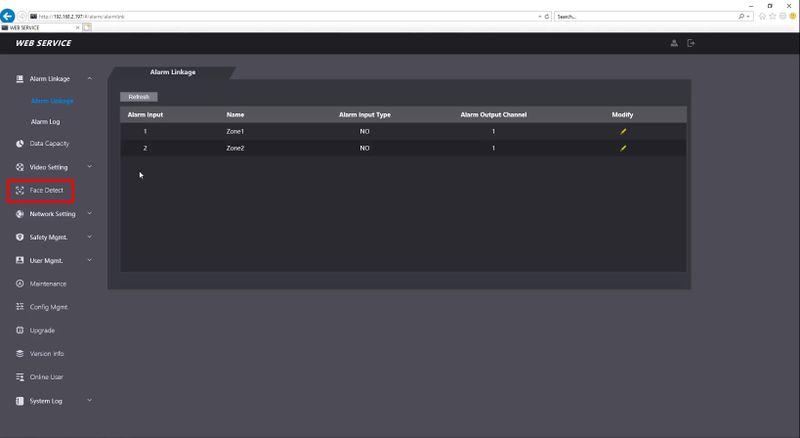

2. Click Face Detect

Dahua Thermal Solution DHI ASI7213X T1 WebUI Set Temp Monitoring Distance - 2 .jpg

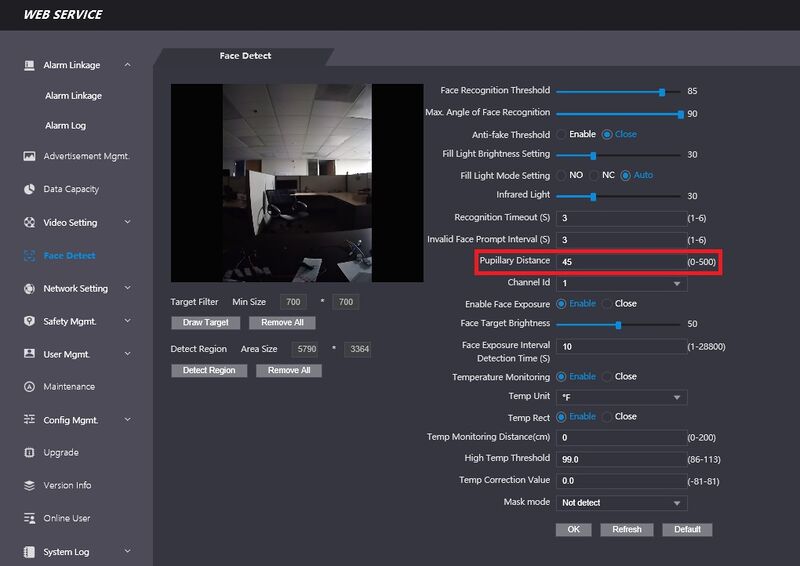

3. Enter the desired distance in Pupillary Distance, this is the perceived distance between the eyes in pixels. Use the chart to determine settings.

Dahua Thermal Solution DHI ASI7213X T1 WebUI Set Temp Monitoring Distance - 3 .jpg


Dahua Thermal Solution DHI ASI7213X T1 WebUI Set Temp Monitoring Distance - 3 2.jpg

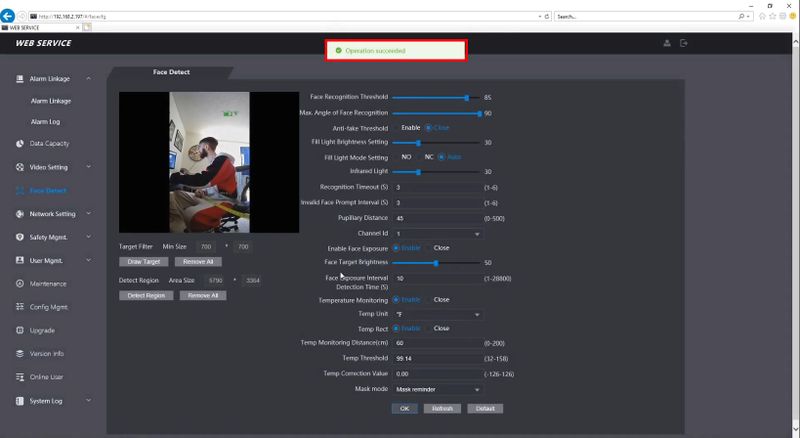

4. Click OK to save, a prompt will confirm a successful save.

Dahua Thermal Solution DHI ASI7213X T1 WebUI Set Temp Monitoring Distance - 5 .jpg
