Thermal/Temperature Monitoring/NVR Setup

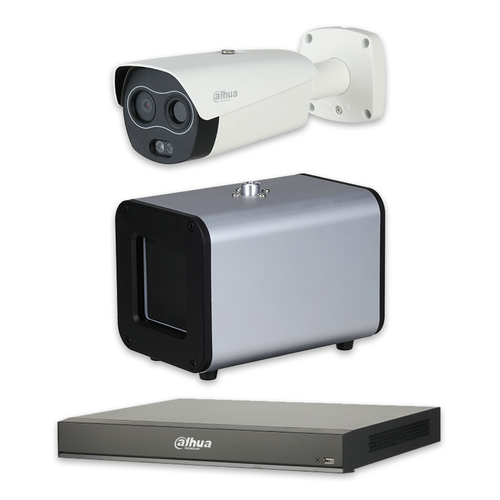

Temperature Monitoring Solution Camera & NVR Setup

caption


This guide will cover the initial NVR, camera,and Blackbody setup and Configuration for the Thermal Temperature Monitoring Solution

If you're using a stand alone Thermal Camera (not plugged directly into NVR), follow the steps to set up Thermal Monitoring solution with stand alone Thermal camera

Temperature Monitoring NVR With Camera Diagram.png

Description

This guide will cover the initial NVR, thermal camera, and Blackbody setup Configuration for the Thermal Temperature Monitoring Solution

Prerequisites

Video Instructions

NVR Initial Setup and Firmware Upgrade:

Total Setup of Thermal Solution through NVR with Camera, including Record Setup and configuration at webUI:


Step by Step Instructions

NVR Initialization

Initialize the NVR over the network using a local computer

Record Schedule Setup

Setup Video and Snapshot Recording for the Thermal Camera

From the Main Menu click Management > Camera

Temperature Monitoring - NVR Setup - 10-1.jpg

Under Registration

The thermal camera will appear in the Channel list as two channels, one for the visual channel and one for the thermal channel, in this example are Channels 1 and 2

Temperature Monitoring - NVR Setup - 10-2.jpg

Click Management > Storage

Temperature Monitoring - NVR Setup - 11.jpg

Click Schedule

Temperature Monitoring - NVR Setup - 12.jpg

Click Setting to adjust the Record schedule (when the camera will record) for the thermal camera channel

Temperature Monitoring - NVR Setup - 13.jpg

Use the interface to select the days and enter a Time Period. Select the Record type you wish to record for the camera: Alarm and IVS must be enable for the Temperature Alarm to record.

Click OK

Temperature Monitoring - NVR Setup - 14.jpg

The schedule will be updated

Temperature Monitoring - NVR Setup - 15.jpg

Click Copy

Temperature Monitoring - NVR Setup - 16.jpg

Select the other channel of the Thermal Camera (in this example Channel 2)

Temperature Monitoring - NVR Setup - 17.jpg

Click OK

Temperature Monitoring - NVR Setup - 18.jpg

Click the Snapshot tab

Temperature Monitoring - NVR Setup - 19.jpg

Configure the Snapshot schedule record settings the same way s the previous steps

Click OK to save

Temperature Monitoring - NVR Setup - 20.jpg

Click Storage > Record

Temperature Monitoring - NVR Setup - 21.jpg

Thermal Configuration

Configure the settings of the Temperature Monitoring Solution

1. From the Main Menu of the webUI select AI

Temperature Monitoring - NVR Setup - Thermal Setup 1.jpg

2. Click Parameters > Smart Plan

Use the dropdown to select the Thermal Channel

Temperature Monitoring - NVR Setup - Thermal Setup 2.jpg

3. Click to enable the Thermal Temperature Monitoring Smart Plan

Temperature Monitoring - NVR Setup - Thermal Setup 3.jpg

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 4.jpg

Return to the Main Menu by closing the AI tab (clicking X)

Temperature Monitoring - NVR Setup - Thermal Setup 4-1.jpg

4. Click Alarm

Temperature Monitoring - NVR Setup - Thermal Setup 5.jpg

5. Click Thermal Alarm

Use the dropdown to select the Thermal Channel

Temperature Monitoring - NVR Setup - Thermal Setup 6.jpg

Select Thermal Temperature Monitoring

Temperature Monitoring - NVR Setup - Thermal Setup 7.jpg

6. Check the box to enable feature

Check the box to enable desired camera hardware response on alarm:

  • Camera Audio - audio from camera speaker
  • White Light - light from camera

Temperature Monitoring - NVR Setup - Thermal Setup 8.jpg

To record Alarms, check the box next to Record Channel and select which channel(s) to record

Temperature Monitoring - NVR Setup - Thermal Setup 9.jpg

Click More Setting

Temperature Monitoring - NVR Setup - Thermal Setup 10.jpg

Check to enable Alarm Upload

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 11.jpg

Set temperature values for the alarm to trigger

5. Click Setting next to Anatomy Temperature Alarm Rule

Temperature Monitoring - NVR Setup - Thermal Setup 12.jpg

Check the box to enable Temperature report - this will report/display all temperature values

Check the box to enable High Temperature Alarm - an alarm will be sent when the temperature is higher than or equal to this value

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 13.jpg

Draw Rule for Detection Region

By default the entire camera frame will be set as the detection region

1. Click Clear to default the Rule

Click Draw Rule

Temperature Monitoring - NVR Setup - Thermal Setup 14.jpg

2. Left click inside the frame to begin drawing the detection zone.

Temperature Monitoring - NVR Setup - Thermal Setup 15.jpg

Click and drag to draw lines to complete a square/box

Temperature Monitoring - NVR Setup - Thermal Setup 16.jpg

Complete:

Temperature Monitoring - NVR Setup - Thermal Setup 17.jpg

This detection zone will be the blue box displayed in Live View interface:

Temperature Monitoring - NVR Setup - Thermal Setup 18.jpg

Blackbody Setup

1. From Main Menu click Alarm > Thermal Alarm

  • Use the dropdown box to select the Thermal channel
  • Use the dropdown to select Blackbody Error

Temperature Monitoring - NVR Setup - Thermal Setup 19.jpg

2. Check the box to Enable

Temperature Monitoring - NVR Setup - Thermal Setup 20.jpg

The default Blackbody rule will be displayed on screen as a blue box

Temperature Monitoring - NVR Setup - Thermal Setup 21.jpg

Click to drag the box to position

Temperature Monitoring - NVR Setup - Thermal Setup 22.jpg

Click the corners to adjust the size of the box

Temperature Monitoring - NVR Setup - Thermal Setup 23.jpg

Click Setting next to Blackbody Parameter to adjust the settings of the Blackbody

Temperature Monitoring - NVR Setup - Thermal Setup 24.jpg

Check the box to Enable

Enter desired Blackbody parameters (leave at default for most scenarios)

Blackbody temperature should be set to 95 F / 35 C

Temperature Monitoring - NVR Setup - Thermal Setup 25.jpg

Click OK to save

Temperature Monitoring - NVR Setup - Thermal Setup 26.jpg

Additional Alarm Parameters

Select which Channel(s) will be recorded as a video

Check to enable Picture Storage for snapshot/images taken during event

Temperature Monitoring - NVR Setup - Thermal Setup 27.jpg

2. Click More Setting

Temperature Monitoring - NVR Setup - Thermal Setup 27-1.jpg

Check the box next to Alarm Upload

Select any other desired Alarm parameters:

Click OK

Temperature Monitoring - NVR Setup - Thermal Setup 27-2.jpg

Click OK to save all settings

Temperature Monitoring - NVR Setup - Thermal Setup 28.jpg

Event Verification

Live View will display the detection zone and Blackbody reference

Temperature Monitoring - NVR Setup - Thermal Setup 29.jpg

Once configuration is complete, go to Live interface to verify temperature measurement

Temperature Monitoring - NVR Setup - Thermal Setup 30.jpg

Live View (at local interface/monitor) will show the detection zone and blackbody reference

Live View (Right click > AI Mode enabled)

  • Temperature detection value will appear
  • Statistics will be displayed in top right of screen
  • Live events will populate the right side of the screen

Temperature Monitoring - NVR Setup - Thermal Setup 31.jpg

  • Check measurement value on screen

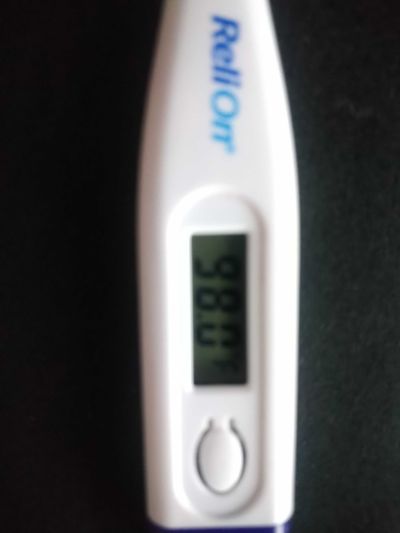

  • Compare it with the value on another device for temperature, such as thermometer:

Temp check with thermometer.JPG


Thermal Camera Configuration: (click to expand each section)


Check latest firmware and upgrade

Open smart thermal of human body temperature measurement

==Set Smart Thermal Plan==


Enable the Smart Thermal Smart Plan for the Thermal Camera

  • Log into Camera

Click Setting

Temperature Monitoring - Camera Configuration - 1.jpg

Click Smart Thermal > Smart Plan

Temperature Monitoring - Camera Configuration - 2.jpg

Click the Smart thermal icon.jpg icon to enable the plan.

Click Save

Temperature Monitoring - Camera Configuration - 3.jpg

Set rules of human temperature measurement

Set Rules Of Human Temperature Measurement

Configure the parameters for the Human Temperature Measurement

  • Log into Camera

Click Setting

Temperature Monitoring - Camera Configuration - 1.jpg

Click Smart Thermal > Thermal Temperature Monitoring

Temperature Monitoring - Camera Configuration - 4.jpg

Check the box to enable human temperature measurement

Temperature Monitoring - Camera Configuration - 5.jpg

Check the box to enable Temperature report - this will report/display all temperature values

Temperature Monitoring - Camera Configuration - 6.jpg

Check the box to enable High Temperature Warning - an alarm will be sent when the temperature is higher than or equal to this value

Temperature Monitoring - Camera Configuration - 7.jpg

Click Draw Rule to configure the rule box

Temperature Monitoring - Camera Configuration - 8.jpg

Left click inside the frame to draw the box

Temperature Monitoring - Camera Configuration - 9.jpg

Completed

Temperature Monitoring - Camera Configuration - 10.jpg

Click Save

Temperature Monitoring - Camera Configuration - 11.jpg

Set blackbody parameters

Set Blackbody Parameters

Configure the parameters for the Blackbody device for Human Temperature Measurement

  • Log into Camera

Click Setting

Temperature Monitoring - Camera Configuration - 1.jpg

Click Smart Thermal > Thermal Temperature

Select the Blackbody parameter tab

Temperature Monitoring - Camera Configuration - 12.jpg

Check the box to enable

Temperature Monitoring - Camera Configuration - 13.jpg

Click inside the video frame to select the green rule box

The rule needs to be drawn along the bold highlighted edge, just surrounding the highlighted area of the blackbody

Temperature Monitoring - Camera Configuration - 14.jpg

Left click to drag and move the box and click the corners to resize the box

Temperature Monitoring - Camera Configuration - 15.jpg

Click Save

Temperature Monitoring - Camera Configuration - 16.jpg

Example of properly configured Blackbody box:

Blackbody complete setup.png]

Configure Advanced/Other Settings

Configure Advanced/Other Settings

Configure advanced/other parameters for the camera for Human Temperature Measurement

  • Log into Camera

Click Setting

Temperature Monitoring - Camera Configuration - 1.jpg

Click Smart Thermal > Thermal Temperature

Click the Smart Channel tab

Select which channel is used for Intelligent analysis

For normal scenes Visual channel is used to detect faces by default

For some scenes such as dark or with backlight environment, Thermal channel can be used

Snap Angle Filter - larger the value, easier it is to capture the side face

For example , when value is 1 , only the front face can be detected

Temperature Monitoring - Camera Configuration - 17.jpg

Click Save

Check environment temperature

Check Environment Temperature

If the default temperature parameters are not accurate this situation will affect the human body temperature measurement.

If human body temperature is inaccurate, try the following steps:

Step 1 - Ambient temperature

  • Log into Camera
    • Setting > Smart Thermal > Human temperature measurement > Others

Temperature Monitoring - Camera Configuration - 19.jpg

  • Use thermometer to detect the real ambient temperature on site and enter the number

Temperature Monitoring - Camera Configuration - 21.jpg

Temperature Monitoring - Camera Configuration - 22.jpg

  • Click Save

Step 2 - Human temperature correction

  • Use a thermometer to detect the real Human body temperature:


Calculate the difference between real Human body temperature and measure the temperature from the thermal camera, enter this value in Human Temperature correction field.

Smart Thermal > Human Temperature Monitoring > Blackbody parameter:

Temperature Monitoring - Camera Configuration - 24.jpg

For example: real Human body temperature is 98.6F (37C), measure temperature in thermal camera is 100F (37.8C)

Human Temperature correction should be 98.6 - 100 = -1.4

Click Save

Event Verification

Event Verification

Once configuration is complete, go to Live interface to verify temperature measurement

  • Log into Camera
  • Check measurement value on screen

Temperature Monitoring - Camera Configuration - 23.jpg

    • Compare it with the value on the frontal temperature gun, thermometer ( if available)
