DH-HAC-HDBW12A0EN-2.8MM, 3.6MM, 6MM

DH-HAC-HDBW12A0EN-2.8MM, 3.6MM, 6MM HACHDBW12A0EN.jpg
Series: Lite
Image Sensor: 1/2.7" 2MP CMOS
Lens: 3.6MM, 6MM, 8MM
Resolution: 1080P
H Field of View: 89.9°(59.4°/41.4°)
Day/Night: ICR
Min. Illumination: 0.02Lux/F2.0, 0Lux IR on
Max. IR Range: 30m, Smart IR
OSD Menu: -
WDR: -
Noise Reduction: 2D
FPS: 30fps@1080P
Video Output: HD
Audio In: -
Alarm In: -
Alarm Out: -
Pan/Tilt/Rotation: 0°~355°/0°~65°/0°~355°
IP Rating: 67
IK Rating: 10
Working Temp: -30°C~+60°C
Power: DC12V±20%; Max 3.5W
Firmware: URL

Features

  • 1/2.7" 2Megapixel CMOS
  • 25/30fps@1080P
  • High speed, long distance real-time transmission
  • Day/Night(ICR), AWB, AGC, BLC, 2DNR
  • 3.6mm fixed lens (6mm, 8mm optional)
  • Max. IR LEDs length 30m, Smart IR
  • IP67, IK10, DC12V

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA136PFA136
Accessories Combo 2 PFB203WPFB203W
Accessories Combo 3 PFA136PFA136 PFA150PFA150
Accessories Combo 4 PFB203WPFB203W PFA152PFA152
Accessories Combo 5 PFA136PFA136 PFA151PFA151

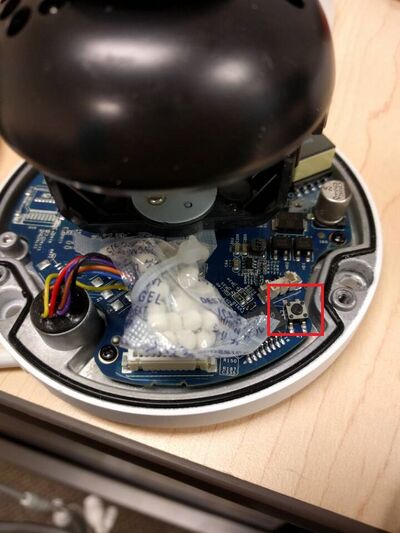

Reset Button

HDBW1300EN reset button.jpg

Specifications

Model DH-HAC-HDBW12A0EP DH-HAC-HDBW12A0EN
Camera
Image Sensor 1/2.7" 2Megapixel CMOS
Effective Pixels 1930(H)×1088(V)
Electronic Shutter 1/50s~1/100,000s 1/60s~1/100,000s
Video Frame Rate 25fps@1080P 30fps@1080P
Synchronization Internal
Mini. Illumination 0.02Lux/F2.0, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length 30m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D
Lens
Focal Length 3.6mm (6mm, 8mm optional)
Angle of View H: 89.9º(59.4º/41.4º)
Mount Type M12
General
Power Supply DC12V±20%
Power Consumption Max 3.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP67 & IK10
Dimensions(W×D×H) Φ109.9mm×81.0mm
Weight 0.3kg
Material Metal
