NVR/Basic Setup/Dual HDMI

2 HDMI Function Setup

Click Here to Download PDF Document

Advanced Dual HDMI Setup

Note: These features only apply to the following systems:

  • NVR608R-64-4K
  • NVR608-64-4K,NVR608-128-4K
  • NVR608R-128-4K
  • NVR616-64-4K
  • NVR616-128-4K
  • NVR616R-64-4K
  • NVR616R-128-4K
  • NVR616D-64-4K
  • NVR616D-128-4K
  • NVR616DR-128-4K
  • NVR616DR-64-4K

Video Instructions

Step by Step Instructions

Step 1. Log in to WebService.

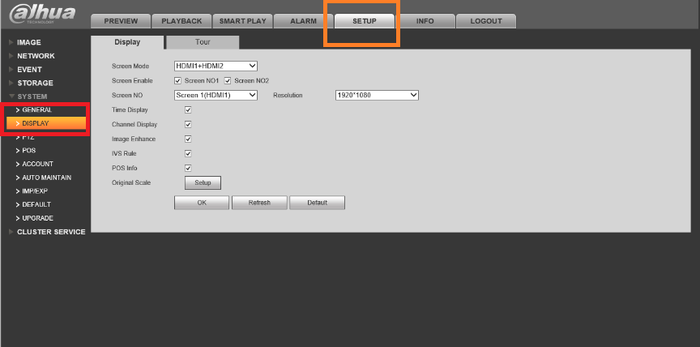

Step 2. Select Set up tab → Display

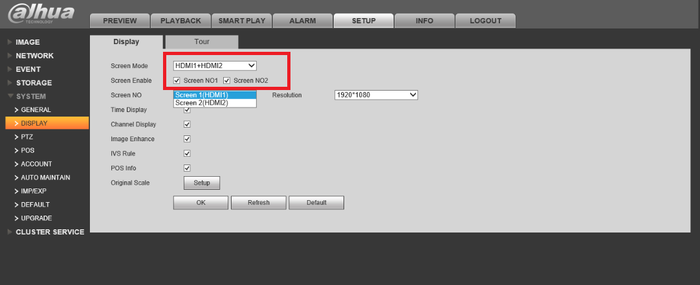

Step 3. Select HDMI 1 + HDMI 2 → Check screen enable 1 and 2. Note : This will only show as a selection if you have both HDMIs 1 and 2 plugged into 2 monitors

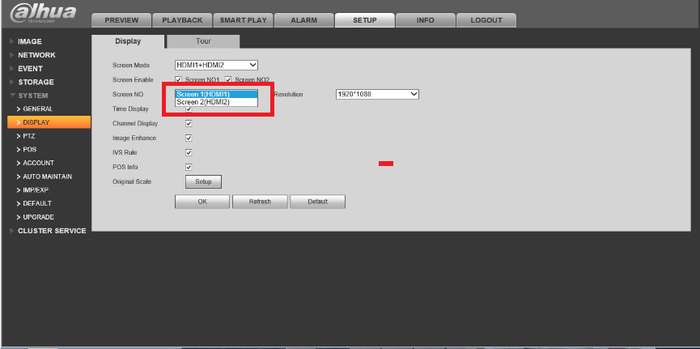

Step 4.Select screen 1 or 2 . This will determine which screen will show features like IVS Rule, POS info etc.



Step 5. Select what you would like displayed on the secondary monitor → Select "OK"


2 HDMI Tour Setup

You can set one of the HDMIs as a dedicated tour.

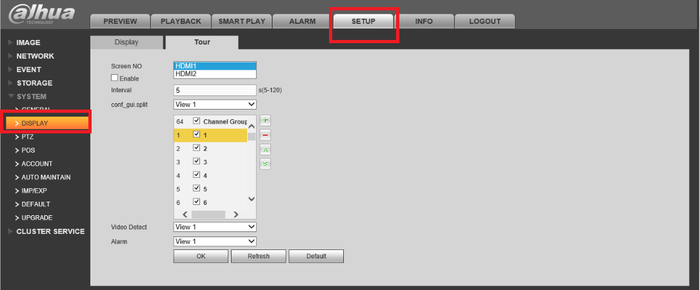

Step 1. Select Set Up → Select Display.

Dual tour 7.png

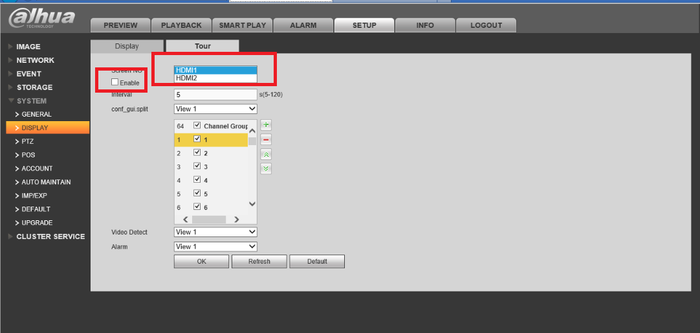

Step 2. Check Enable → Select Screen.

Dual tour 4.png

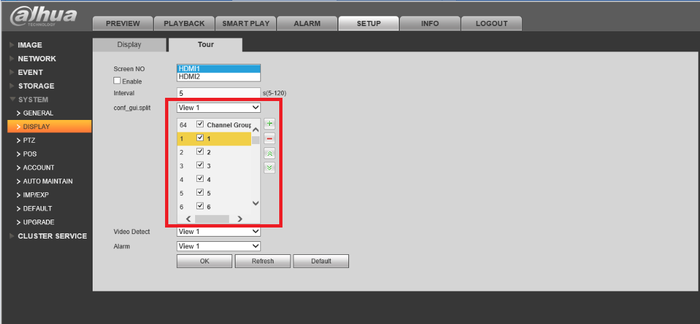

Step 3. Select a View for split view → Select which channels you want in this view.

Dual tour 5.png

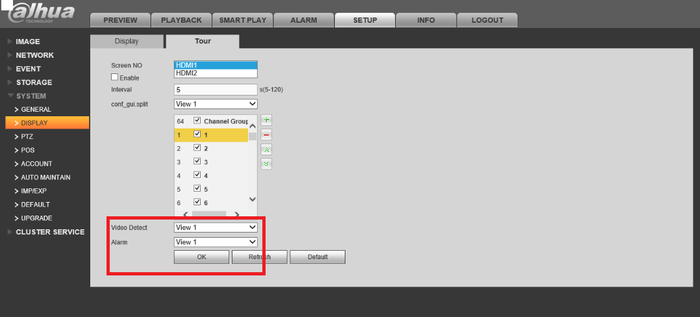

Step 4. Select a view for video detect → Select a view for alarm → Click "OK" to save.

Dual tour 6.png


Dual HDMI Setup

Note: These features only apply to the following systems:


  • DHI-NVR4208-8P-4K
  • DHI-NVR4216-4K
  • DHI-NVR4216-8P-4K
  • DHI-NVR4232-16P-4K
  • DHI-NVR4232-4K
  • DHI-NVR4232-8P-4K
  • DHI-NVR4408-4K
  • DHI-NVR4408-8P-4K
  • DHI-NVR4416-16P-4K
  • DHI-NVR4416-4K
  • DHI-NVR4432-16P-4K
  • DHI-NVR4432-4K
  • DHI-NVR4808-4K
  • DHI-NVR4816-16P-4K
  • DHI-NVR4816-4K
  • DHI-NVR4832-16P-4K
  • DHI-NVR4832-4K
