How to Setup a Toshiba Point of Sale with a DHI-NVR6A08-32-4K

Description

In this article, we will go over how to setup a DHI-NVR6A08-32-4K with a Toshiba Point of Sale using the LAN and IP network to transmit receipt information to a video feed on the NVR.

Prerequisites

  • DHI-NVR6A08-32-4K
  • Toshiba Point of Sale System
  • Firmware 1: DH_NVR6XX-4KS2_Eng_V3.210.0003.0.R.160608
  • Firmware 2: CONFIG_NVR6000__Res.160723
  • NetAssist running on a Windows PC

Video Instructions

Step by Step Instructions

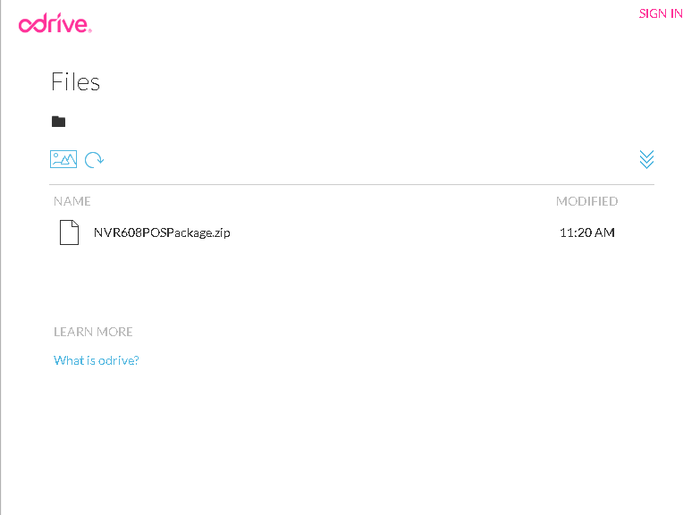

1. Click this link to download the software package.

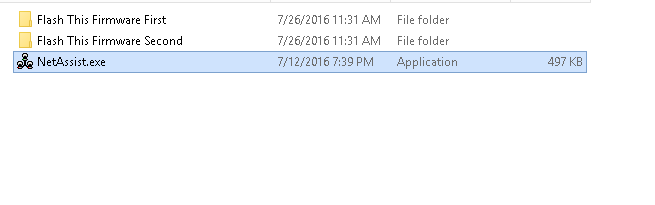

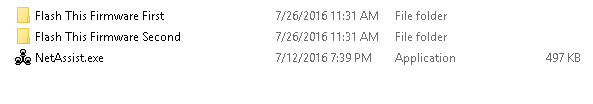

2. Once downloaded, create a folder and extract the contents of the zip file. You should end up with a folder like the below image:


3. Locate the NVR on the network and login to the NVR using Internet Explorer. Instructions for locating your NVR can be found Here

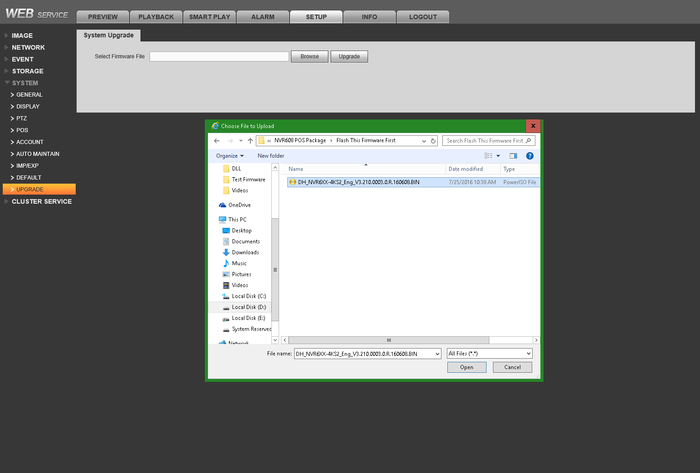

4. Update the firmware using the firmware located in the folder titled, "Flash This Firmware First." Alternatively, you can update the firmware using one of the below methods:

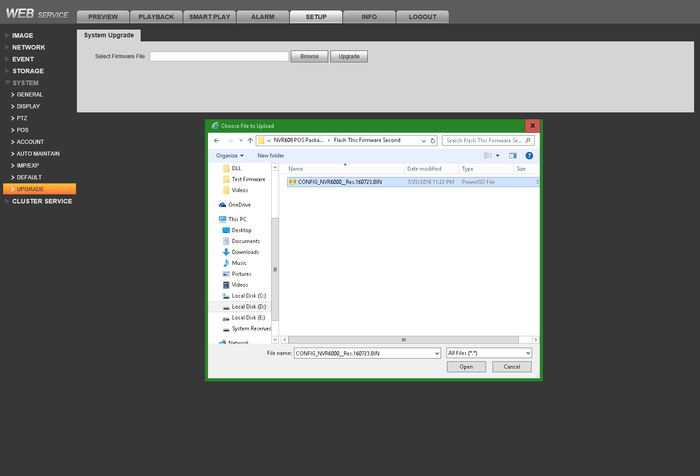

5. Once the update is complete, the system will reboot. Login to the NVR again, and apply the second firmware update to the system. The firmware is located in a folder called, "Flash This Firmware Second"

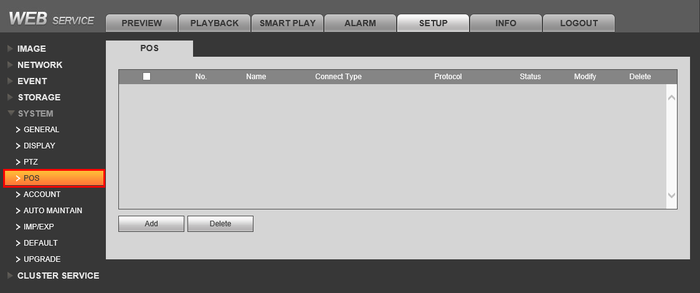

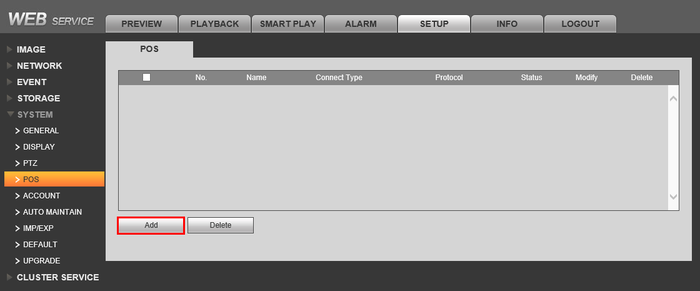

6. Once the second firmware is applied, the system will reboot. Login to the system and navigate to, Setup->System->POS


7. Click, "Add"

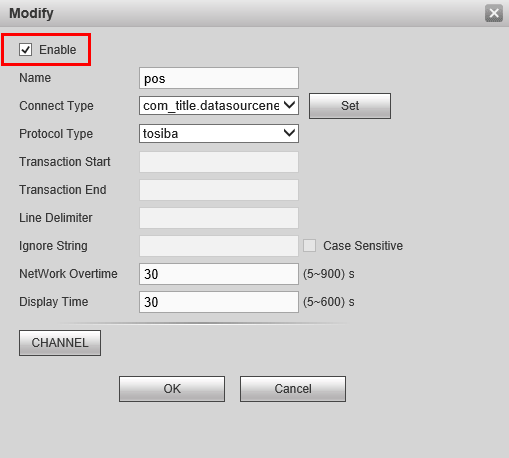

8. Check the box to the left of, "Enable"

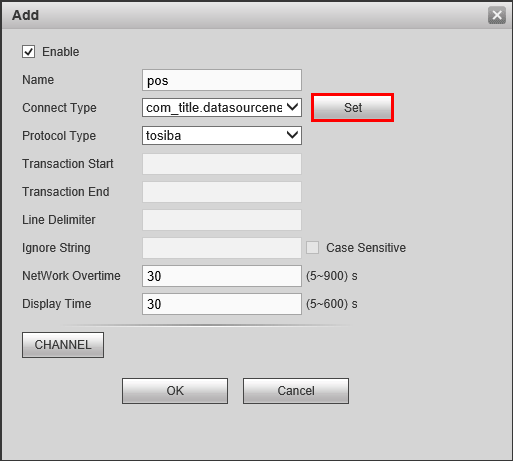

9. Click, "Set" to the right of "Connect Type"

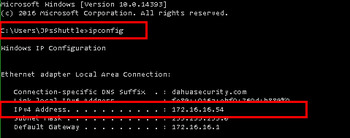

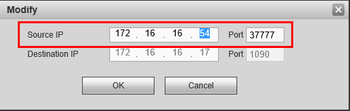

10. Input your POS or PC's IP address. This is the IP address of the system running the "NetAssist.exe" application.

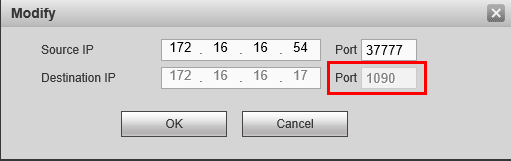

11. Note the, "Destination IP" port, and click, "OK"

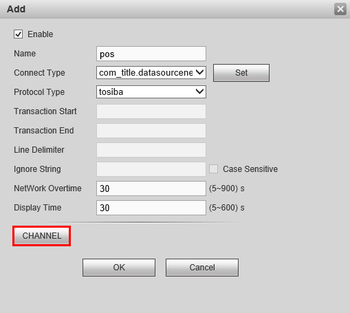

12. Click, "Channel" to assign the channel that will display the Point of Sale information. Click, "OK" twice and exit the NVR menus.

POSHowTo11.png POSHowTo12.png

13. Launch, "NetAssist.exe" from your PC.

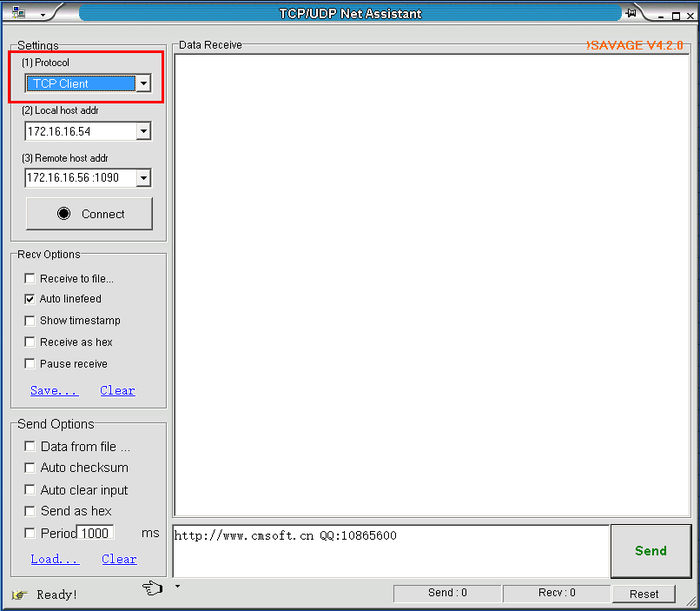

14. On the left hand side, change the, "Protocol" to "TCP Client"

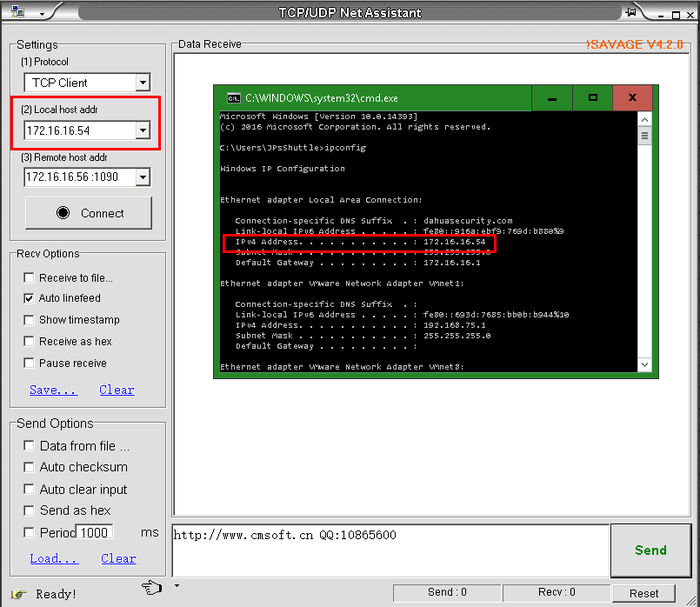

15. Set the, "Local host addr" to the local IP address of your computer.

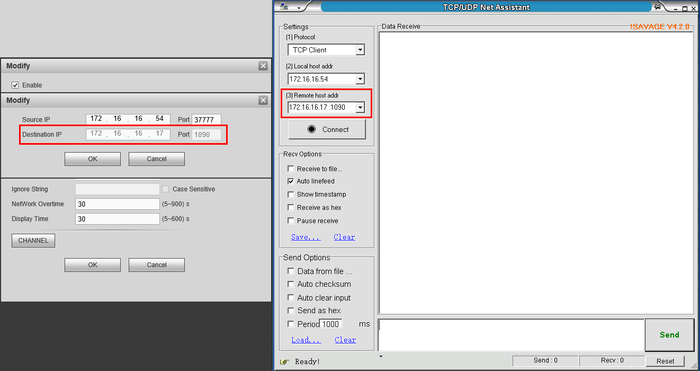

16. Set the, "Remote host addr" to the IP address of your NVR, colon then the port we identified earlier in the NVR menus.

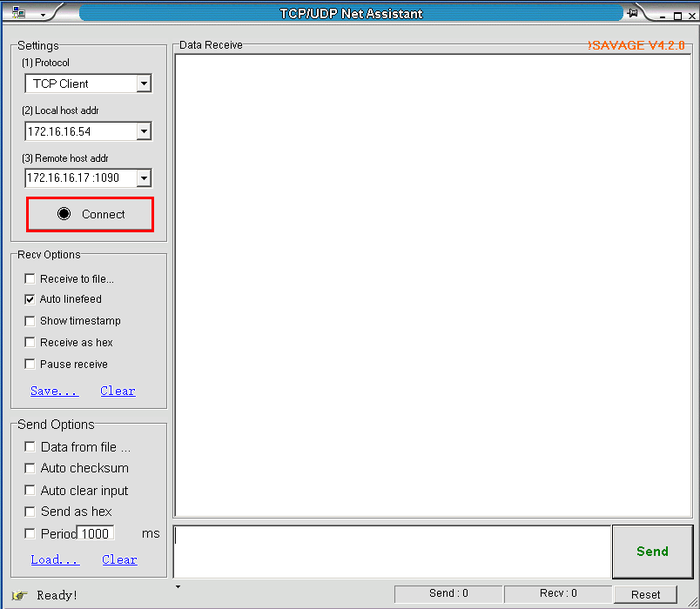

17. Click, "Connect"

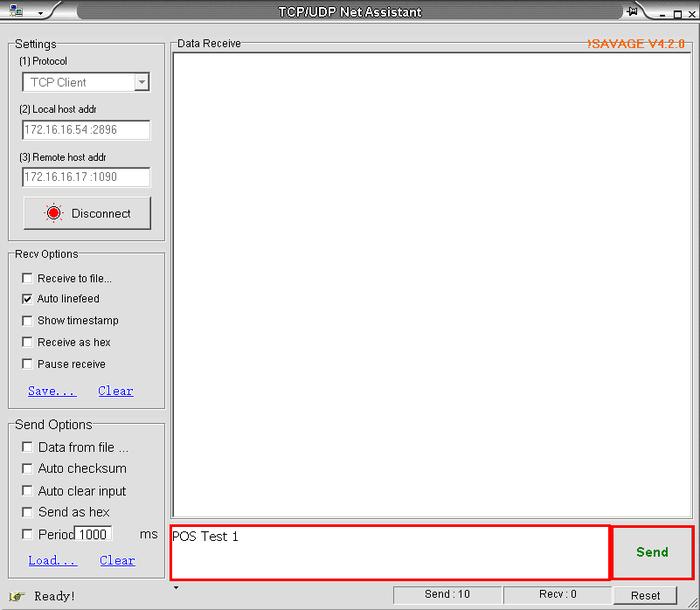

18. Input some example text in the bottom box, and hit, "Send"

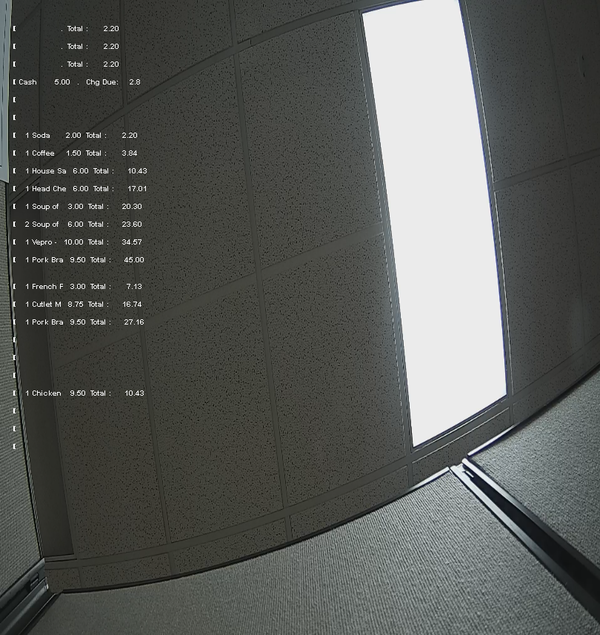

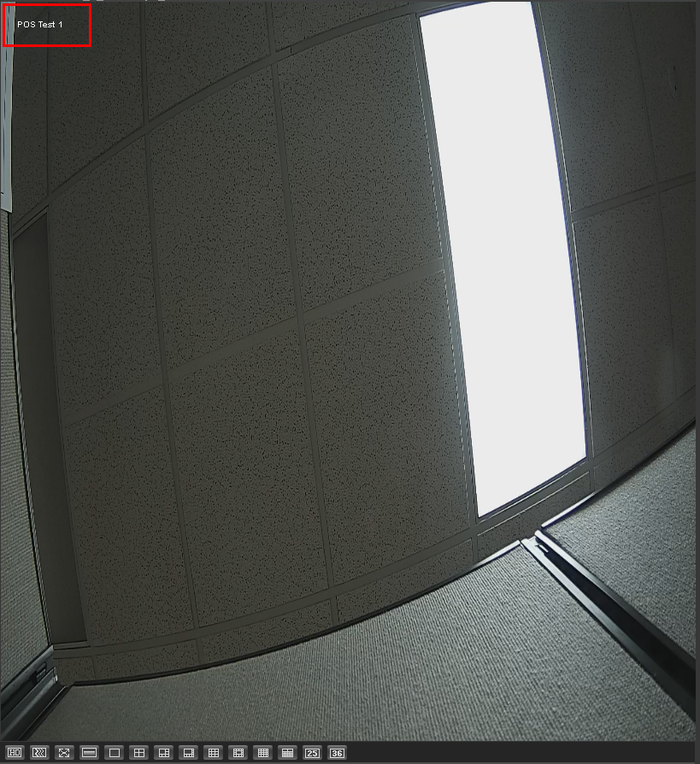

18. The text should appear on the video feed assigned in the NVR.


19. The last step is to configure your Point of Sale to the PC's local IP address and port. This can be done with a serial connection or via IP.

Example of Working Setup

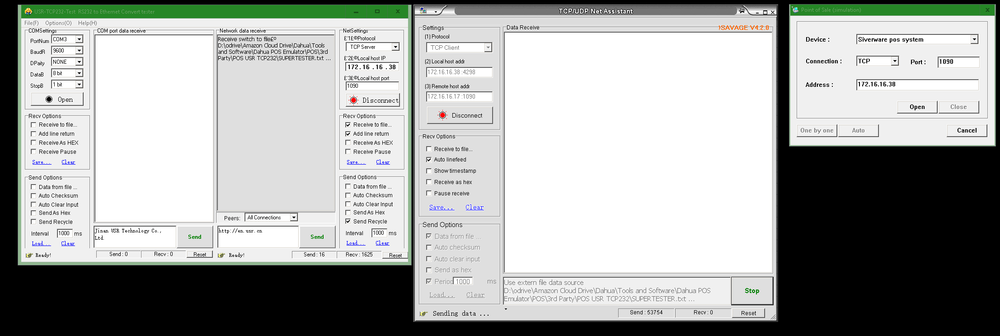

Below is an example image of a POS simulator, Net Assist operating as the client, and USR-TCP232-Test functioning as the TCP Server.
